80 PLUS® TITANIUM
The highest efficiency certificate available
Dark Power Pro 12 1500W is certified with 80 PLUS Titanium and an energy efficiency rating of up to 94.9%. This provides lots of benefits for your high-end system, including less power consumption and an overall cooler and quieter operation. The standby drain is below 0.1 watts.
WORLD CLASS POWER REGULATION
Fully digital control
The fully digital control (PFC, LLC, SR/12V) results in higher efficiency, better regulation and lower ripple noise. This guarantees an incomparably stable operation. Due to the digital concept the Dark Power Pro 12 can reach a great efficiency over the complete power range, even at low load.
FRAMELESS SILENT WINGS FAN
Patented fan technology for virtually inaudible operation
The be quiet! Silent Wings fan mounted on a tripod enables maximum airflow and a virtually inaudible operation at ordinary loads. This is thanks to its unique, airflow-optimized fan blade design along with an advanced fluid-dynamic bearing and 6-pole fan motor for less vibration, super-long life and minimal power consumption.
INNOVATIVE COOLING CONCEPT
For a longer lifespan
The split fan inlet of the Dark Power Pro 12 1500W is a specially-shaped funnel that increases airflow while reducing unwanted turbulence. The wire-free design inside allows the cool air to reach all components flawlessly which ultimately leads to a longer lifespan.
READY FOR OVERCLOCKING
Pushing the performance of your PSU to the max
Dark Power Pro 12 1500W is particularly suitable for overclocking, thanks to its strong and stable 12V rails. The overclocking key empowers you with full control for overclocking by manually switching between the default six 12V-rail mode and the alternative massive single-rail operation.
MAXIMUM CONVENIENCE

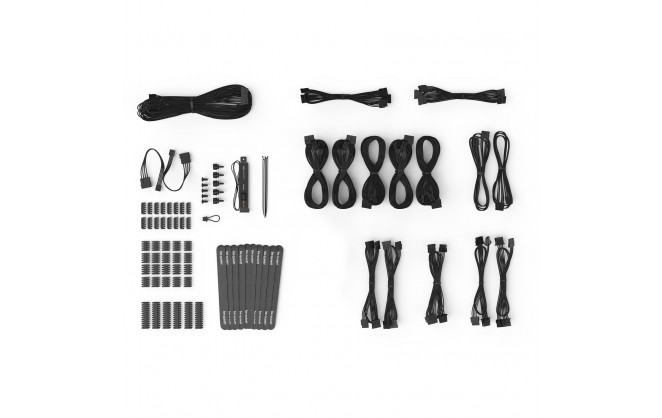

Modular cables
The maximum utility afforded by modular single-sleeved cables of up to 120cm simplifies component installation and reduces annoying clutter. This results in increased airflow and improved cooling in even the largest PC cases.
STATE-OF-THE-ART DIGITAL TECHNOLOGY
Rock-steady signal stability and efficiency
Experience the most technologically advanced power supply be quiet! has ever built! Using an advanced digital full bridge, LLC and Synchronous Rectifier (SR) technology it provides unmatched signal stability and unbeatable power efficiency. It is also equipped with DC-to-DC conversion for tight voltage regulation, even under heavy cross-loading conditions. This ensures reliable operation for the next generation of processors and graphics cards.
JAPANESE 105° CAPACITORS
A testament to high quality
Only the best components are used in Dark Power Pro 12 1500W. That is why we have built exclusively high-quality Japanese capacitors into the PSU chassis. They are rated to 105°C which ensures stability, reliability and a long operating life.
MAGNIFICENT APPEARANCE
Larger cooling area and new visual aspects
The all-new PSU front and the redesigned funnel-shaped opening uphold the high air circulation abilities. In combination with the individually sleeved cables, the high-quality aluminum case on the outside and the high-end components on the inside make the Dark Power Pro 12 shine from every possible angle.

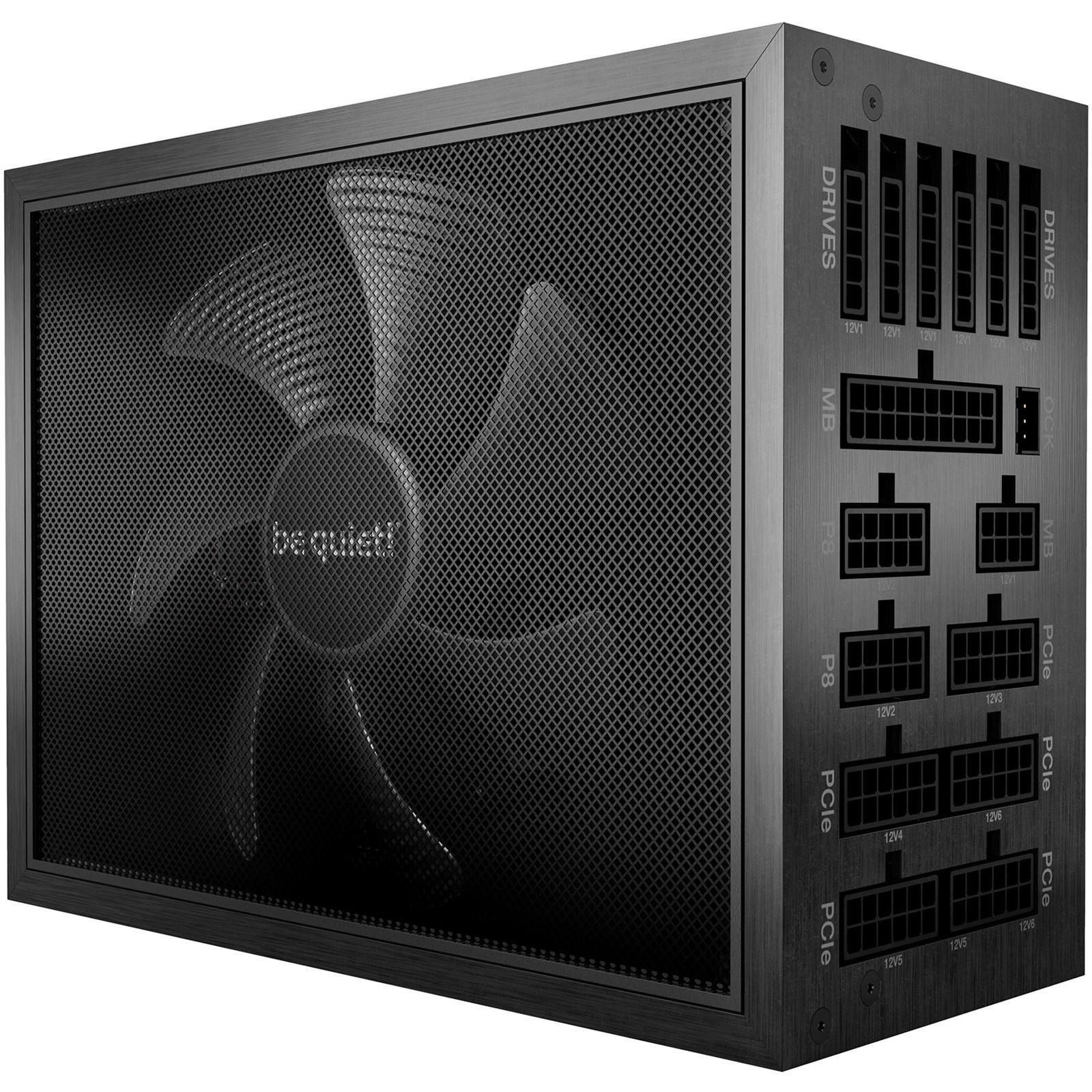

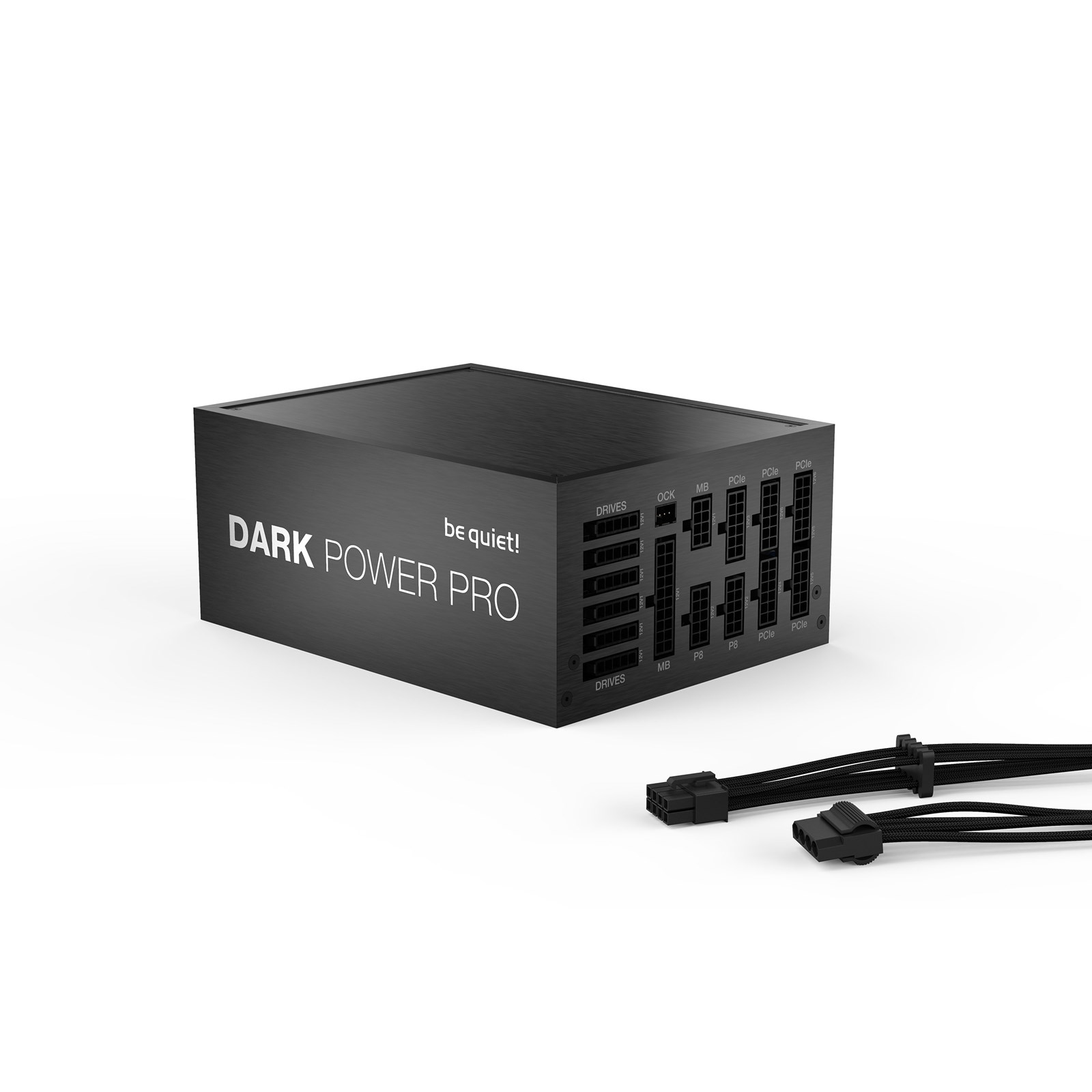

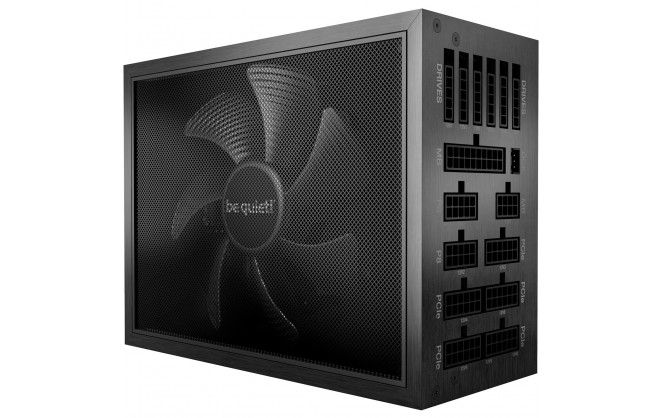

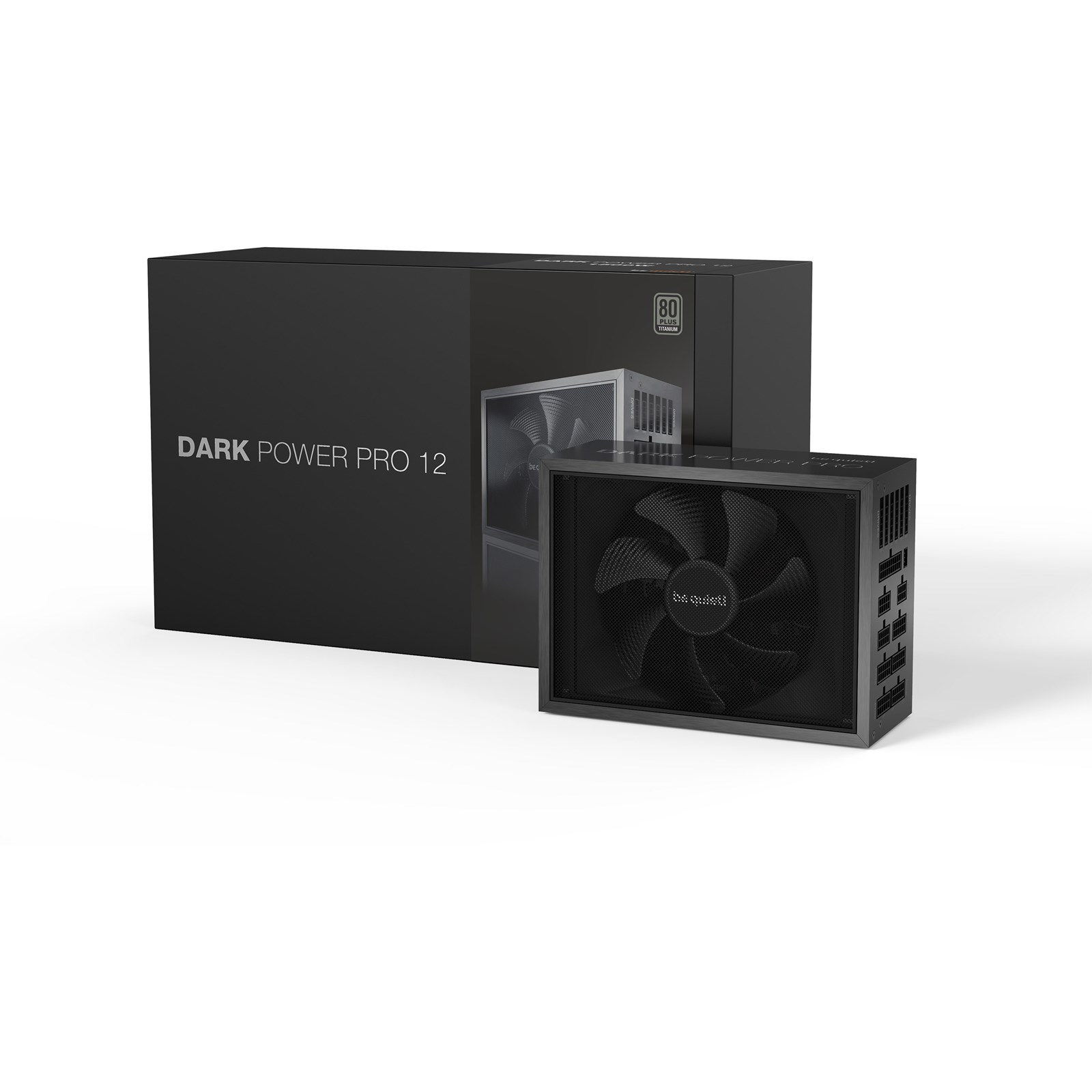

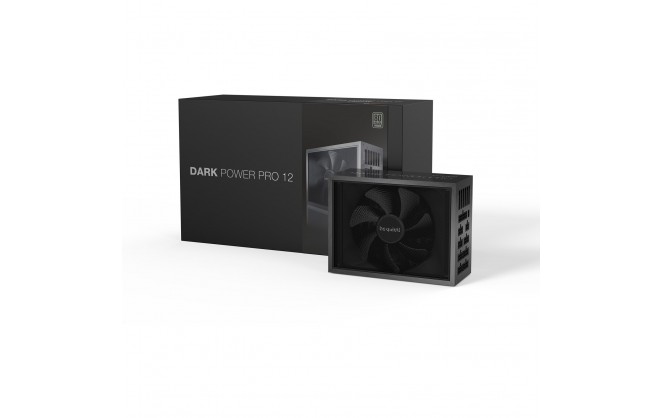

Be Quiet! Dark Power Pro 12 1500W Modular PSU
Interfaces/Ports
| SATA Connectors | 16 |
| CPU Connectors | 1 x 8-pin EPS 1 x 4+4-pin EPS |
| PCI Connectors | 10 x 6+2-pin PCIe |
| Motherboard Connectors | 1 x 20+4-pin ATX |
| Molex Connectors | 8 |
| Floppy Connectors | 2 x Floppy |
Compliance
| Standards | 80 PLUS Titanium Certified CE, CB, TUV, FCC, cTUVus, BSMI, CCC, Energy Star 7, ErP, WEEE, RoHS |
| Safety | OCP, OVP, UVP, SCP, OTP, OPP |
Electrical
| Voltage | 100 ~ 240 V |
| Power | 1500 W |
| Frequency Range | 50 ~ 60 Hz |
| Power Cord | No |
Environmental
| Operating Temperature | Up to 50 °C |
Physical
| Form Factor | ATX Power Supply |
| Case Colour | Black |
| In The Box | Power Supply Thumb Screws Screws Cable Ties Velcro Cable Ties Bag for spare cables User Manual OCK Slot Bracket with Switch/Jumper |
| Width | 150 mm |
| Depth | 200 mm |
| Height | 86 mm |
| Weight | 2.44 kg |
Warranty
| Warranty | 10 Years |
Key Features
| Modular Cables | Modular |
| 80Plus Rated | 80 Plus Titanium |
| PSU Form Factor | ATX |
| PCI-E Connectors | 10 |
| Floppy Connector | 2 |
| Motherboard Power Connectors | 4 + 4 + 8-Pin |
| PCI-E Pin Type | 6+2-Pin |
| PSU Depth | 200 mm |
| ETA Efficiency Cert. | A |
| Lambda Noise Cert. | A- |
Item Details
| Manufacturer | Be Quiet! |
| Manufacturer Code | BN312 |
| EAN | 4260052187432 |
| Condition | New |
