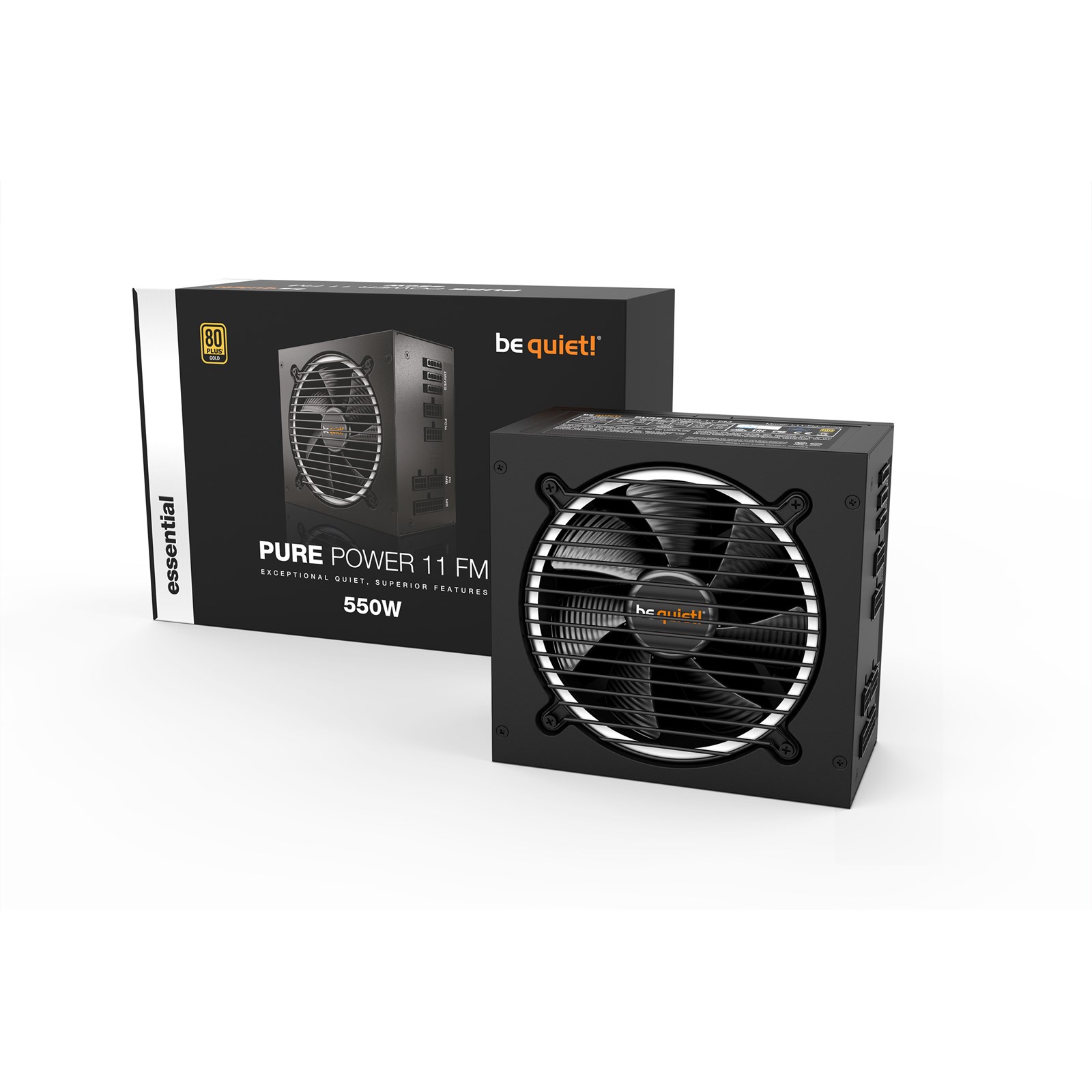

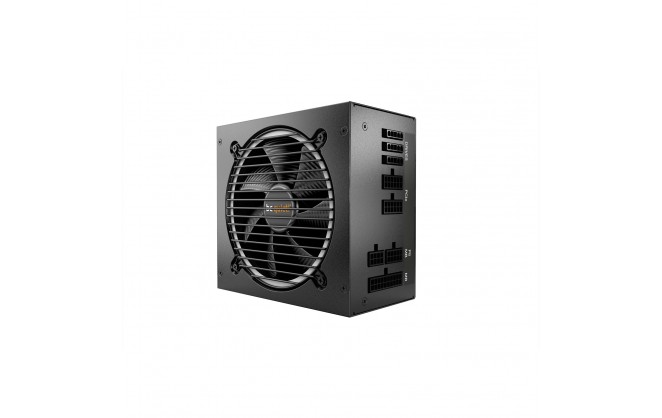

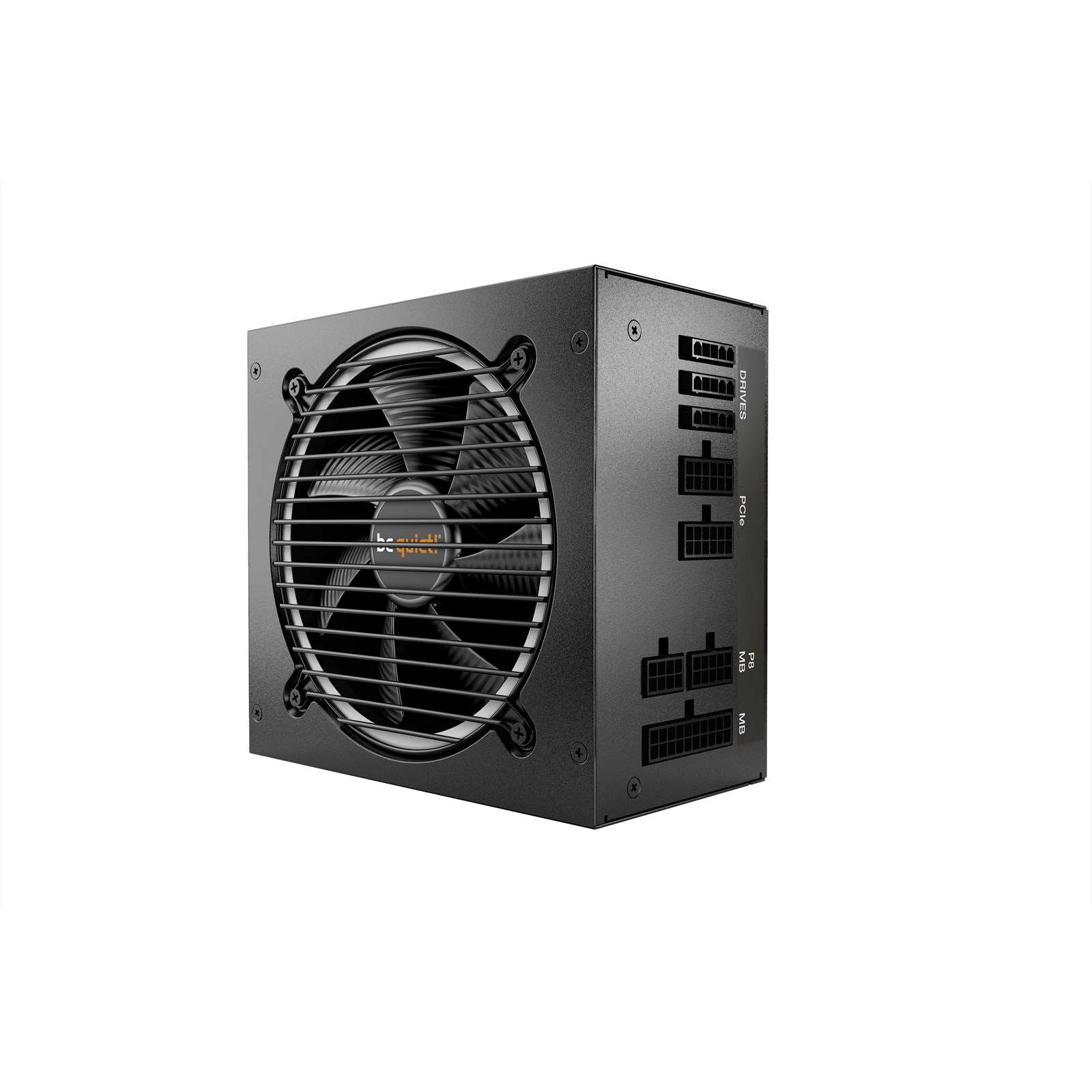

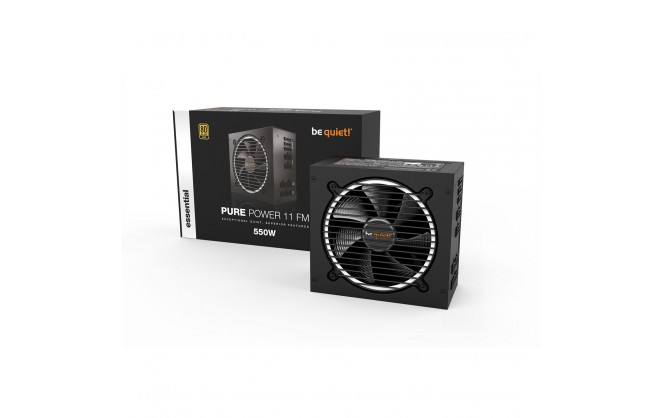

Be Quiet! Pure Power 11 FM 550W Modular PSU

Part Number: BN317
Manufacturer: BeQuiet!
Quickfind Code: 140183

Stock: In Stock

£69.99 ex. vat
£83.99 inc. vat

Product Features:

Condition: New
Capacity 550W
Connection Fully Modular
Form Factor ATX
Certification 80+ Gold
Main Colour Black

+ Read More Information

Product Description

Pure Power 11 FM 550W offers peerless dependability and best-in-class features such as modular cable management. Whether you are assembling a very quiet system, upgrading your PC, or building a gaming system with a powerful high-end GPU: Pure Power 11 FM 550W offers the best combination of features at a very popular price.

80 PLUS® GOLD CERTIFICATION

Very high operating efficiency

Pure Power 11 FM 550W is certified 80 PLUS Gold with an efficiency rating of up to 93.5% – a truly outstanding level for this class of PSU. The most compelling benefit: lower power consumption and consequently lower costs, and cooler, quieter operation.

MODULAR CABLES

Utmost convenience and compatibility

Thanks to the modular cables, all cables that serve no purpose in the system are left out. For this reason, systems always appear very tidy. At the same time installation is performed much more conveniently. A smoother airflow results from the uncluttered layout of the system, which means lower noise and temperatures prevail inside the case.

POWER AND COMPATIBILITY

for your system

Pure Power 11 FM offers 550W of continuous power with two independent 12V rails for signal stability and two PCI express connectors to support powerful graphics cards.

EXCEPTIONALLY SILENT OPERATION

Achieved by a silence-optimized 120mm be quiet! fan

The silence-optimized 120mm be quiet! fan is thermally governed to strike the best balance between effective cooling and quietness. Airflow-optimized fan blades reduce turbulence, enabling best-in-class quiet functionality and the almost inaudible operation that be quiet! is famous for.

HIGH-CLASS TECHNOLOGIES

Compatibility for the systems of tomorrow

The use of LLC and Synchronous Rectifier (SR) provides very stable operation and enhanced voltage regulation. The PSU is equipped with DC-to-DC conversion for tight voltage regulation even under heavy cross-loading conditions. This ensures reliable operation with the next generation of processors and graphics cards.

Main Features

80 PLUS Gold efficiency (up to 93.5%)
Modular cables for maximum build flexibility
Two strong 12V-rails
Silence-optimized 120mm be quiet! fan
Advanced stability and voltage regulation thanks to LLC, SR and DC-to-DC
Full suite of top safety features
Five-year manufacturer's warranty

Technical Specification

Be Quiet! Pure Power 11 FM 550W Modular PSU

Interfaces/Ports

SATA Connectors	9
CPU Connectors	1 x 4+4-pin EPS
PCI Connectors	2 x 6+2-pin PCIe
Motherboard Connectors	1 x 24-pin ATX
Molex Connectors	2
Floppy Connectors	1 x Floppy

Compliance

Standards	80 PLUS Gold Certified CE, CB, TUV, FCC, cRUus, cTUVus, RCM (Australia), BSMI, CCC
Safety	OCP, OVP, UVP, SCP, OTP, OPP

Electrical

Voltage	100 ~ 240 V
Power	550 W
Frequency Range	50 ~ 60 Hz
Power Cord	No

Environmental

Operating Temperature

0 ~ 40 °C

Physical

Form Factor	ATX Power Supply
Case Colour	Black
In The Box	Power Supply Screws Cable Ties User Manual
Width	150 mm
Depth	160 mm
Height	86 mm
Weight	1.45 kg

Warranty

5 Years

Key Features

Modular Cables	Modular
80Plus Rated	80 Plus Gold
PSU Form Factor	ATX
PCI-E Connectors	2
Floppy Connector	1
Motherboard Power Connectors	4 + 4-Pin
PCI-E Pin Type	6+2-Pin
PSU Depth	160 mm
