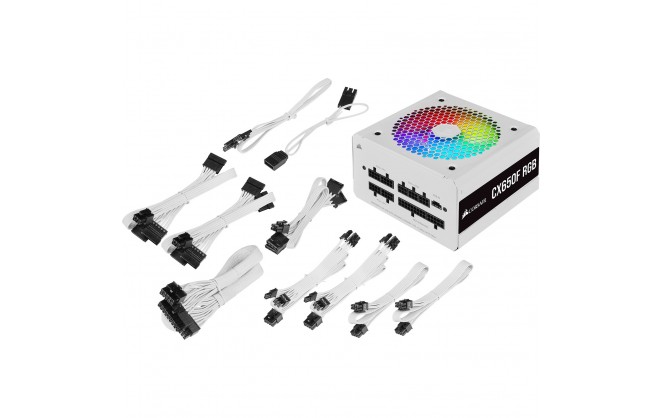

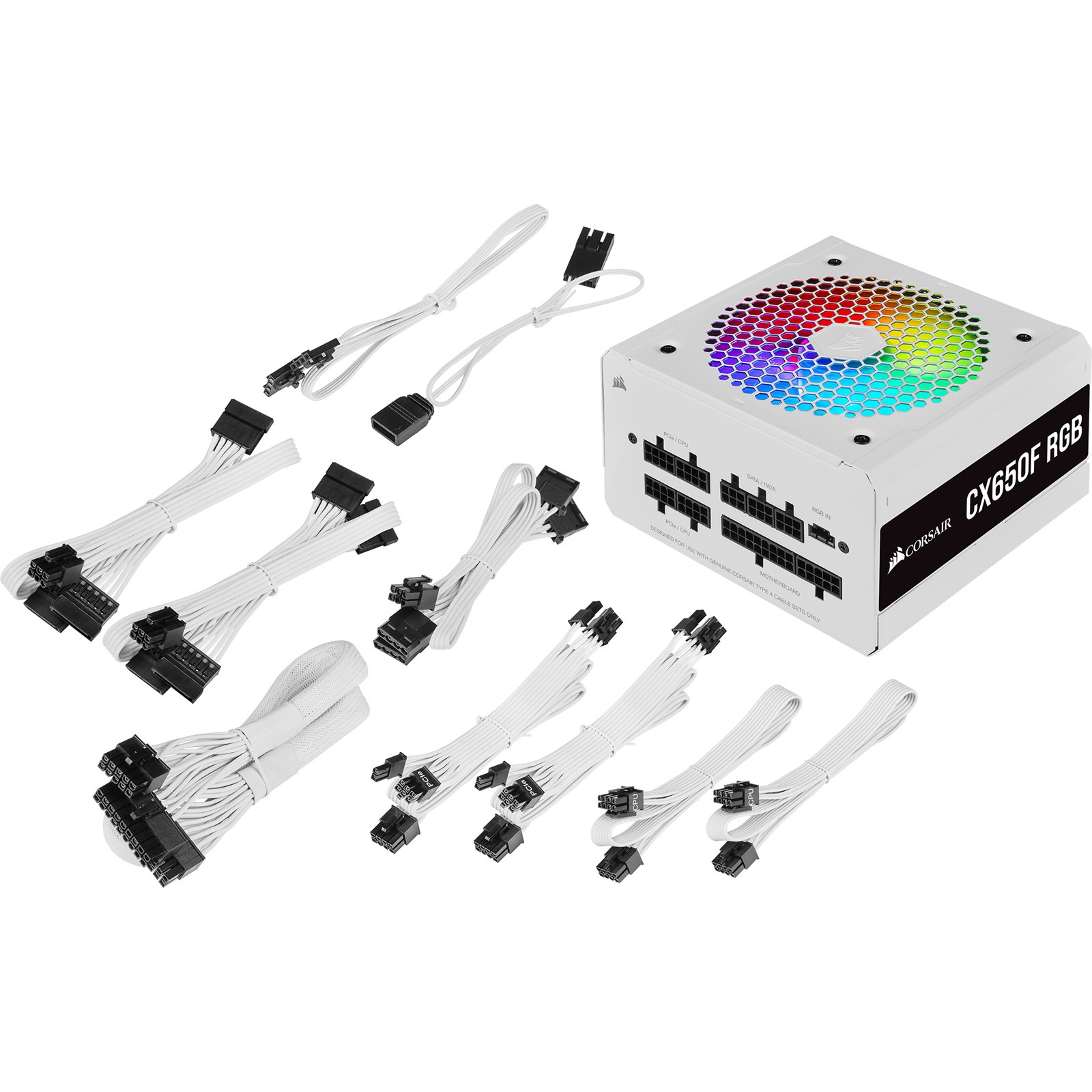

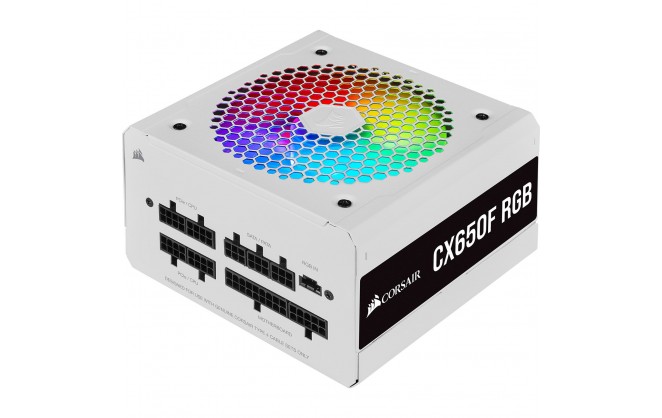

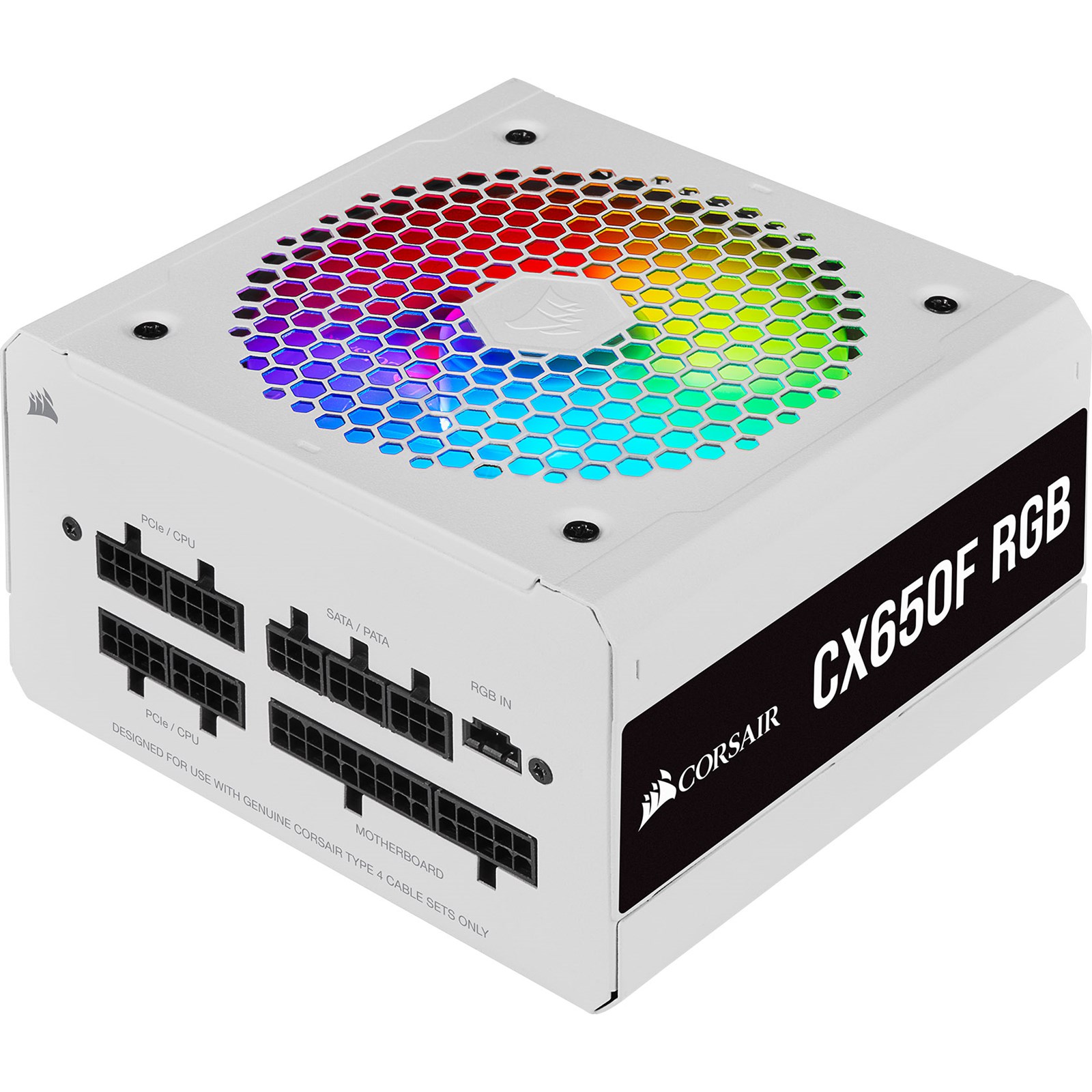

Corsair CX650F RGB 650W Modular 80+ Bronze PSU

Part Number: CP-9020226-UK
Manufacturer: Corsair
Quickfind Code: 140181

Stock: Out Stock

Contact for availability

Product Features:

Condition: New
Capacity 650W
Connection Fully Modular
Form Factor ATX
Certification 80+ Bronze
Main Colour White

+ Read More Information

Product Description

CORSAIR CX-F RGB Series fully modular power supplies deliver reliable 80 PLUS Bronze efficient power to your system, alongside vibrant customizable lighting from a 120mm RGB fan boasting eight RGB LEDs. Easily cycle through ten preset lighting modes, or connect to a CORSAIR iCUE RGB Lighting Controller or compatible motherboard to unlock advanced lighting control over eight individually addressable LEDs. CX-F RGB Series PSUs are built with 105°C rated Japanese primary capacitors for superb electrical performance, with fully modular cables to make PC builds and upgrades easy. Designed for low-noise operation with near-silent operation at low loads, and supporting Microsoft Modern Standby sleep mode for extremely fast wake-from-sleep times, the CX-F RGB Series offers steady power and spectacular color.

Main Features

80 PLUS Bronze Certified: Provides up to 88% operational efficiency, generating less heat and lowering your energy costs.
120mm RGB Fan: Control eight individually addressable RGB LEDs at the push of a button, with ten preset lighting modes.
iCUE and Motherboard RGB Compatible: Connect to a CORSAIR iCUE RGB Lighting Controller or motherboard with compatible 5V ARGB header for advanced RGB lighting control (sold separately).
Optimized for Low Noise: A dedicated fan curve is specially calculated to keep noise levels down.
105 degrees C Rated Japanese Primary Capacitors: For consistent, reliable power and superb electrical performance.
Microsoft Modern Standby Support: Enables extremely fast wake-from-sleep times and better low-load efficiency.
Fully Modular: Reduce cable clutter by only connecting the cables that your system needs.
Compact 140mm-Long Casing: Ensures an easy fit in almost all modern enthusiast PC cases.
Five-Year Warranty: For complete peace of mind.

Technical Specification

Corsair CX650F RGB 650W Modular 80+ Bronze PSU

Interfaces/Ports

SATA Connectors	7
CPU Connectors	1 x 4+4-pin EPS
PCI Connectors	4 x 6+2-pin PCIe
Motherboard Connectors	1 x 20+4-pin ATX
Molex Connectors	4

Compliance

Standards

80 PLUS Bronze Certified

Electrical

Voltage	100 ~ 240 V
Power	650 W
Frequency Range	47 ~ 63 Hz

Physical

Form Factor	ATX Power Supply
Case Colour	White
Width	150 mm
Depth	140 mm
Height	86 mm
Weight	1.3 kg

Warranty

5 Years

Key Features

Modular Cables	Modular
80Plus Rated	80 Plus Bronze
PSU Form Factor	ATX
PCI-E Connectors	4
Motherboard Power Connectors	4 + 4-Pin
PCI-E Pin Type	6+2-Pin
PSU Depth	140 mm
