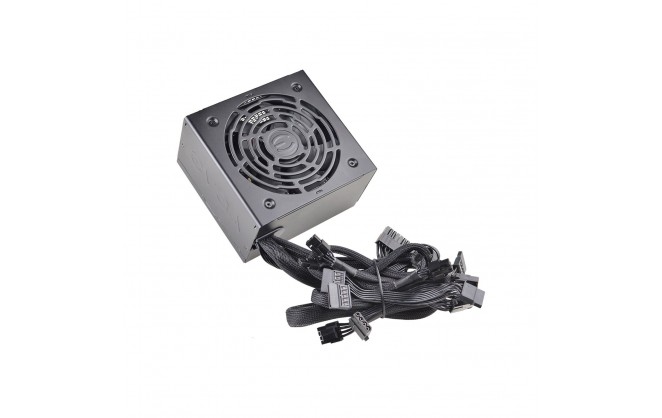

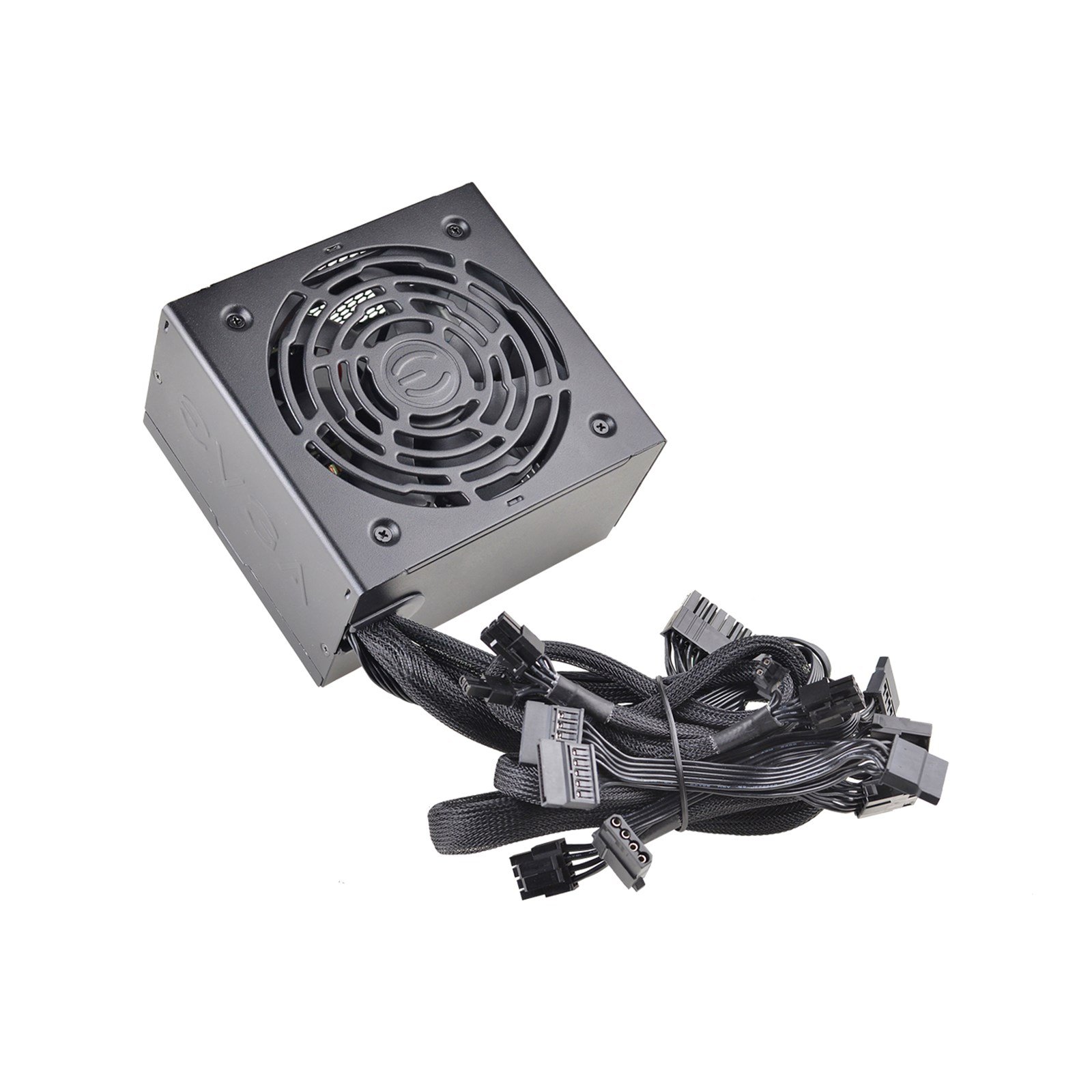

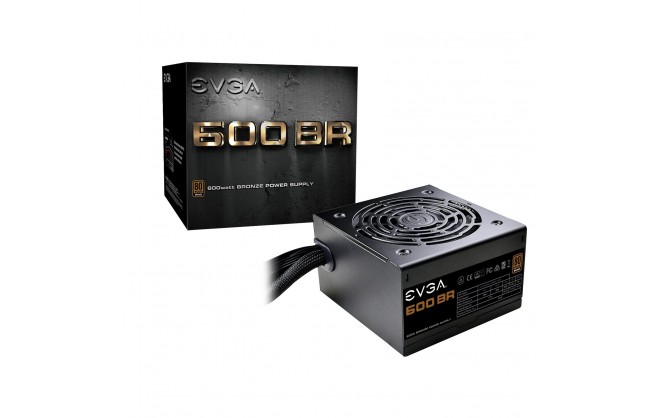

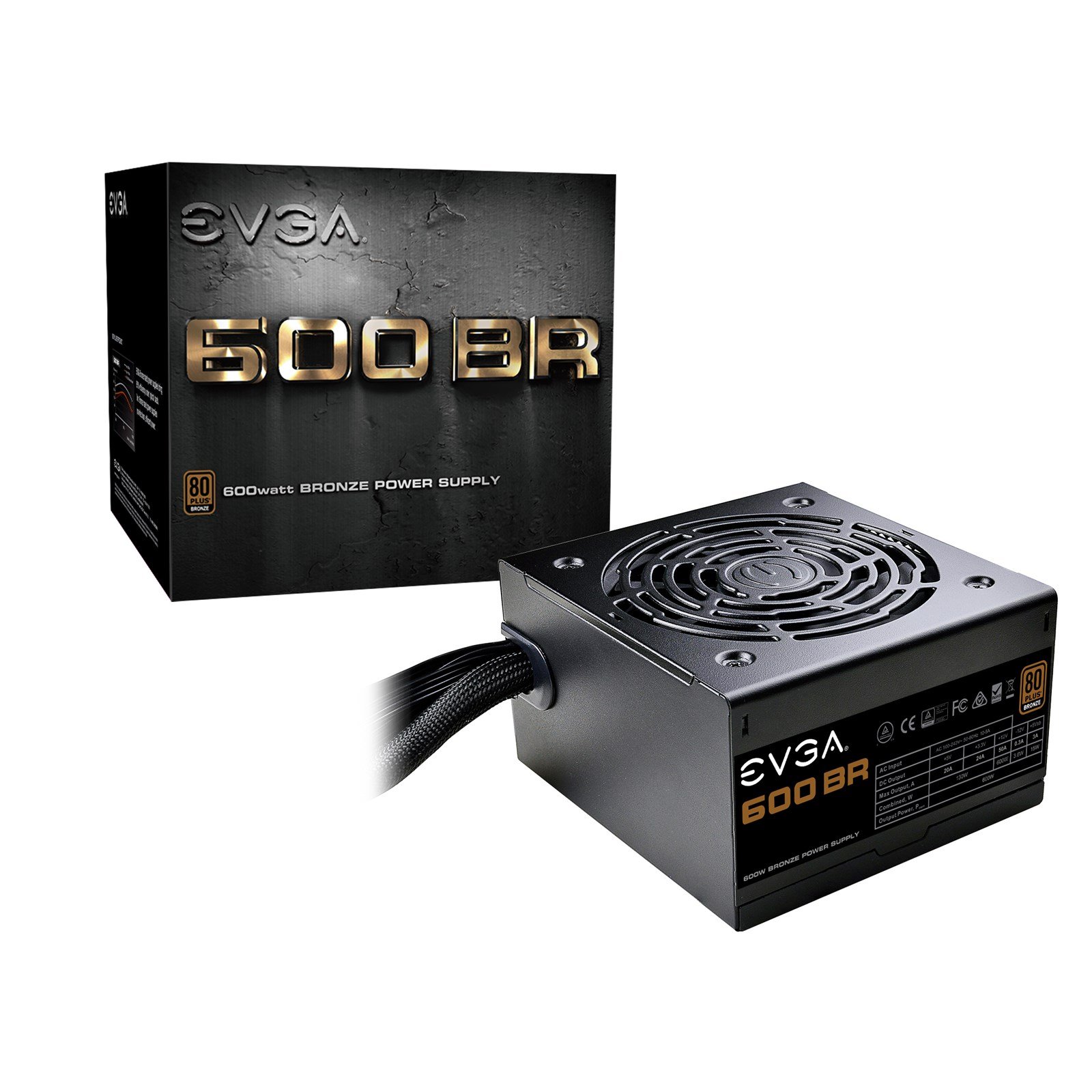

EVGA 600 BR 600W 80+ Bronze PSU

Part Number: 100-BR-0600-K3
Manufacturer: EVGA
Quickfind Code: 140137

Stock: Out Stock

Contact for availability

Product Features:

Condition: New
Capacity 600W
Connection Fully Wired
Form Factor ATX
Certification 80+ Bronze
Main Colour Black

+ Read More Information

Product Description

The EVGA 600BR Power Supplies are here. Designed with both beginner and enthusiast needs in mind, EVGA power supplies are the best choice to power next generation computers. Combining 600W of continuous power with exceptional performance, stunning efficiency, and reliable quality, the 600W BR power supply is what you need to build a solid foundation for your next system.

Main Features

80 PLUS Bronze certified, with 85% efficiency or higher under typical loads
Single 12V Rail
Active Power Factor Correction (PFC)
Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over PowerProtection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
3 Year Warranty
DC-DC Converter improves 3.3V/5V stability
Quiet and Intelligent Auto Fan for near-silent operation

Technical Specification

EVGA 600 BR 600W 80+ Bronze PSU

Interfaces/Ports

SATA Connectors	6
CPU Connectors	1 x 4+4-pin ATX12V
PCI Connectors	2 x 6+2-pin PCIe
Motherboard Connectors	1 x 20+4-pin ATX
Molex Connectors	3
Floppy Connectors	1 x Floppy

Compliance

Safety

TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS Compliance with ErP Lot 6 2013 Requirement

Electrical

Voltage	100 ~ 240 VAC
Power	600 W
Frequency Range	50 ~ 60 Hz

Environmental

Operating Temperature

0 ~ 30 °C

Physical

Form Factor	ATX Power Supply Unit
Case Colour	Black
Width	150 mm
Depth	140 mm
Height	85 mm
Weight	1.81 kg

Warranty

3 Years

Key Features

Modular Cables	No
80Plus Rated	80 Plus Bronze
PSU Form Factor	ATX
PCI-E Connectors	2
Floppy Connector	1
Motherboard Power Connectors	4 + 4-Pin
PCI-E Pin Type	6+2-Pin
PSU Depth	140 mm
ETA Efficiency Cert.	Not Rated
Lambda Noise Cert.	Not Rated
