Fractal Design Ion+ 2 Platinum 660W Modular PSU

  • Part Number: FD-P-IA2P-660
  • Manufacturer: Fractal Design
  • Quickfind Code: 140321
  • Stock: Out Stock

Contact for availability

Product Features:
  • Condition: New
  • Capacity 660W
  • Connection Fully Modular
  • Form Factor ATX
  • Certification 80+ Platinum
  • Main Colour Black
+ Read More Information

Share:

Product Description

The Ion+ 2 Platinum is a high-performance fully modular PSU with whisper-quiet operation, enhanced cable flexibility and superior output quality. It ships with two 8-pin ATX12V/EPS cables, ensuring compatibility with new motherboards.

A user selectable semi-passive Zero RPM mode maintains pure silence under light loads, and the custom-tailored 140 mm fan with FDB bearings stays practically whisper-quiet even under heavy load. Revolutionary UltraFlex™ cable with its ultra-high strand count wire and special insulation bends and twists effortlessly to make installation and cable-routing a breeze.

Ion+ 2 Platinum is available in 560, 660, 760 and 860 watt capacities, all with 80PLUS® Platinum Efficiency, 10-year warranty, and a full electrical protection suite for peace of mind.

Main Features

  • 80PLUS Platinum efficiency for optimized electricity use and reduced heat generation
  • Great electrical output quality with tight voltage regulation and low ripple and noise
  • Fully modular design for reduced clutter and maximum ease of installation and with Fractal Design UltraFlex (extra bendable soft cables) for better cable management
  • Equipped with a large high-performance Fractal Design Dynamic GP-14 140 mm fan, custom-tailored for power supply use with an exceptionally low minimum speed and a true long-life FDB bearing
  • User selectable semi-passive operation allows for either passive operation in low load situations or continuous low speed fan operation for reduced component stress
  • Compact 150 mm depth allows for installation in compact cases or provides additional cable management room in larger cases
  • Premium Japanese 105 degrees C capacitors provide maximum reliability and durability
  • Extensive 10-year warranty and a full electrical protection suite provides peace of mind
  • Supports the latest ATX 2.52 standard with improved start-up time and transient load response
  • Premium storage bags for cables and PSU
  • All models include two 8-pin ATX12V/EPS cables, ensuring compatibility with new motherboards
Technical Specification

Fractal Design Ion+ 2 Platinum 660W Modular PSU

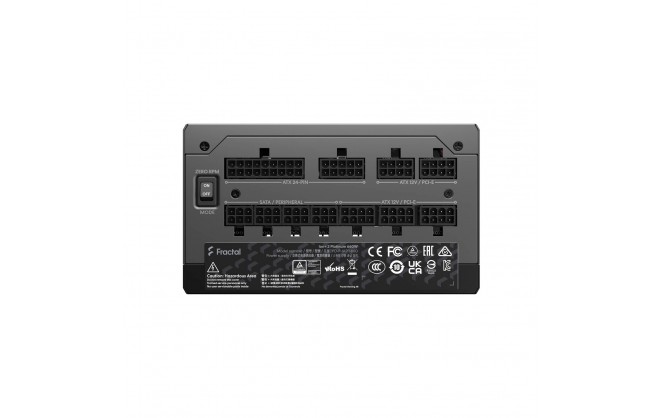

Interfaces/Ports

SATA Connectors10
CPU Connectors2 x 4+4-pin EPS
PCI Connectors4 x 6+2-pin PCIe
Motherboard Connectors1 x 24-pin ATX
Molex Connectors4

Compliance

Standards80PLUS Platinum Certified
SafetyOVP, UVP, OPP, SCP, OCP, OTP

Electrical

Voltage100 ~ 240 V
Power660 W
Frequency Range50 ~ 60 Hz
Power CordYes

Environmental

Operating Temperature0 ~ 50 °C

Physical

Form FactorATX Power Supply
Case ColourBlack

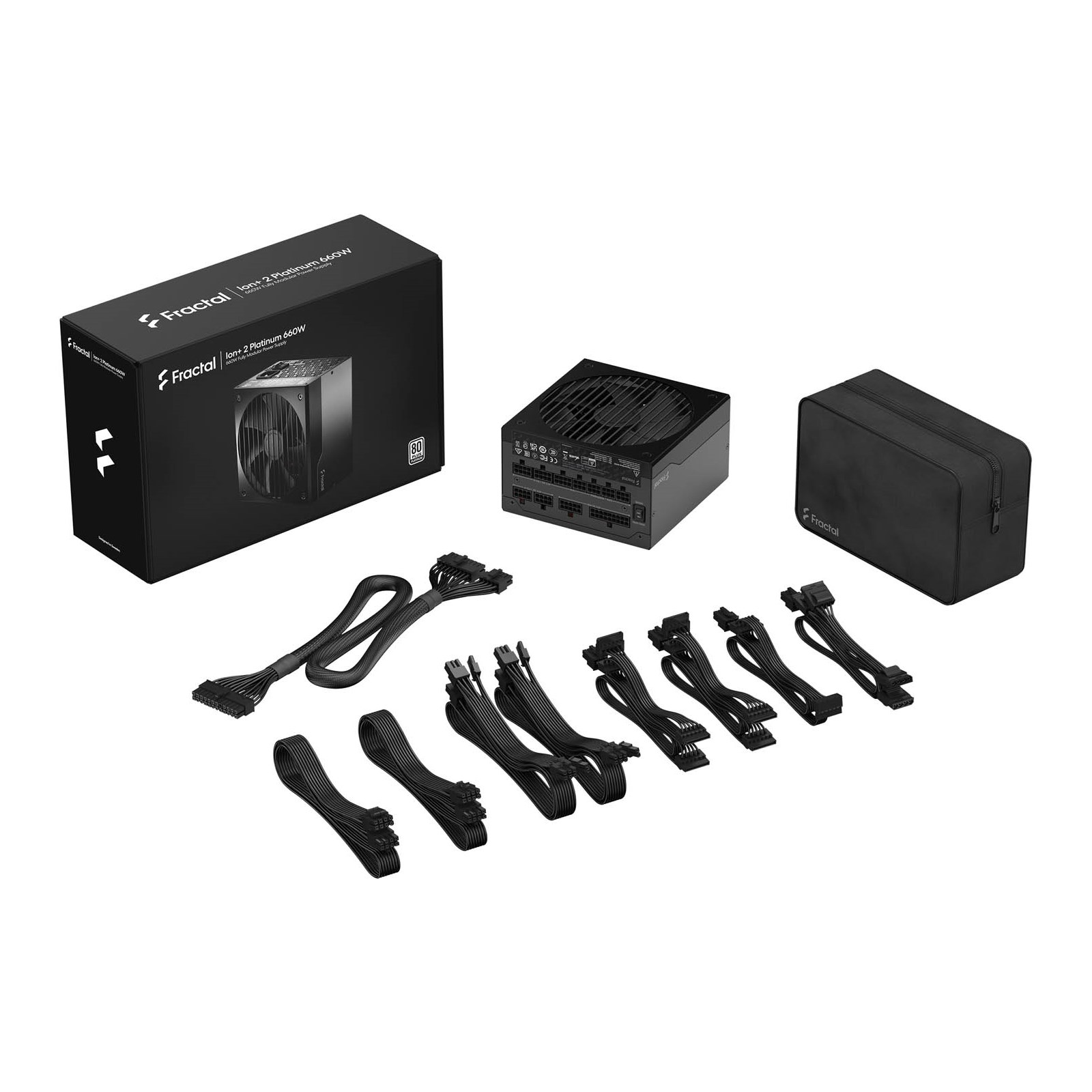

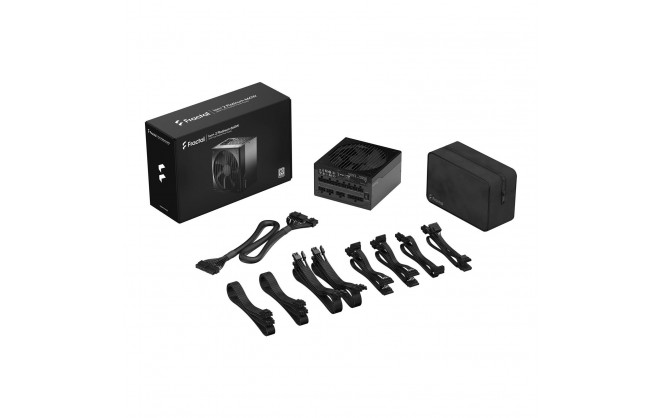

In The BoxPower Supply
Power Supply storage bag
Modular cable kit in storage bag
Manual
AC Power cord
Velcro cable ties and mounting screw pack
Width150 mm
Depth150 mm
Height86 mm
Weight2.34 kg

Warranty

Warranty10 Years

Key Features

Modular CablesModular
80Plus Rated80 Plus Platinum
PSU Form FactorATX
PCI-E Connectors4
Motherboard Power Connectors4 + 4-Pin x 2
PCI-E Pin Type6+2-Pin
PSU Depth150 mm

Item Details

ManufacturerFractal Design
Manufacturer CodeFD-P-IA2P-660
EAN7340172702863
ConditionNew
