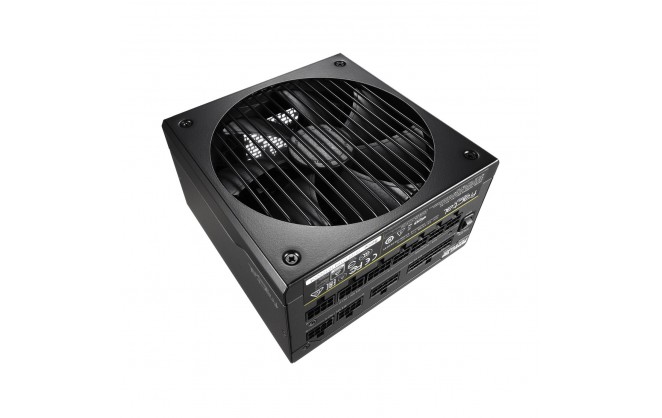

Fractal Design Ion+ 660W Modular 80+ Platinum PSU

Part Number: FD-PSU-IONP-660P-BK
Manufacturer: Fractal Design
Quickfind Code: 140221

Stock: Out Stock

Contact for availability

Product Features:

Condition: New
Capacity 660W
Connection Fully Modular
Form Factor ATX
Certification 80+ Platinum
Main Colour Black

+ Read More Information

Product Description

Power with a plus

Fully modular design for reduced clutter and maximum ease of installation
Equipped with a custom-tailored Fractal Design Dynamic Series 140 mm fan with exceptionally low minimum speed and true long-life FDB
Extensive 10 year warranty

Japanese capacitors

Premium Japanese 105°C capacitors provide enhanced reliability and durability.

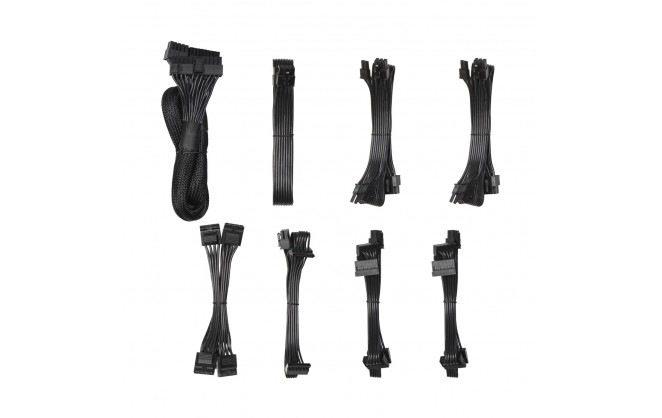

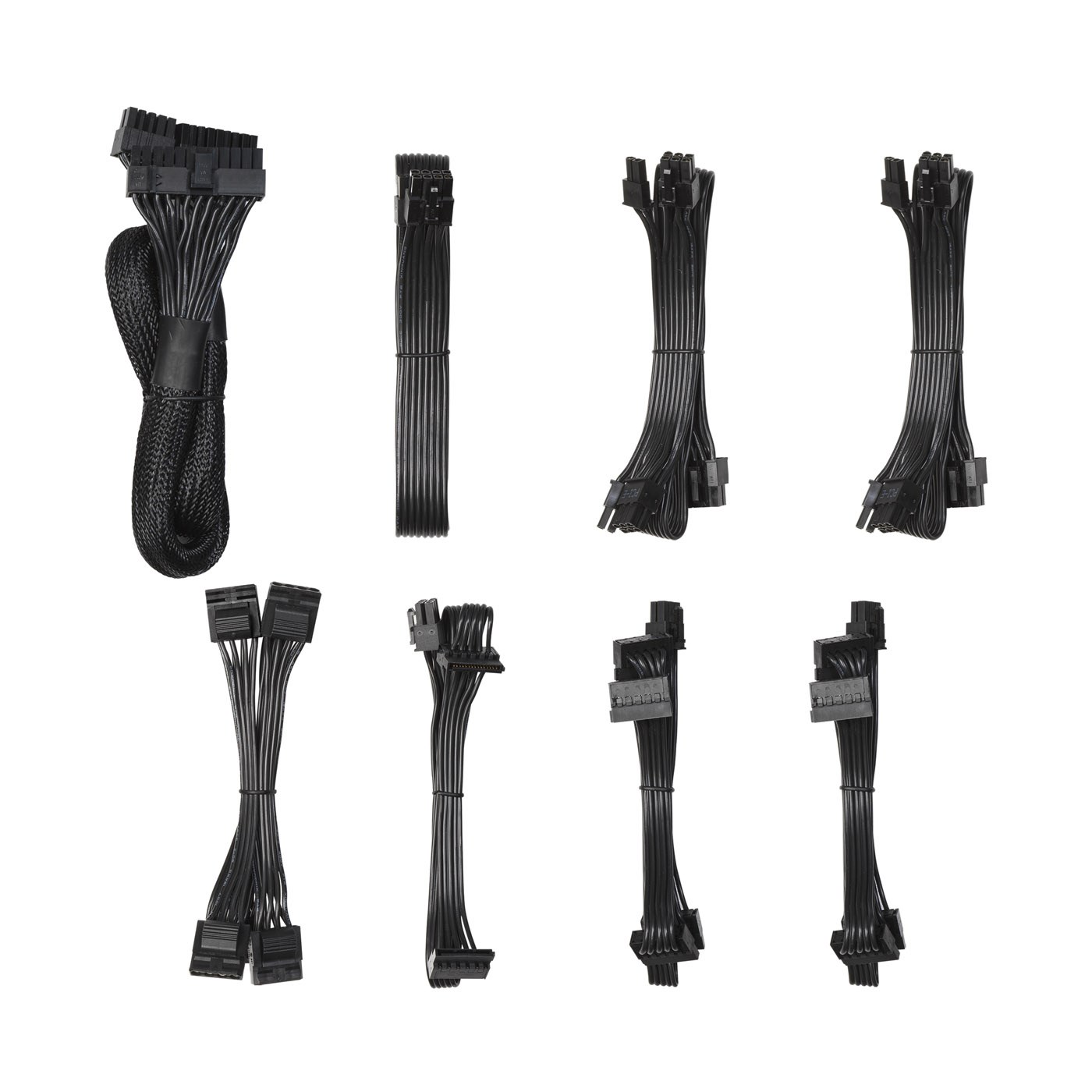

UltraFlex Cables

Fractal Design UltraFlex DC wires have game-changing flexibility for effortless cable-routing and connectors that twist and bend to fit your installation — not fight it.

Zero RPM

User selectable Zero RPM mode allows for either silent, passive operation in low load situations or continuous low speed fan operation for additional cooling.

More power, less heat

The Ion+ Platinum is rated 80 PLUS® Platinum Efficiency for its ability to offer electrical output of the highest quality, while generating as little heat as possible.

80 PLUS® Platinum Efficiency for optimized electrical performance and reduced heat generation
Outstanding output quality with tight voltage regulation and extremely low noise and ripple
Over Power Protection, Over Voltage Protection, Short Circuit Protection, Under Voltage Protection, Over Current Protection and Over Temperature Protection

Main Features

UltraFlex DC wires for effortless cable-routing and connectors
Custom-tailored 140 mm fan with exceptionally low minimum speed
80 PLUS® Platinum Efficiency for optimized electrical performance

Technical Specification

Fractal Design Ion+ 660W Modular 80+ Platinum PSU

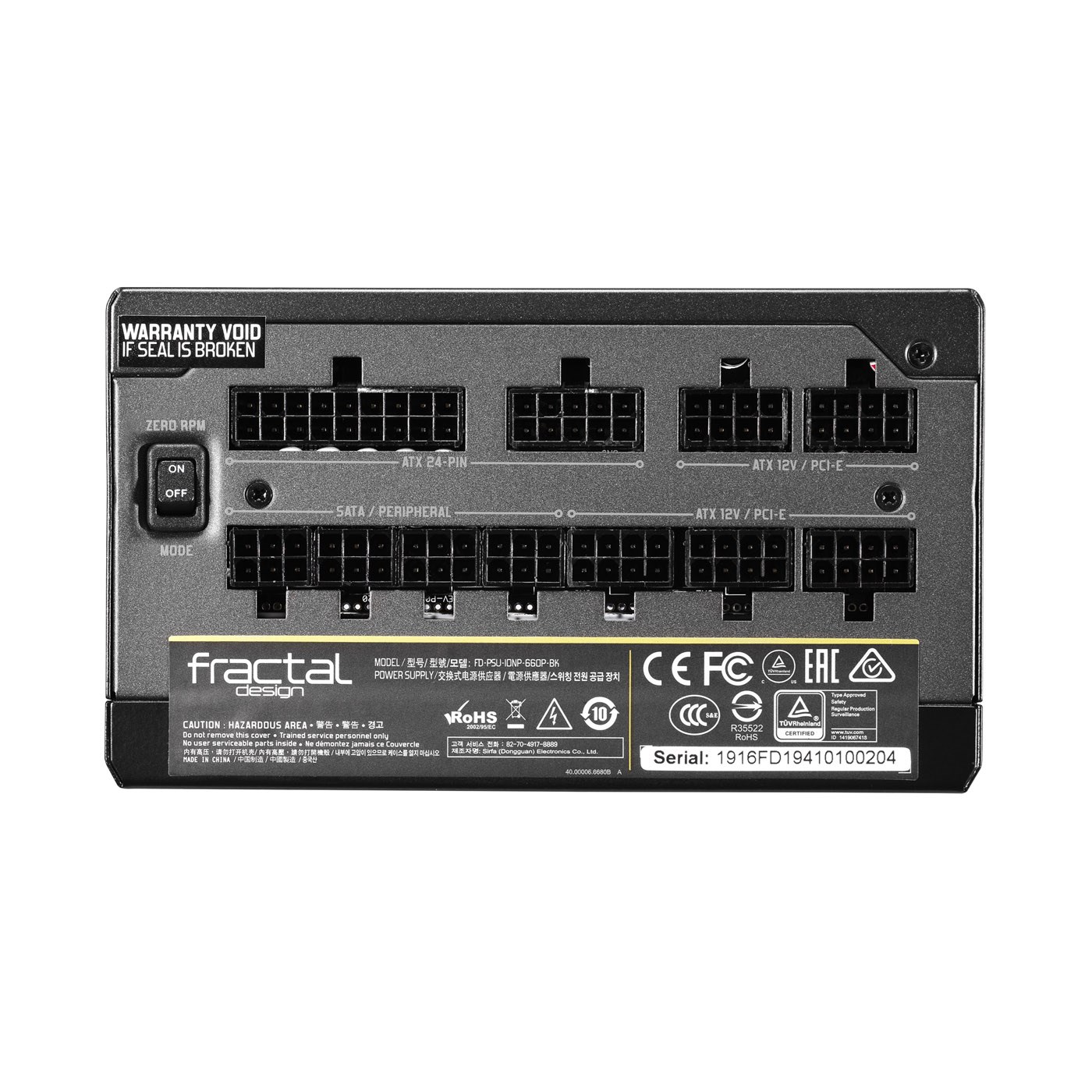

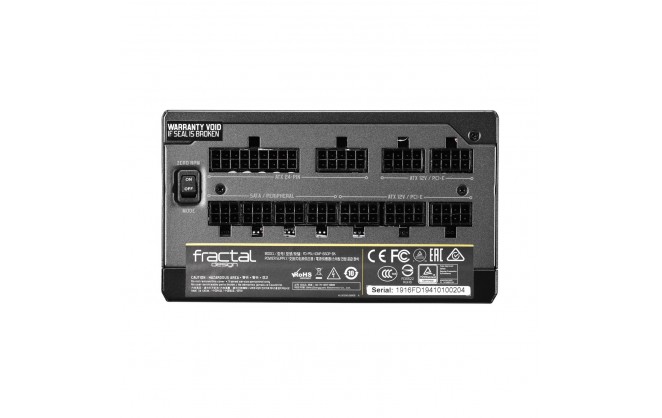

Interfaces/Ports

SATA Connectors	10
CPU Connectors	1 x 4+4-pin EPS
PCI Connectors	4 x 6+2-pin PCIe
Motherboard Connectors	1 x 20+4-pin ATX
Molex Connectors	4

Compliance

Standards	CE, FCC, TUV, cTUVus, EAC, RCM, CCC, BSMI, CB, RoHS, WEEE
Safety	Over voltage protection. Under voltage protection. Over power protection. Short circuit protection. Over current protection. Over temperature protection

Electrical

Voltage	100 ~ 240 VAC
Power	660 W
Frequency Range	50 ~ 60 Hz

Environmental

Operating Temperature

0 ~ 50 °C

Physical

Form Factor	ATX Power Supply Unit
Case Colour	Black
Width	150 mm
Depth	150 mm
Height	86 mm
Weight	1.61 kg

Warranty

10 Years

Key Features

Modular Cables	Modular
80Plus Rated	80 Plus Platinum
PSU Form Factor	ATX
PCI-E Connectors	4
Motherboard Power Connectors	4 + 4-Pin
PCI-E Pin Type	6+2-Pin
PSU Depth	150 mm
