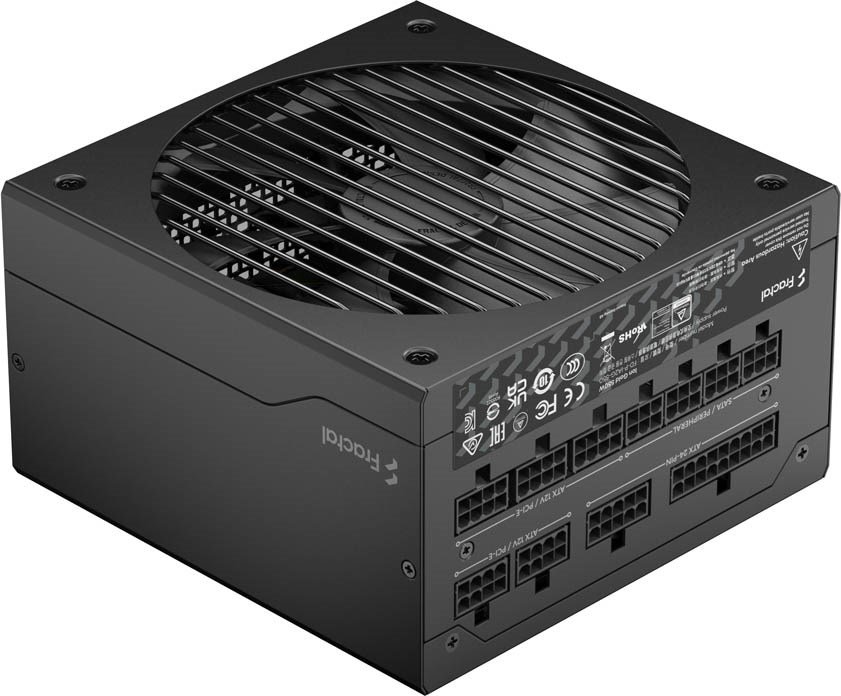

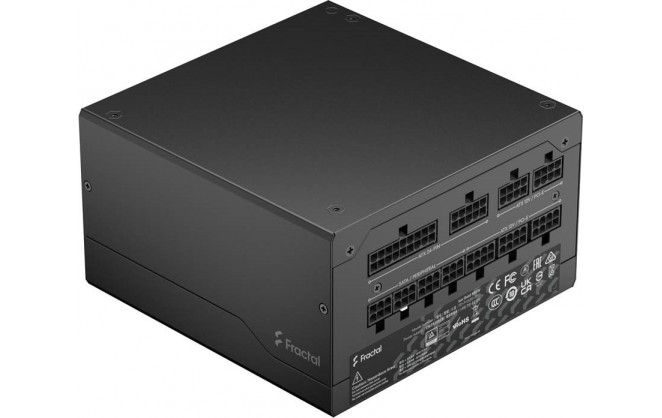

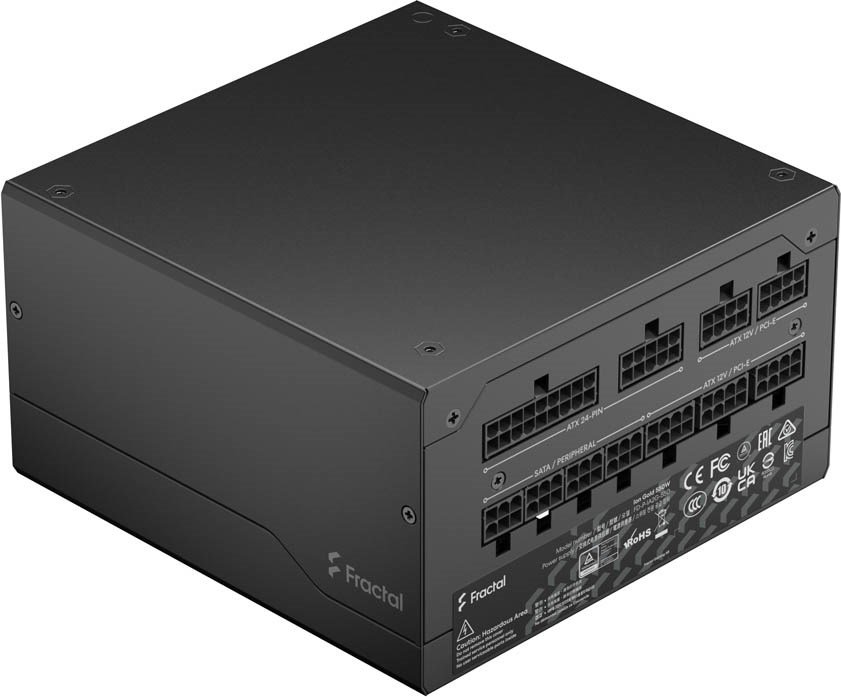

Fractal Design Ion Gold 550W Modular 80+ Gold PSU

  • Part Number: FD-P-IA2G-550
  • Manufacturer: Fractal Design
  • Quickfind Code: 140172
  • Stock: Out Stock

Contact for availability

Product Features:
  • Condition: New
  • Form Factor ATX
  • Connection Fully Modular
  • Certification 80+ Gold
  • Capacity 550W
  • Main Colour Black
+ Read More Information

Share:

Product Description

The Ion Gold ATX is a high-performance power supply, featuring great electrical performance, quiet operation with a big 140 mm Dynamic series fan, and an attractive design.

Tailored specifically for anyone looking for a high-quality power supply at a competitive price, the Ion Gold comes packed with capability. It is fully modular for reduced clutter, installs easily thanks to its 150 mm depth, and comes with a 7-year warranty as well as a full electrical protection suite for peace of mind.

Main Features

  • 80 PLUS Gold Efficiency rating for reduced noise and energy consumption
  • Supports ATX 2.52 with improved start-up time and transient load response
  • DC-DC design for more precise electrical output and full compatibility with modern components
  • Premium Japanese 105 degrees Celsius capacitor(s) on the primary side for superior reliability and durability
  • Fully modular design for reduced clutter and maximum ease of installation
  • Equipped with a large temperature-controlled Fractal Design Dynamic 140 mm fan, custom-tailored for power supply use with an exceptionally low minimum speed
  • Compact 150 mm depth allows for installation in compact cases or provides additional cable management room in larger cases
  • Long 7-year warranty and a full electrical protection suite provides peace of mind
Technical Specification

Fractal Design Ion Gold 550W Modular 80+ Gold PSU

Interfaces/Ports

SATA Connectors6
CPU Connectors1 x 4+4-pin EPS
PCI Connectors2 x 6+2-pin PCIe
Motherboard Connectors1 x 24-pin ATX
Molex Connectors3

Compliance

Standards80 PLUS Gold Certified
CE, FCC, KCC, TUV, cTUVus, EAC, RCM, CCC, BSMI, CB, RoHS, WEEE
SafetyOVP, UVP, OPP, SCP, OCP, OTP

Electrical

Voltage100 ~ 240 V AC
Power550 W
Frequency Range50 ~ 60 Hz
Power CordYes

Environmental

Operating Temperature0 ~ 40 °C

Physical

Form FactorATX Power Supply
Case ColourBlack
In The BoxIon Gold Power Supply
Modular Cables
Screw Pack with Velcro Cable Ties
Power Cable
User Manual
Width150 mm
Depth150 mm
Height86 mm
Weight2.06 kg

Warranty

Warranty7 Years

Key Features

Modular CablesModular
80Plus Rated80 Plus Gold
PSU Form FactorATX
PCI-E Connectors2
Motherboard Power Connectors4 + 4-Pin
PCI-E Pin Type6+2-Pin
PSU Depth150 mm

Item Details

ManufacturerFractal Design
Manufacturer CodeFD-P-IA2G-550
Alternative Part NumberFD-P-IA2G-550-UK
EAN7340172702771
UPC843276102777
ConditionNew
