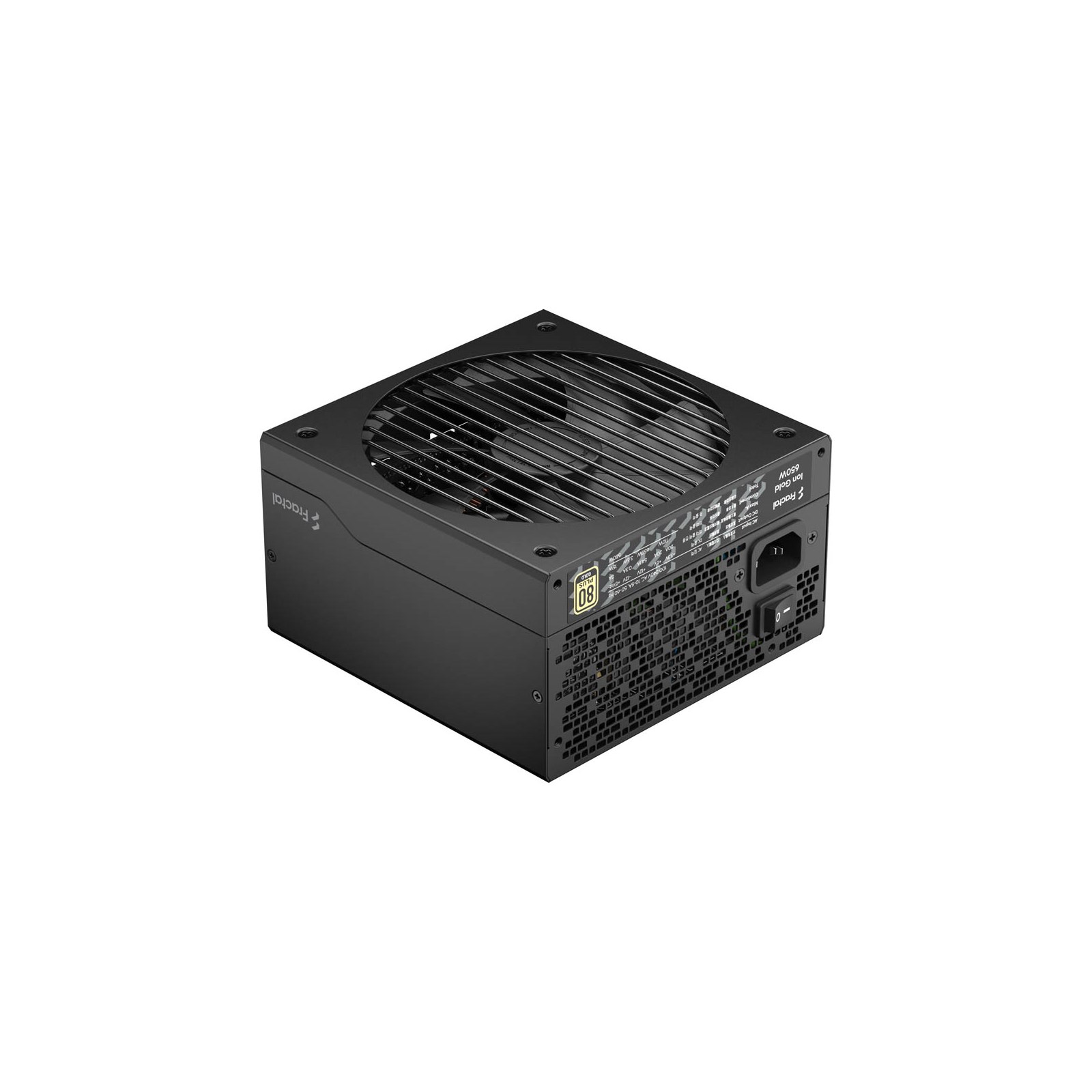

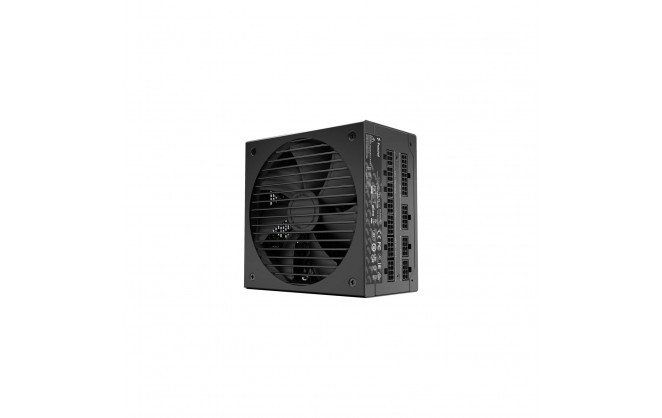

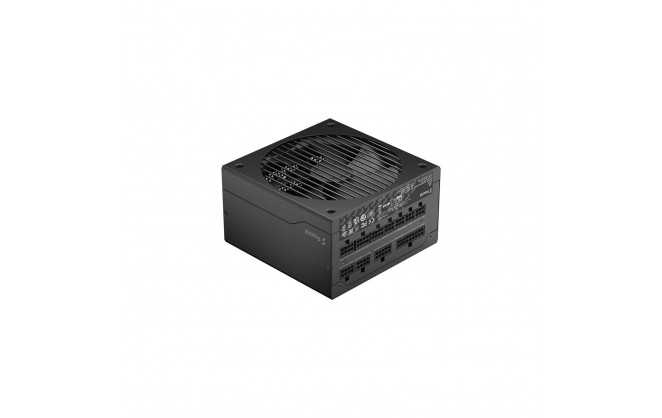

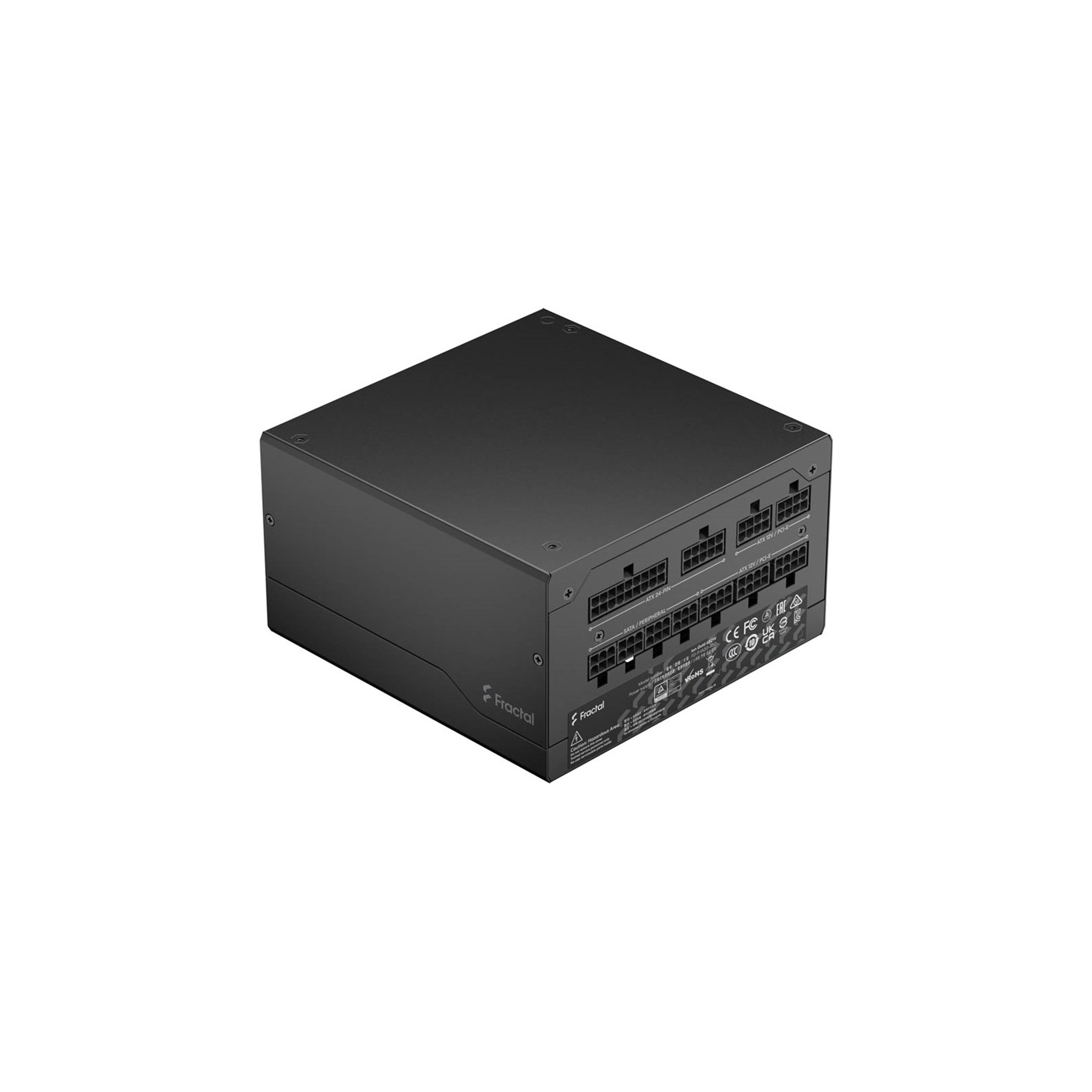

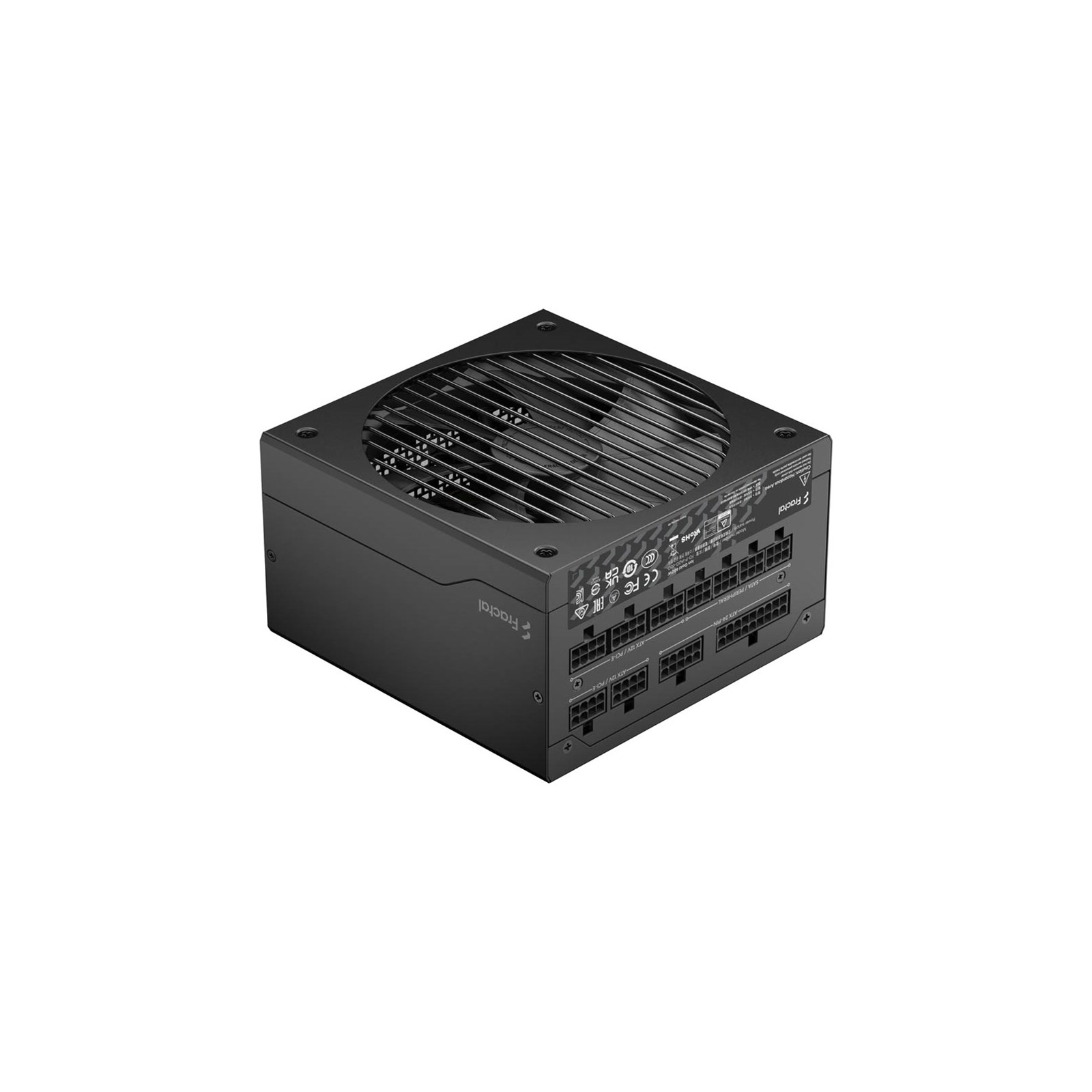

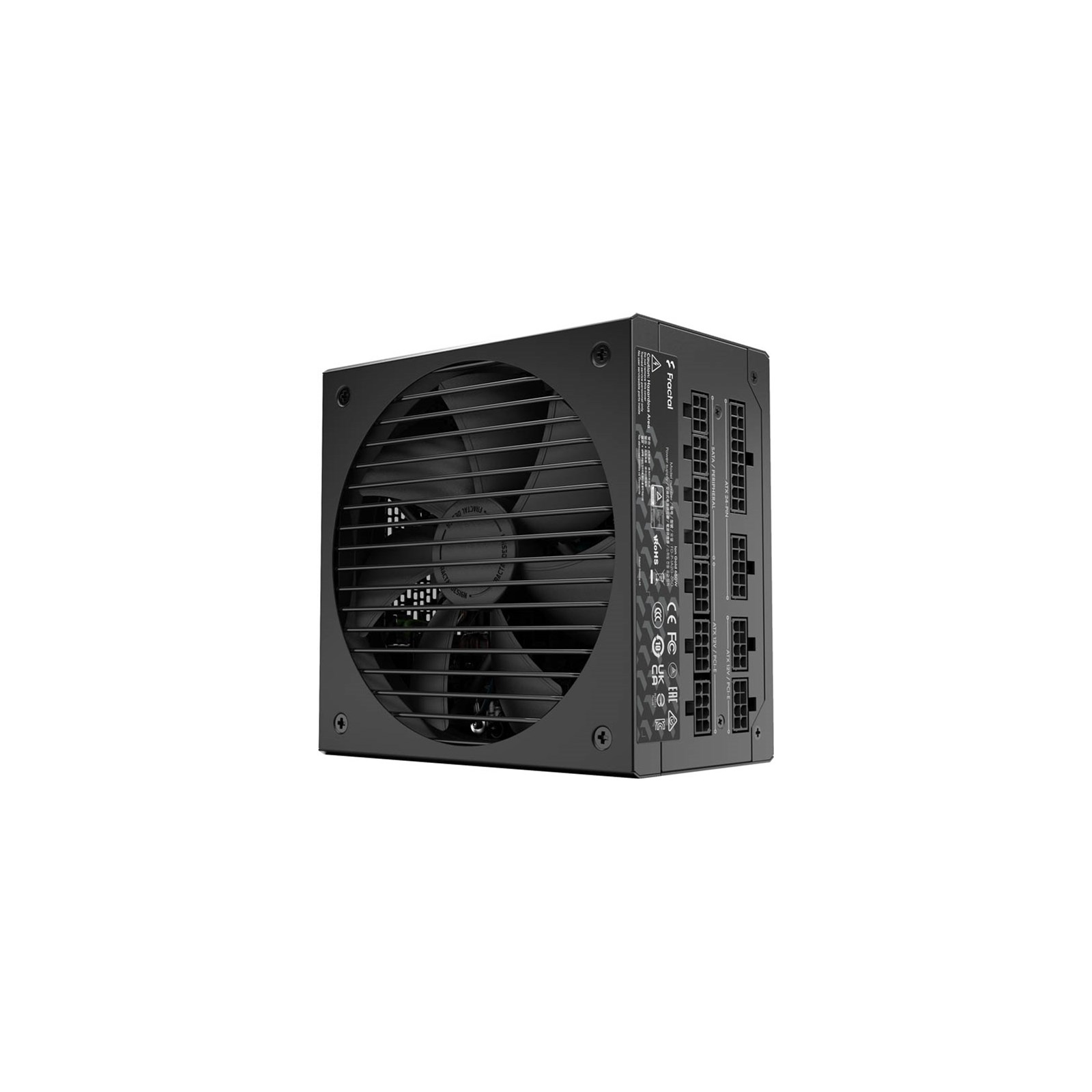

Fractal Design Ion Gold 650W Modular 80+ Gold PSU

Part Number: FD-P-IA2G-650
Manufacturer: Fractal Design
Quickfind Code: 140319

Stock: In Stock

£84.99 ex. vat
£101.99 inc. vat

Product Features:

Condition: New
Capacity 650W
Connection Fully Modular
Form Factor ATX
Certification 80+ Gold
Main Colour Black

+ Read More Information

Product Description

The Ion Gold ATX is a high-performance power supply, featuring great electrical performance, quiet operation with a big 140 mm Dynamic series fan, and an attractive design.

Tailored specifically for anyone looking for a high-quality power supply at a competitive price, the Ion Gold comes packed with capability. It is fully modular for reduced clutter, installs easily thanks to its 150 mm depth, and comes with a 7-year warranty as well as a full electrical protection suite for peace of mind.

Main Features

80 PLUS Gold Efficiency rating for reduced noise and energy consumption
Supports ATX 2.52 with improved start-up time and transient load response
DC-DC design for more precise electrical output and full compatibility with modern components
Premium Japanese 105 degrees Celsius capacitor(s) on the primary side for superior reliability and durability
Fully modular design for reduced clutter and maximum ease of installation
Equipped with a large temperature-controlled Fractal Design Dynamic 140 mm fan, custom-tailored for power supply use with an exceptionally low minimum speed
Compact 150 mm depth allows for installation in compact cases or provides additional cable management room in larger cases
Long 7-year warranty and a full electrical protection suite provides peace of mind

Technical Specification

Fractal Design Ion Gold 650W Modular 80+ Gold PSU

Interfaces/Ports

SATA Connectors	6
CPU Connectors	1 x 4+4-pin EPS
PCI Connectors	4 x 6+2-pin PCIe
Motherboard Connectors	1 x 24-pin ATX
Molex Connectors	3

Compliance

Standards	80 PLUS Gold Certified CE, FCC, KCC, TUV, cTUVus, EAC, RCM, CCC, BSMI, CB, RoHS, WEEE
Safety	OVP, UVP, OPP, SCP, OCP, OTP

Electrical

Voltage	100 ~ 240 V AC
Power	650 W
Frequency Range	50 ~ 60 Hz
Power Cord	Yes

Environmental

Operating Temperature

0 ~ 40 °C

Physical

Form Factor	ATX Power Supply
Case Colour	Black
In The Box	Ion Gold Power Supply Modular Cables Screw Pack with Velcro Cable Ties Power Cable User Manual
Width	150 mm
Depth	150 mm
Height	86 mm
Weight	2.13 kg

Warranty

7 Years

Key Features

Modular Cables	Modular
80Plus Rated	80 Plus Gold
PSU Form Factor	ATX
PCI-E Connectors	4
Motherboard Power Connectors	4 + 4-Pin
PCI-E Pin Type	6+2-Pin
PSU Depth	150 mm
