The Classic Power PSUs from Kolink boast an improved circuit design and an associated performance increase. These features offer a significant enhancement of voltage regulation and meet the needs of modern powerful computers. In addition, the extremely quiet 120mm fan, with a fined-tuned RPM curve, has been optimized for airflow. This makes the Classic Power the quietest power supply of its kind. The Classic Power PSUs looks amazing in any high-end gaming system due to its modern design and the flexible and flat cables use for connections across the system.
The 400 Watt model of the Classic Power series offered here has enough connections and performance for fast gaming computers with basic equipment. The PSU delivers up to 348W and 29A on the +12V rail while providing 80W and 15A each on the +3.3V and +5V rails. This especially high efficiency meets the requirements of 80 Plus Bronze 230V EU and exceeds 85/82/82 percent at 50/20/100 percent load (at 230 Volt input voltage). The PSU's highly efficient circuit design features independent DC-to-DC converters for the 3.3V and 5V outputs, ensuring extremely precise voltage regulation.

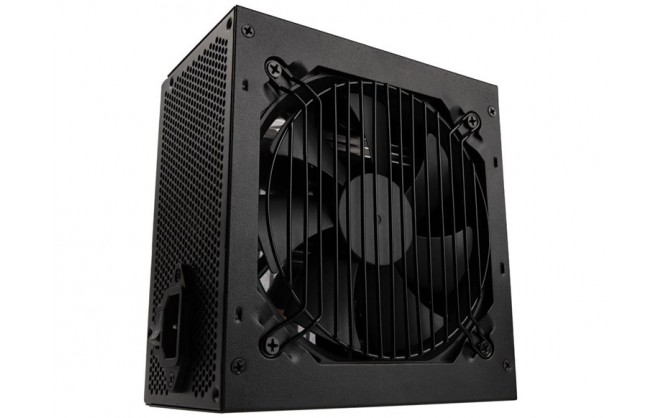

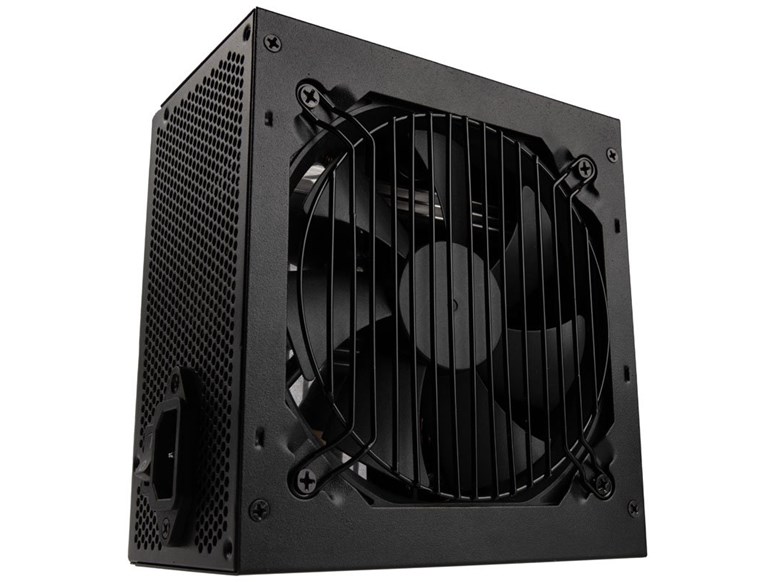

Each example of Classic-Power series is cooled by a 120 mm fan with durable and quiet sleeve bearings that offer a fine-tuned RPM curve. Thanks to the optimized airflow, the fan and thus the entire PSU remain quiet as a whisper. Besides the 20+4 pin for the motherboard, the Kolink Classic Power has a 4+4 pin connector for the CPU and a 6+2 PCIe pin connector for dedicated graphics cards. Three SATA and two Molex connectors are available for additional components. The flat, flexible and completely black cables have a modern look and fit into almost any up-to-date gaming setup.
Note: For environmental reasons the manufacturer does not supply a power cord for connection to the mains.
Kolink Classic Power 400W Power Supply 80 Plus Bronze
Interfaces/Ports
| SATA Connectors | 3 |
| CPU Connectors | 1 x 4+4-pin EPS |
| PCI Connectors | 1 x 6+2-pin PCIe |
| Motherboard Connectors | 1 x 20+4-pin ATX |
| Molex Connectors | 2 |
Compliance
| Standards | 80+ Bronze Certified |
| Safety | OVP / UVP / SCP / OPP / OCP |
Electrical
| Power | 400 W |
Physical
| Form Factor | ATX Power Supply Unit |
| Case Colour | Black |
| In The Box | Power Supply Screws |
| Width | 150 mm |
| Depth | 160 mm |
| Height | 86 mm |
Warranty
| Warranty | 3 Years |
Key Features
| Modular Cables | No |
| 80Plus Rated | 80 Plus Bronze |
| PSU Form Factor | ATX |
| PCI-E Connectors | 1 |
| Motherboard Power Connectors | 4 + 4-Pin |
| PCI-E Pin Type | 6+2-Pin |
| PSU Depth | 160 mm |
| CPU Power Pins (male) | 8 |
| PCI-E Power Pins (male) | 8 |
Item Details
| Manufacturer | Kolink |
| Manufacturer Code | KL-400v2 |
| EAN | 5999094002852 |
| Condition | New |
