Phanteks brings patented technology of the Power Combo to the Revolt PRO power supply. In collaboration with Seasonic, the Revolt Pro is 80 PLUS Gold certified, fully modular, and the very first expandable power supply. The Revolt Pro allows you to connect a secondary power supply to provide increased power output or redundancy to protect your data from power failure. The Revolt PRO makes advanced server features accessible and cost efficient for everyone in a true plug and play manner.
Connecting a secondary power supply to the Revolt PRO unlocks all the power output from both power supplies to the system, enabling even more powerful systems or upgrades in the future.
The Revolt PRO can protect your data from a power supply or power source failure when connected with a secondary power supply. Power is automatically regulated by the Revolt PRO through the 24 and 8 pin cables between the power supplies to keep your data safe and the system running normally.
Phanteks' patented PCB is designed to maximise your power output by allowing you to connect two power supplies. Revolt PRO gives you a higher maximum power output than all the power supplies in the market while still maintaining stability and performance.
The Revolt PRO can acquire higher power efficiency through load sharing of two PSUs. Power is continuously routed through the most efficient power supply.
A state-of-the-art fan control system allows the power supply to work entirely fanless under 40% load and enables the most quiet systems setups.
The result of a close collaboration between two premium brands. Engineered with premium components, using 100% Japanese 105° capacitors, cable-free internal connections, and a (patented) state-of-the-art PCB design ensures stability and reliability.

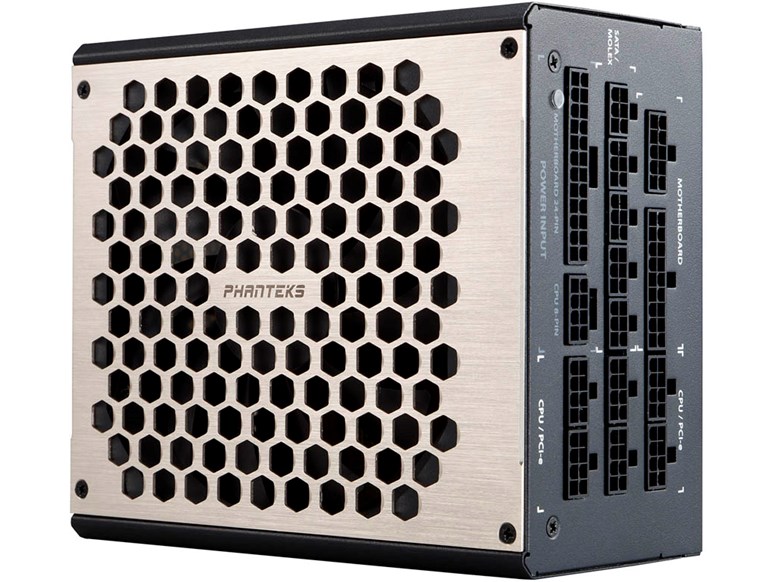

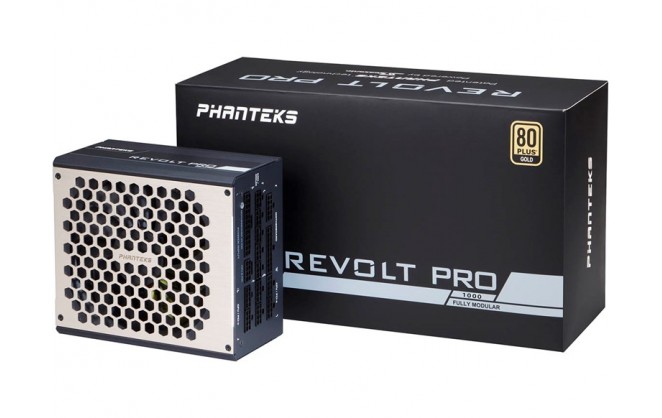

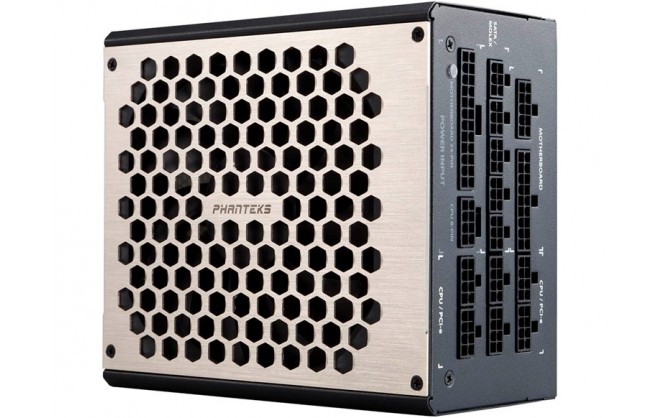

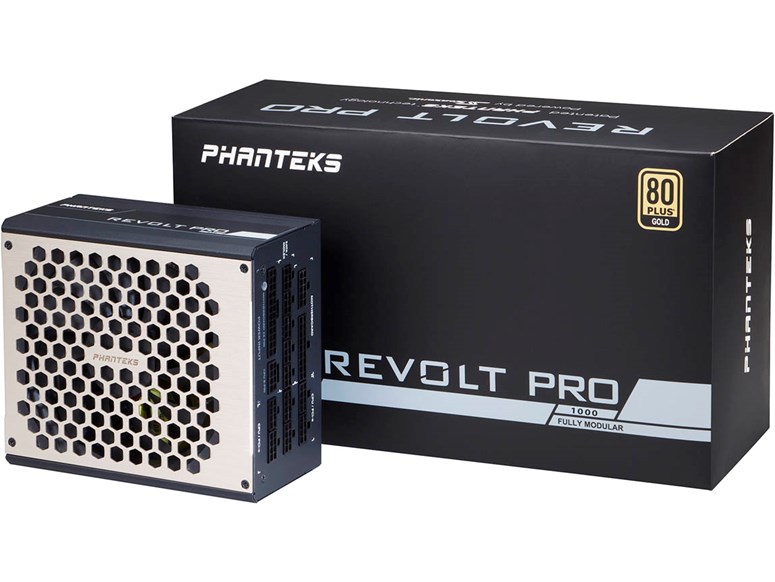

Phanteks Revolt PRO 1000W Modular Power Supply 80 Plus Gold
Interfaces/Ports
| SATA Connectors | 14 |
| CPU Connectors | 2 x 4+4-pin EPS |
| PCI Connectors | 8 x 6+2-pin PCIe |
| Motherboard Connectors | 1 x 24-pin ATX |
| Molex Connectors | 3 |
Compliance
| Standards | 80 PLUS Gold Certified |
| Safety | OPP, OVP, SCP, OCP, OTP, No-Load Protection, Reset Protection |
Electrical
| Voltage | 100 ~ 240 V AC |
| Power | 1000 W |
| Frequency Range | 50 ~ 60 Hz |
| Power Cord | No |
Environmental
| Operating Temperature | 0 ~ 50 °C |
Physical
| Form Factor | ATX Power Supply |
| Case Colour | Black |

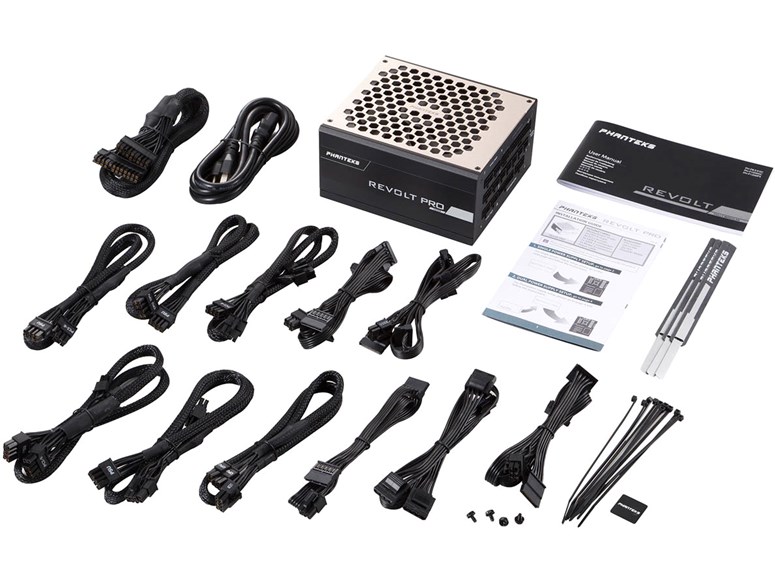

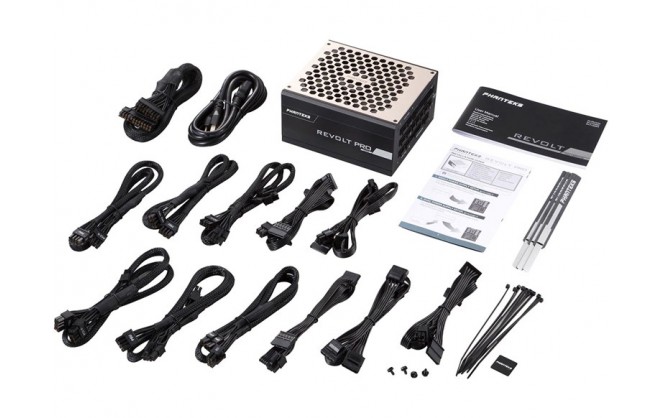

| In The Box | Power Supply 4 x Screws Modular Cables |
| Width | 150 mm |
| Depth | 170 mm |
| Height | 86 mm |
Warranty
| Warranty | 12 Years |
Key Features
| Modular Cables | Modular |
| 80Plus Rated | 80 Plus Gold |
| PSU Form Factor | ATX |
| PCI-E Connectors | 8 |
| Motherboard Power Connectors | 4 + 4-Pin x 2 |
| PCI-E Pin Type | 6+2-Pin |
| PSU Depth | 170 mm |
Item Details
| Manufacturer | Phanteks |
| Manufacturer Code | PH-P1000GC |
| EAN | 0886523500285 |
| UPC | 886523500285 |
| Condition | New |
