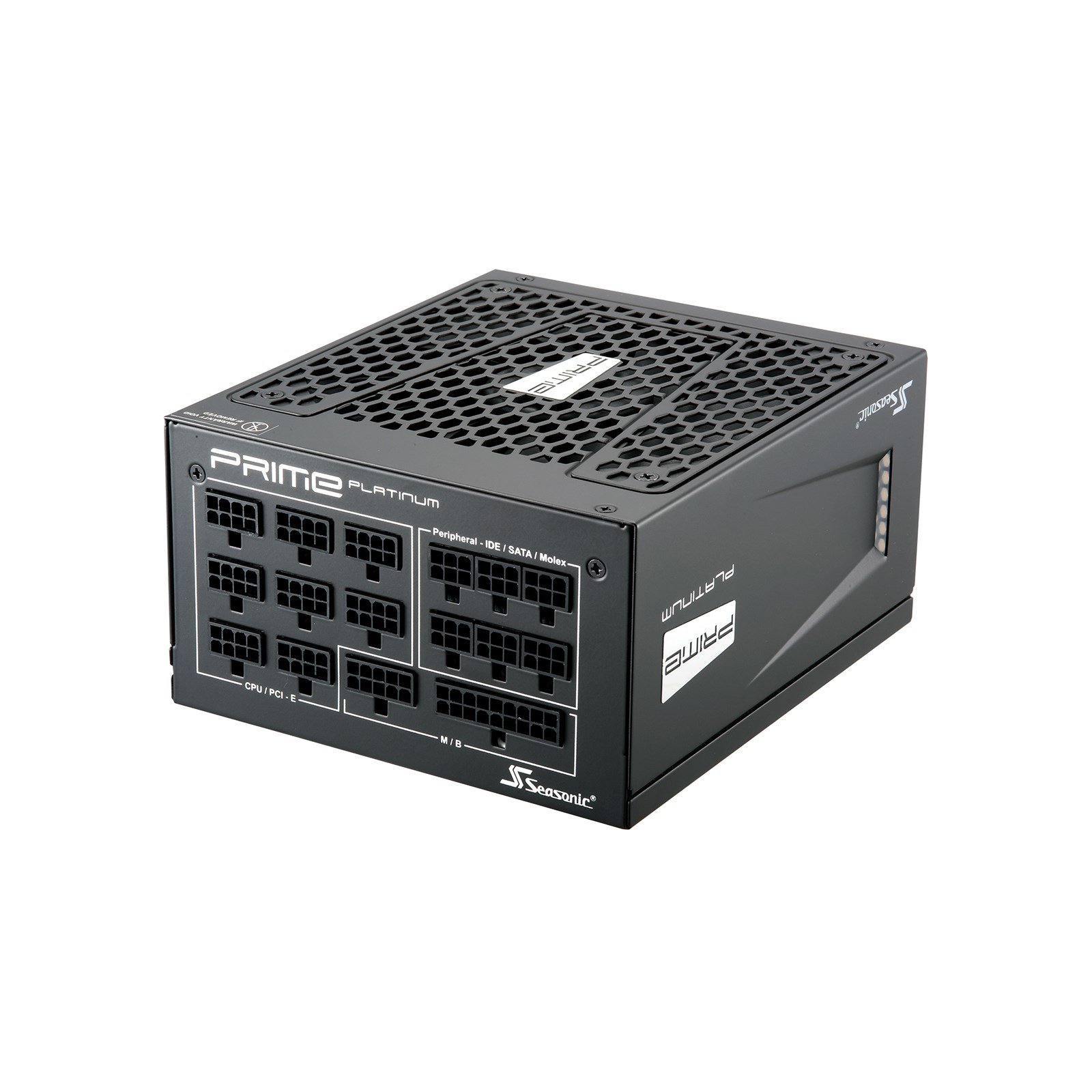

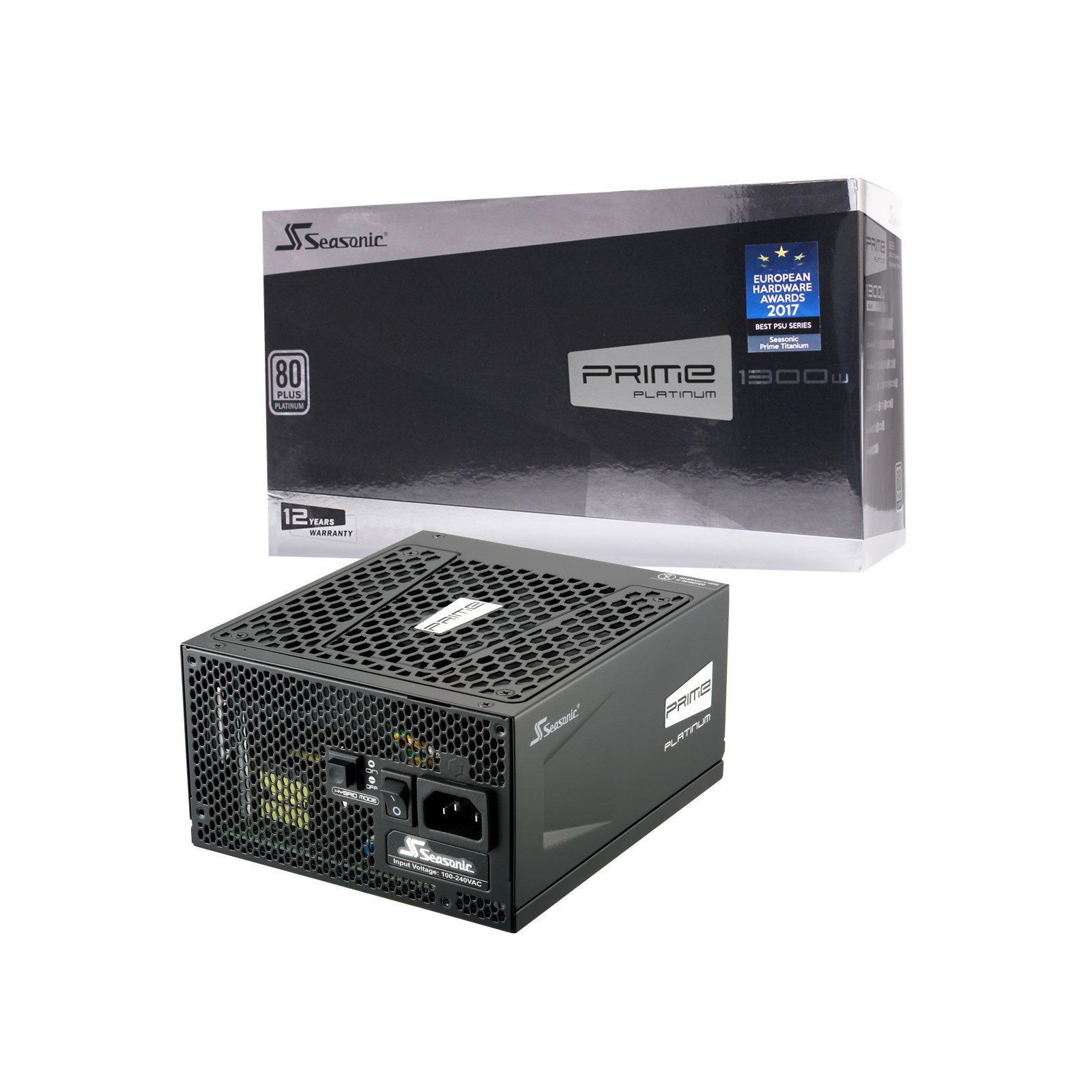

Seasonic PRIME 1300W Modular Power Supply 80 Plus Platinum

Part Number: SSR-1300PD
Manufacturer: Seasonic
Quickfind Code: 140427

Stock: Out Stock

Contact for availability

Product Features:

Condition: New
Capacity 1300W
Connection Fully Modular
Form Factor ATX
Certification 80+ Platinum
Main Colour Black

+ Read More Information

Product Description

Its ultra-high efficiency and outstanding performance are the fine results of Seasonic’s continuous commitment to innovation and advancement. Improved low-load efficiency, highly suppressed ripple noise and a generous 12-year manufacturer’s warranty are just some of the characteristics that set these series apart from other power supplies on the market.

Main Features

80 Plus© Platinum - The Prime Platinum Series achieves 80 Plus© Platinum certification with its 92% efficiency at 50% system load.
Micro Tolerance Load Regulation - Seasonic's latest design keeps the output voltage within a very tight range, achieving under 0.5% load regulation. This impressive electrical performance and stability makes this power supply an ideal choice for high-performance systems.
Premium Hybrid Fan Control - Seasonic's vast experience in designing the most silent and efficient power supplies on the market was translated into the development of Hybrid Mode a state-of-the-art fan control that enables users to keep the overall fan noise at the lowest possible level.
Fluid Dynamic Fan Bearing - High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan.
How It Works - When the fan shaft rotates, high pressure oil drifts along the grooves of the bearing sleeve to generate a thin layer of lubrication between the bearing faces. As the speed increases, so does dynamic oil pressure and the shaft is lifted from the bearing to create smooth, effortless rotations. The herringbone shape of the groves helps to efficiently channel the lubricant and avert leakage.
Cable-Free Connection Design - Seasonic's engineers have implemented a new design feature, where instead of cables the back panel and the PCB (Printed Circuit Board) are connected by a copper plate. This breakthrough solution not only lowers the chance of production errors during manual insertion but it also improves output power quality.
12 Years Warranty - Our commitment to superior Seasonic quality.

Technical Specification

Seasonic PRIME 1300W Modular Power Supply 80 Plus Platinum

Interfaces/Ports

SATA Connectors	12
CPU Connectors	2 x 4+4-pin EPS
PCI Connectors	12 x 6+2-pin PCIe
Motherboard Connectors	1 x 20+4-pin ATX
Molex Connectors	5
Floppy Connectors	1 x Floppy

Compliance

Standards	OPP, OVP, UVP, OCP, OTP, SCP
Safety	cTUVus, TUV, CB, CCC, BSMI, EAC

Electrical

Voltage	100 ~ 240 VAC
Power	1300 W
Frequency Range	50 ~ 60 Hz

Physical

Form Factor	Power Supply Unit
Case Colour	Black
In The Box	Power Supply Manual Screws Cables Power Cord
Width	150 mm
Depth	170 mm
Height	86 mm
Weight	2.1 kg

Warranty

12 Years

Key Features

Modular Cables	Semi-Modular
80Plus Rated	80 Plus Platinum
PSU Form Factor	ATX
PCIe Connectors	12
Floppy Connector	1
Motherboard (EPS) Power Connectors	2 x 4+4-Pin
PCIe Pin Type	6+2-Pin
PSU Depth	170 mm
CPU Power Pins (male)	16
PCIe Power Pins (male)	96

Item Details

Manufacturer	Seasonic
Manufacturer Code	SSR-1300PD
EAN	4711173874157
Condition	New
