A PRIME EXAMPLE OF POWER AND PERFORMANCE
The PRIME TX series became the successors to the Seasonic PRIME and PRIME Ultra series, demonstrating outstanding performance and becoming the epitome of technological excellence and quality through the years. Inside this fully modular ATX PSU is a 135mm fluid dynamic fan for top-level reliability, heat dissipation and quiet operation. And certified with 80 PLUS Titanium, the highest levels of power efficiency is assured.
80 PLUS® TITANIUM
The PRIME Titanium Series achieves the highest level of 80 PLUS® Titanium certification on the market with its 94% efficiency at 50% system load.
FLUID DYNAMIC FAN BEARING
High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan.
HOW IT WORKS
When the fan shaft rotates, high pressure oil drifts along the grooves of the bearing sleeve to generate a thin layer of lubrication between the bearing faces. As the speed increases, so does dynamic oil pressure and the shaft is lifted from the bearing to create smooth, effortless rotations. The herringbone shape of the groves helps to efficiently channel the lubricant and avert leakage.
IMPROVED POWER OUTPUT QUALITY
Seasonic's engineers have implemented a new design feature, where instead of cables; the back panel and the PCB (Printed Circuit Board) are connected by a copper plate. This breakthrough solution not only lowers the chance of production errors during manual insertion but it also improves output power quality.

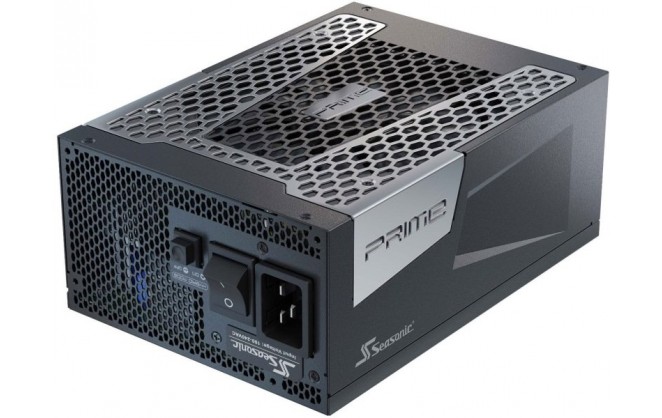

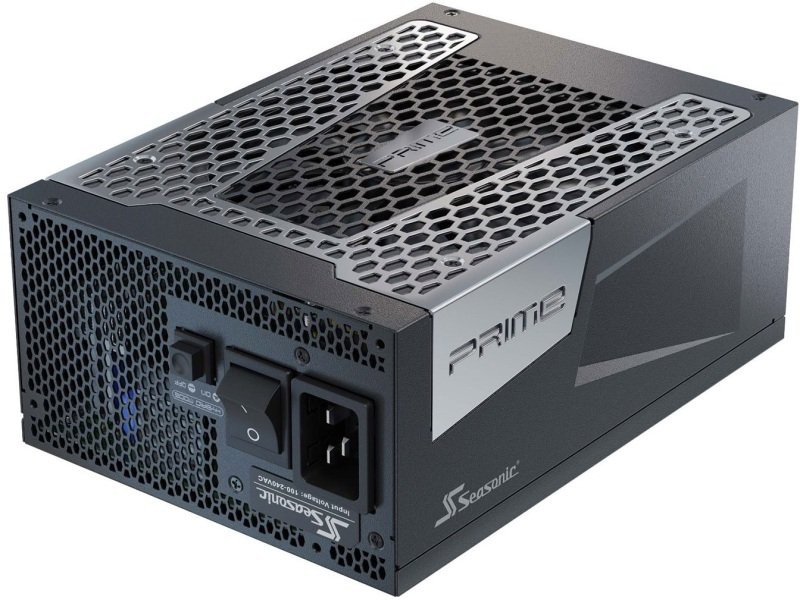

Seasonic PRIME TX 1600 Watt Full Modular 80+ Titanium PSU/Power Supply
Miscellaneous | |
|---|---|
| Compliant Standards | TUV, BSMI, CB, CCC, RoHS, WEEE, cTUVus, REACH, EAC, ErP Lot 6 2013 Ready |

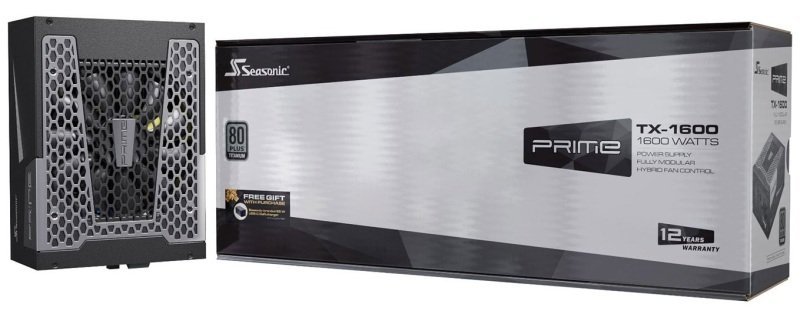

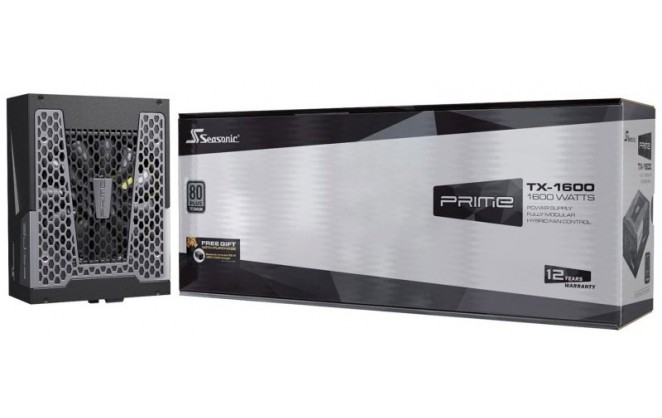

| Included Accessories | Screws, case badge, cable ties, cable bag, cable combs, PSU bag, PSU tester |
| MTBF | 150,000 hours |

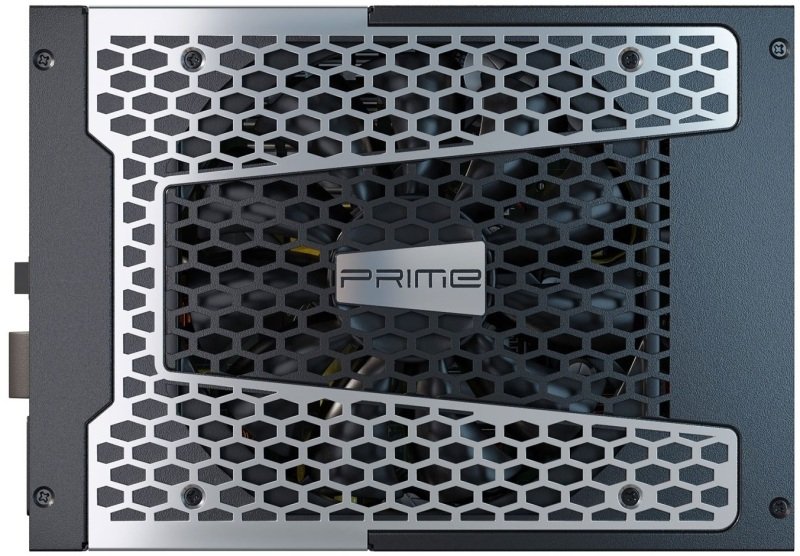

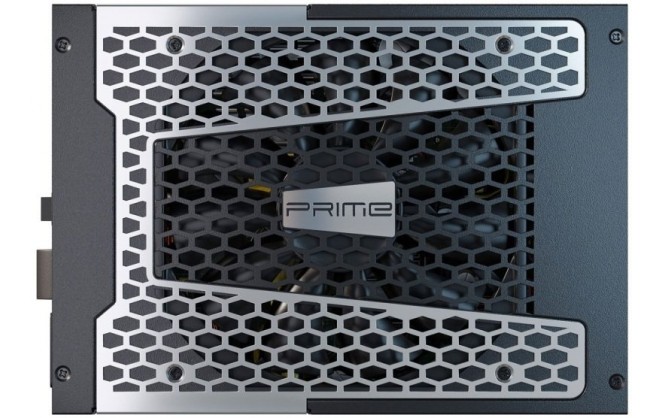

| Cooling System | 135 mm fan |
| Features | Overheat protection, gold-plated terminals, over current protection, over voltage protection, overpower protection, undervoltage protection, short-circuit protection, Multi-GPU Technologies Supported, fluid dynamic bearing cooling fan, Premium Hybrid Fan Control, fully modular |
Environmental Standards | |
| ENERGY STAR | Yes |
Manufacturer Warranty | |
| Service & Support | Limited warranty - 12 years |
Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
Dimensions & Weight | |
| Width | 15 cm |
| Depth | 21 cm |
| Height | 8.6 cm |
General | |
| Device Type | Power supply - internal |
| Specification Compliance | ATX12V / EPS12V |
| PSU Form Factor | ATX |
Power Device | |
| Input Voltage | AC 100-240 V |
| Frequency Required | 50 - 60 Hz |

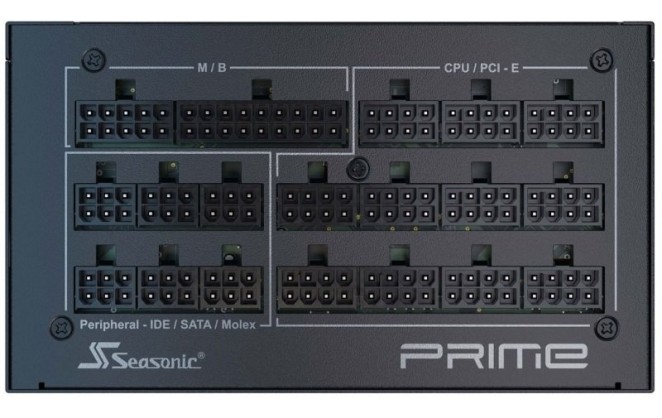

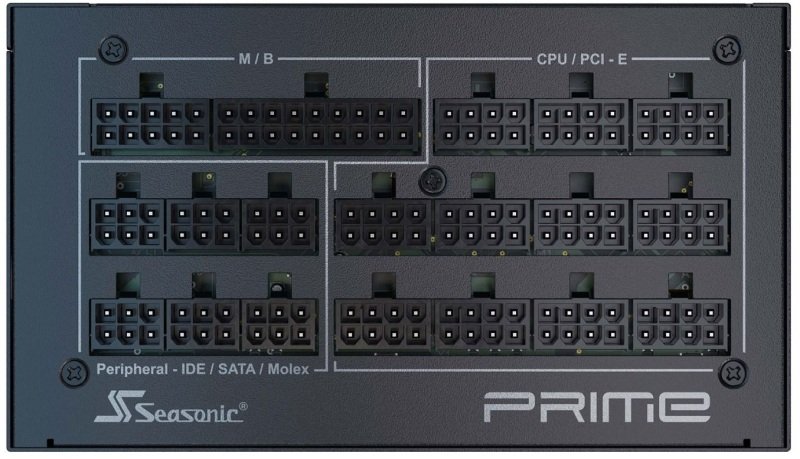

| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section ¦ 3 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 8 x 8 pin PCI Express power with detachable 2 pin section ¦ 3 x 4 PIN internal power ¦ 10 x 15 pin Serial ATA power ¦ 2 x 12+4 pin PCI Express 5.0 power |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 1600 Watt |
| Output Current | +3.3V - 25 A ¦ +5V - 25 A ¦ +12V - 133.3 A ¦ -12V - 0.5 A ¦ +5VSB - 3 A |
| Modular Cable Management | Yes |
| 80 PLUS Certification | 80 PLUS Titanium |
