The new VERTEX Series units will provide 1200 W / 1000 W / 850 W and 750 Watts of true power in both Platinum and Gold levels of efficiency, with all the best features you can expect from a Seasonic power supply.
The Vertex PX Series achieves 80 PLUS® Platinum certification with its 92 % efficiency at 50 % system load.
Seasonic’s latest Vertex Series is designed and built to power new PC components requiring the new ATX 3.0 and PCIe 5.0 standards.
Seasonic’s vast experience in designing the most silent and efficient power supplies on the market was translated into the development of Hybrid Mode; a state-of-the-art fan control that enables users to keep the overall fan noise at the lowest possible level.
High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan.
When the fan shaft rotates, high pressure oil drifts along the grooves of the bearing sleeve to generate a thin layer of lubrication between the bearing faces. As the speed increases, so does dynamic oil pressure and the shaft is lifted from the bearing to create smooth, effortless rotations. The herringbone shape of the groves helps to efficiently channel the lubricant and avert leakage.

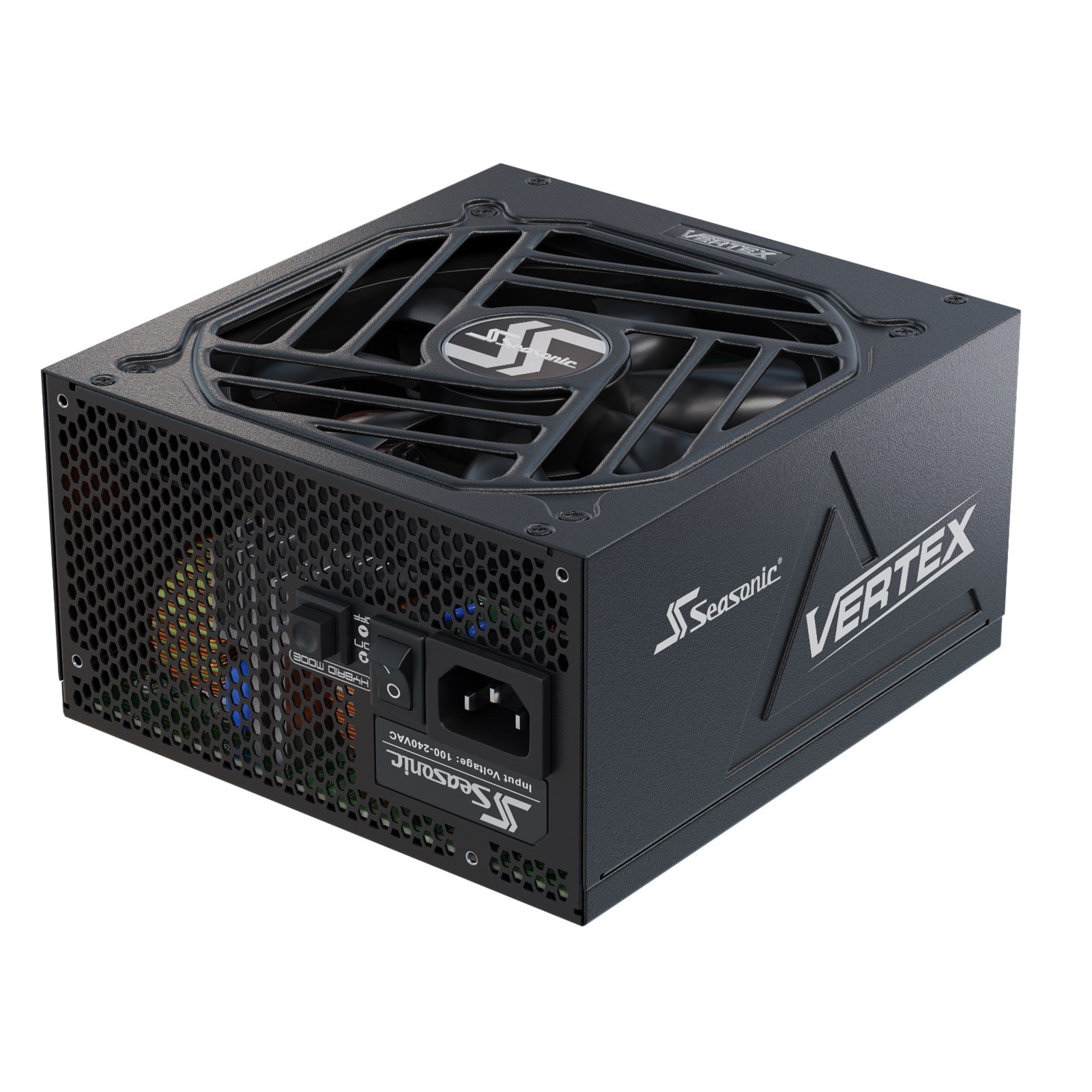

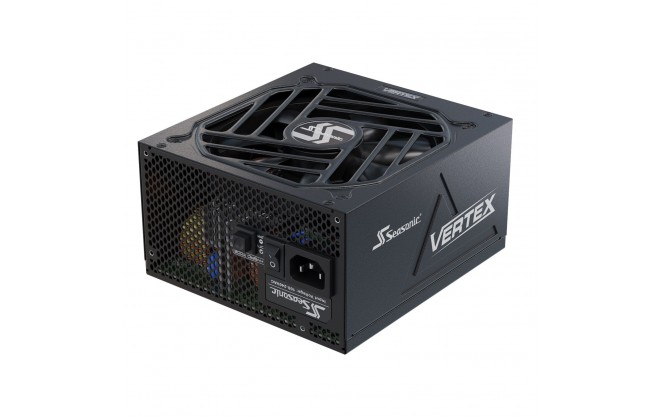

Seasonic VERTEX PX 1200W Modular Power Supply 80 Plus Platinum

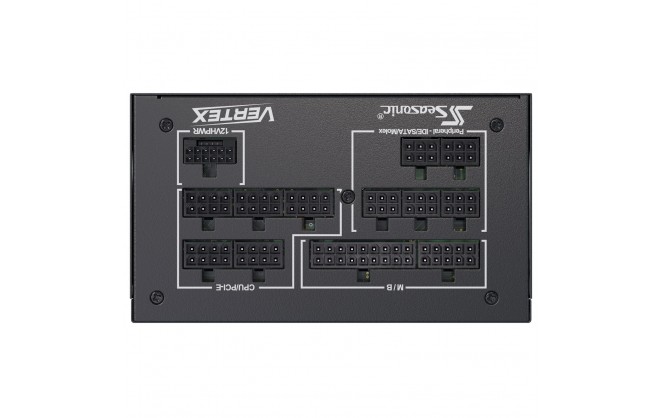

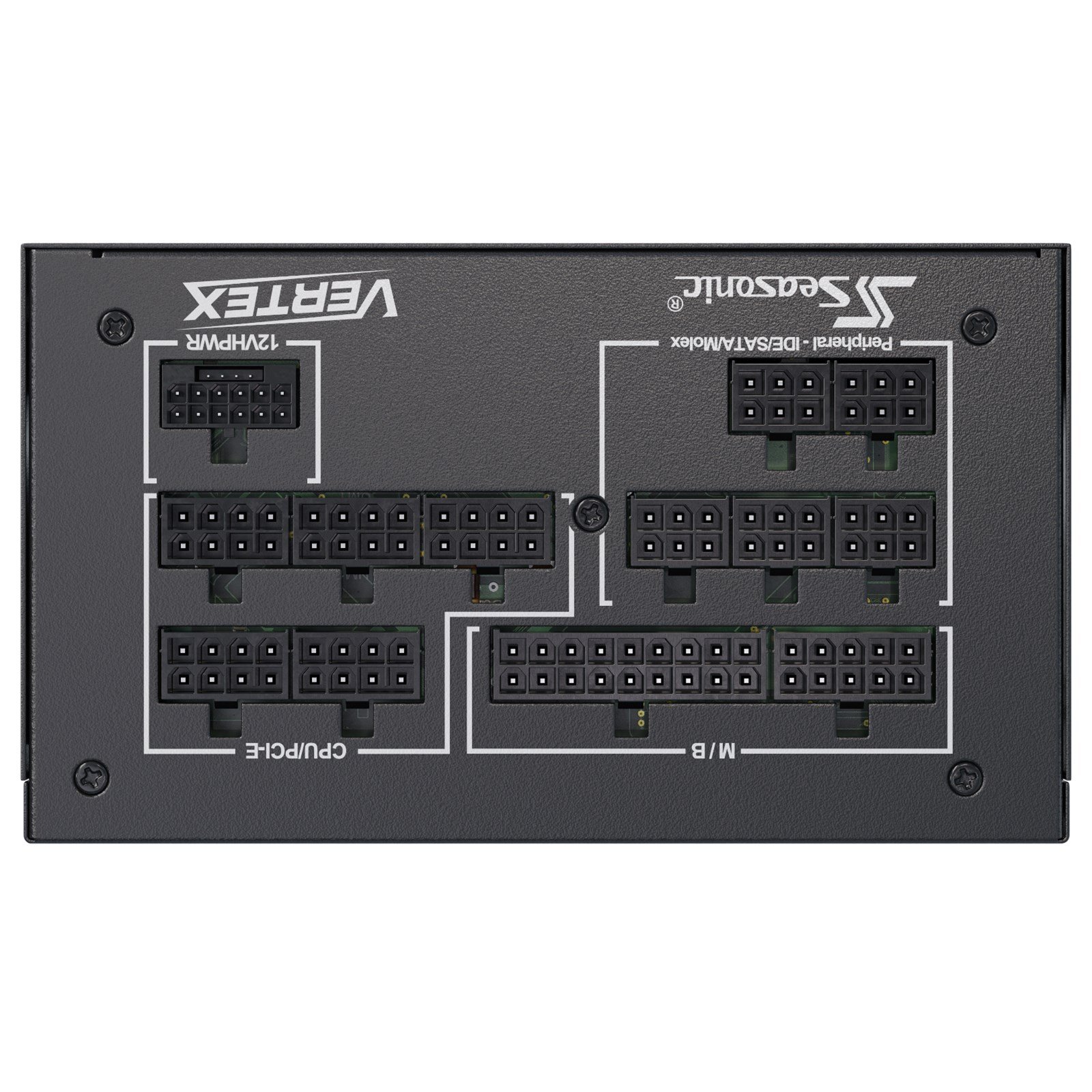

Interfaces/Ports
| SATA Connectors | 18 |
| CPU Connectors | 2 x 4+4-pin EPS |
| PCI Connectors | 3 x 6+2-pin PCIe |
| Motherboard Connectors | 1 x 24-pin ATX |
| Molex Connectors | 3 |
| Other Connectors | 1 x 12VHPWR |
Compliance
| ATX Spec | ATX 3.0 |
| Standards | 80 PLUS Platinum Certified cTUVus, TUV, CB, CCC, BSMI, EAC, CE Energy Star, RoHS, WEEE, ErP Lot 6, REACH |
| Safety | OPP, OVP, UVP, OCP, OTP, SCP |
Electrical
| Voltage | 100 ~ 240 V AC |
| Power | 1200 W |
| Frequency Range | 50 ~ 60 Hz |
| Power Cord | Yes |
Environmental
| Operating Temperature | 0 ~ 50 °C |
Physical
| Form Factor | ATX Power Supply |
| Case Colour | Black |
| Width | 150 mm |
| Depth | 160 mm |
| Height | 86 mm |
Warranty
| Warranty | 12 Years |
Key Features
| Modular Cables | Modular |
| 80Plus Rated | 80 Plus Platinum |
| PSU Form Factor | ATX |
| PCIe Connectors | 3 |
| Motherboard (EPS) Power Connectors | 2 x 8-Pin |
| PCIe Pin Type | 6+2-Pin |
| PSU Depth | 160 mm |
| CPU Power Pins (male) | 16 |
| PCIe Power Pins (male) | 24 |
| 12VHPVR 16-pin Connector | Yes |
Item Details
| Manufacturer | Seasonic |
| Manufacturer Code | VERTEX PX-1200 |
| EAN | 4711173877769 |
| Condition | New |
