Asrock DeskMeet B660 Socket 1700 Barebone PC SP

  • Part Number: 90BXG4C01-A10GA0W
  • Manufacturer: Asrock
  • Quickfind Code: 225010
  • Stock: Out Stock

Contact for availability

Product Features:
  • Condition: New
  • CPU Type Intel
  • Memory Type DDR4
  • Kit Type Barebones
  • Main Colour Black
  • Series DeskMeet
+ Read More Information

Share:

Product Description

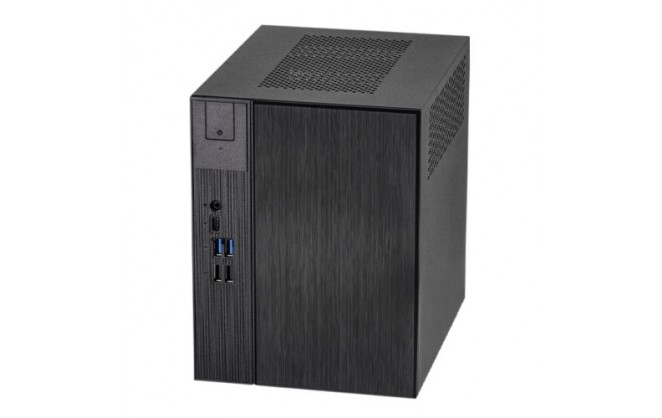

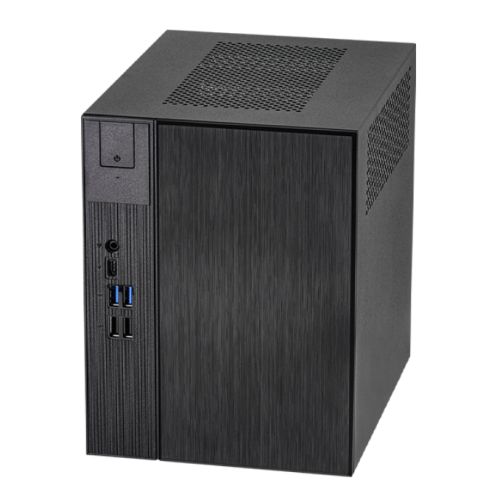

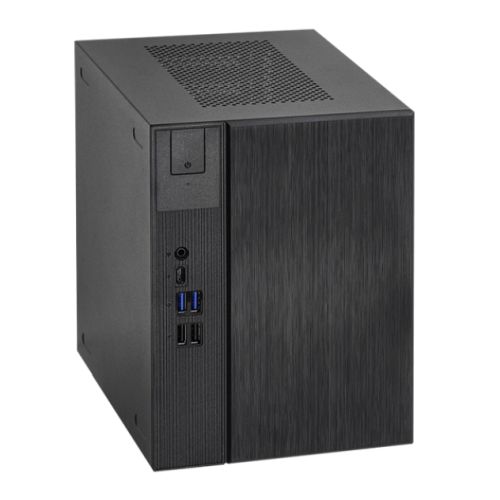

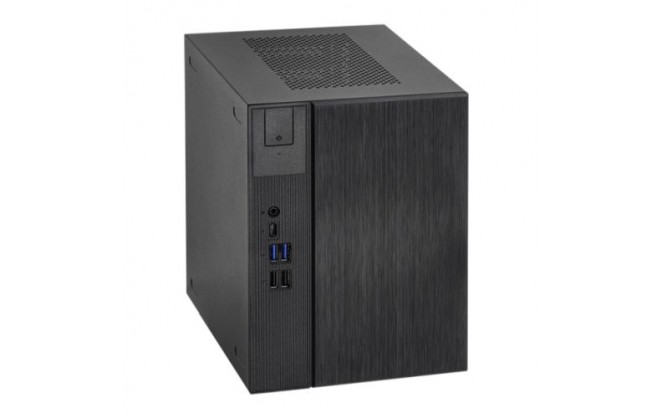

With just 8 liters of volume, DeskMeet is a powerful and compact desktop PC designed to deliver the best experience for daily computing, gaming, home entertainment, content creation and business. It supports the desktop processor and the graphics card under 20 cm long. This chassis can stand either vertically or horizontally to fit into any workspace and give users a neat and tidy desk space.


  • Supports 12th Gen Intel Core™ Processors (LGA1700)
  • Supports MAX Height <54mm CPU Cooler
  • Supports 4 x DDR4-3200MHz DIMMs, up to 128GB
  • 1 x PCIe 4.0 x16
  • Graphics Output Options: DisplayPort, HDMI & D-Sub
  • 3 x SATA3
  • 1 x Hyper M.2 (PCIe Gen4 x4 & SATA3)
  • 1 x Hyper M.2 (PCIe Gen4 x4)
  • 1 x USB 3.2 Gen1 Type-C Port
  • 4 x USB 3.2 Gen1 Type-A port (2 Front, 2 Rear)
  • 4 x USB 2.0 Type-A port (2 Front, 2 Rear)
  • 1 x M.2 Key-E for Wi-Fi
  • 500W power supply (80+ Bronze)
  • 8 Liter compact size





Processing Power

DeskMeet B660 supports 12th Gen Intel® Core™ Processors that delivers ultimate performance for efficient work and demanding applications.





Incredible Memory Performance

Up to 128GB of four DIMM memory clocked at 3200MHz, DeskMeet provides a faster multitasking experience and a responsive system.





Heatsink

DeskMeet features a dedicated MOSFET heatsink that allows it to dissipate excess heat and operate at the optimum temperature for reliable performance.





Ready for Dual slot Graphics Card

DeskMeet can fit a dual slot graphics card (up to 20cm or 7.87 inches) which is an option for those requiring advanced graphics performance for heavy visual tasks, such as gaming, 3D rendering and video editing.





Efficient Airflow Design

DeskMeet features air vents at the top, left side and bottom of the chassis, allowing for maximum heat removal and constant airflow.
In addition, the custom intake fan inside the power supply can pull in cool air to dissipate heat from the CPU and VRM. Such optimized thermal design enables the system to run cool and quiet without compromising performance.





Expand the Configurations Potential

With a flexible and expandable design, DeskMeet can be easily configured to meet users now and future needs. The mounting holes on top of the frame provide four options, 1 x 3.5” HDD, 2 x 2.5” SSD/HDD, 1 x 120mm fan or 1 x single radiator liquid cooler.





Up to Five Storages

DeskMeet B660 provides up to 5 storages including 3 x SATA 6Gb ports and 2 x Hyper M.2 slots with support of PCI Express 4.0 standard to speed up loading time for all your favorite apps.

M2_1 M.2 (2280) –PCIe Gen4 x4 & SATA3
M2_2 M.2 (2280) –PCIe Gen4 x4
3 x SATA 6Gb SSD/HDD





Easy to set up and upgrade

DeskMeet adopts a drawer chassis design so users can pull out the motherboard tray after removing one screw at the bottom. To keep up the system in the latest status, all the components can also be installed or upgraded with ease. DeskMeet provides a simple setup experience to save time and effort.





Keep Your 3.5” HDD

DeskMeet can be equipped with 2 x 3.5” HDD at most. When users replace the aged tower PC with DeskMeet, they can install their old 3.5” HDD to preserve personal data.





ATX Power Supply

DeskMeet includes an internal 500W 80 Plus Bronze power supply with custom length cables to save space and make cable management easier. The fan in the power supply will draw in the cool air to CPU cooler which is the best way to increase airflow and ensure DeskMeet operates at its utmost efficiency of heat dissipation.
Technical Specification

Asrock DeskMeet B660 Socket 1700 Barebone PC SP

Chassis
Asrock DeskMeet
Tower / Small Form Factor
Small Form Factor
Processor
None
Processor Details
Supports 12th Gen Intel Core Processors (LGA1700)
Supports Intel CPU Cooler (Max. Height < 54mm)
Chipset
Intel B660
Graphics
Supports a discrete Dual slot Graphics card up to 20cm
Memory
None
Memory Details
4 x DDR4 DIMM (Dual Channel)
Max. 128GB
Supports 3200/2933/2800/2666/2400/2133 non-ECC
Hard Drive
None
SSD Drive
None
Optical Drive
None
Supported Drives
1 x 3.5" SATA HDD
2 x 2.5" SATA SSD/HDD
1 x Hyper M.2 (2280) - SATA & PCIe
1 x Hyper M.2 (2280) - PCIe
Operating System
No O/S
Front I/O
1 x USB 3.2 Gen1 Type-C
2 x USB 3.2 Gen1 Type-A
2 x USB 2.0 Type-A
1 x Headphone/Headset Jack

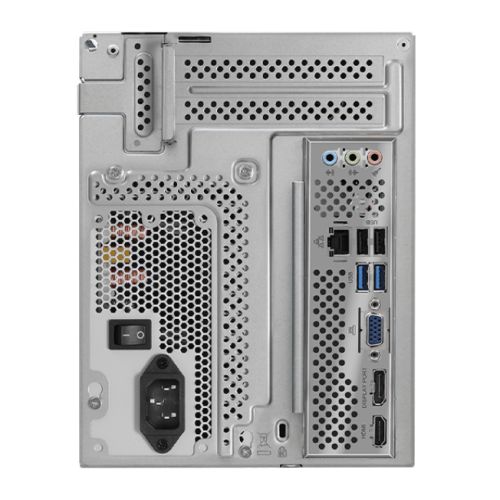

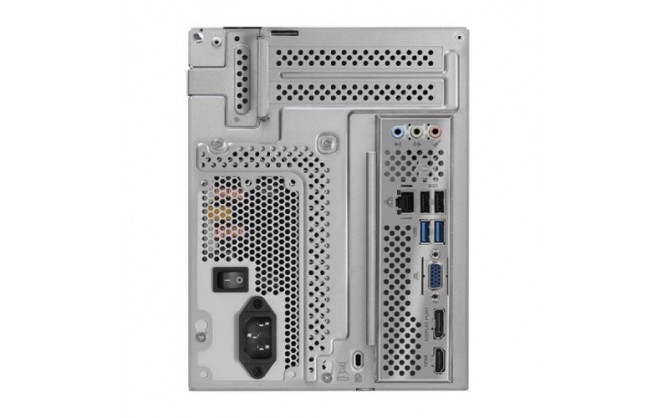

Back I/O
1 x D-Sub
1 x HDMI
1 x DisplayPort 1.4
2 x USB 2.0
2 x USB 3.2 Gen1 Type-A
1 x RJ-45 LAN Port
HD Audio Jacks
LAN
GB LAN
Wireless
-
Bluetooth
-
Sound
Realtek ALC897 Audio Codec
Expansion
1 x Chassis Intrusion Header
1 x CPU Fan Connector (4-pin)
1 x Chassis/Water Pump Fan Connectors (4-pin)
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector
1 x Front Panel Header
1 x USB 2.0 Headers (Support 2 USB 2.0 ports)
Power Unit
500W 80+ Bronze
Keyboard and Mouse
No
Dimensions
8 litres
168 (W) x 219.3 (D) x 218.3(H) mm (excl. Protrusions)
168 (W) x 236.1 (D) x 221.6(H) mm (incl. Protrusions)
Additional Features
See Overview / Videos
Accessories
Quick Installation Guide
2 x SATA Data Cables
1 x Screws Package
Package Weight
4.2000 kg
Package Type
Retail
