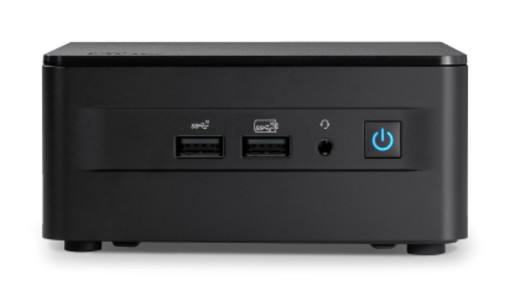

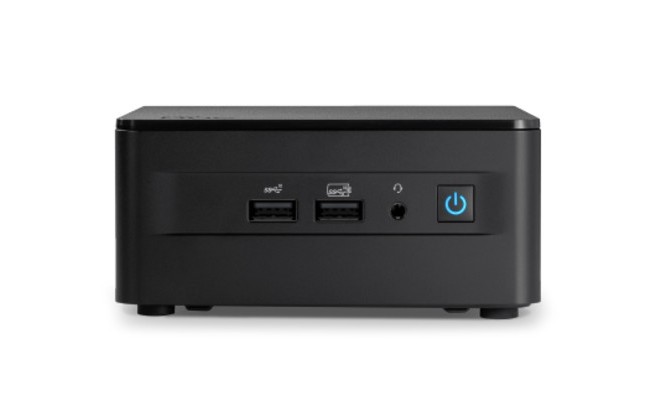

Asus NUC 13 Pro Kit Barebone PC with Integrated Intel Core i3-1315U CPU ES

  • Part Number: 90AB3ANH-MR4130
  • Manufacturer: ASUS
  • Quickfind Code: 225026
  • Stock: In Stock

£269.99 ex. vat
£323.99 inc. vat

Product Features:
  • Condition: New
  • GPU Intel UHD
  • Memory Type DDR4 SODIMM
  • Series NUC
  • Cores 6
  • Speed 4.5GHZ
  • CPU Type Intel
  • Kit Type Barebones inc CPU
  • GPU Manufacturer Intel
  • Main Colour Black
+ Read More Information

Share:

Product Description

Top-Tier Performance for the Home and Office

Introducing Arena Canyon, the NUC 13 Pro from Intel and the latest addition to Simply NUC’s 4×4 business NUC lineup. Arena Canyon offers the perfect combination of size, performance, reliability, and versatility needed to drive modern businesses. The NUC 13 Pro delivers outsized performance in its 4×4 form factor with the latest in technology, from Intel’s 13th Gen Raptor Lake 1340P processor to Thunderbolt 4 and Wi-Fi 6E, delivering top-tier performance for the home and office.

Protected and Productive, 24/7

The NUC 13 Pro i5 is a feature-rich device with a plethora of I/O options, equipped with dual HDMI 2.1 ports, dual Thunderbolt 4, and four USB-A ports as standard. Further expand the functionality of your unit via the replaceable lid on both the H and K models, making Arena Canyon adaptable to your specific use case. Select Arena Canyon SKUs comes with Intel vPro technology, making it ideal for office deployments with its remote manageability and added hardware-level security features. From performing remote updates to securing your files from intrusion, the NUC 13 Pro will keep you protected and productive, 24/7.

A Clean, Seamless, and Powerful Mini PC Experience

Networking is a breeze with Arena Canyon’s 2.5Gb LAN port and can be expanded to add an additional 1Gb port via the replaceable lid, allowing connection redundancy and increased networking capabilities, with the added perk of an additional USB 3.0 port. Not a fan of cables? No problem. Arena Canyon comes equipped with Wi-Fi 6E and Bluetooth 5.3, allowing you to ditch the cables to get a clean, seamless, and powerful mini PC experience.

Technical Specification

Asus NUC 13 Pro Kit Barebone PC with Integrated Intel Core i3-1315U CPU ES

PRODUCT SUMMARY
Brand
Asus
SKU
10431904
Manu Part #
90AB3ANH-MR4130
EAN
5032037267823
DESIGN
ARK ID
233096
Status
Launched
On/off switch
Yes
Cooling type
Active
LED indicators
Yes
Product colour
Black
Chassis type
UCFF
Product codename
Arena Canyon
Product family
Intel NUC
Product type
Mini PC barebone
WEIGHT & DIMENSIONS
Depth
112 mm
Height
54 mm
Width
117 mm
OTHER FEATURES
Number of SATA connectors
1
Additional headers
Front_panel (PWR, RST, 5V, 5Vsby, 3.3Vsby); Internal 2x2 power connector
DC input voltage
12 - 20 V
HDD size
2.5"
Launch date
Q1'23
EXPANSION SLOTS
PCI Express slots version
4
PERFORMANCE
Export Control Classification Number (ECCN)
5A992C
Commodity Classification Automated Tracking System (CCATS)
G157815L2
Compatible operating systems
Windows 10 IoT Enterprise*|Ubuntu*|Linux*
Operating system installed
No
Motherboard form factor
UCFF
Linux operating systems supported
RedHat EL Linux, Yes
Windows operating systems supported
Windows 10 IoT Enterprise, Windows 11 x64
MEMORY
Supported memory clock speeds
3200 MHz
Memory channels
Dual-channel
Supported memory types
DDR4-SDRAM
ECC
No
Memory voltage
1.2 V
Number of DIMM slots
2
Memory slots type
SO-DIMM
Maximum internal memory
64 GB
Non-ECC
Yes
Number of memory slots
2
PORTS & INTERFACES
Combo headphone/mic port
Yes
Ethernet LAN (RJ-45) ports
1
Thunderbolt ports quantity
2
Thunderbolt 4 ports quantity
2
HDMI ports quantity
1
HDMI version
2.1
DC-in jack
Yes
Serial port via internal header
No
Number of SATA III connectors
1
USB ports quantity
4
DisplayPorts quantity
1
PROCESSOR
Built-in processor
Yes
Processor boost frequency
4.5 GHz
Processor model
i3-1315U
Efficient-core boost frequency
3.3 GHz
Processor cores
6
Processor family
Intel® Core™ i3
Processor codename
Raptor Lake
Processor manufacturer
Intel
Processor threads
8
Processor cache
10 MB
Performance cores
2
CPU configuration (max)
1
Efficient cores
4
Processor generation
Intel Core i3-13xxx
Performance-core boost frequency
4.5 GHz
STORAGE
Number of storage drives supported
3
Storage drive interface
PCI Express, Serial ATA III
SSD form factor
M.2
Supported storage drive types
SSD
Storage drive sizes supported
M.2,2.5
NVMe
Yes
NETWORK
Bluetooth
Yes
LAN controller
Intel I226-V
Ethernet LAN
Yes
WLAN controller model
Intel Wi-Fi 6E AX211
Wi-Fi
Yes
Bluetooth version
5.3
Wi-Fi standards
Wi-Fi 6E (802.11ax)
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
PROCESSOR SPECIAL FEATURES
Intel ME Firmware Version
16.1
Intel® Optane™ Memory Ready
No
Intel® Platform Trust Technology (Intel® PTT)
Yes
Intel Trusted Execution Technology
Yes
Embedded options available
No
Intel® High Definition Audio (Intel® HD Audio)
Yes
Execute Disable Bit
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Intel® AES New Instructions (Intel® AES-NI)
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel Virtualization Technology (VT-x)
Yes
Intel Flex Memory Access
Yes
AUDIO
Built-in speaker(s)
No
PACKAGING CONTENT
Power cord included
Yes
LOGISTICS DATA
Harmonized System (HS) code
8471500150
GRAPHICS
On-board graphics card
No
Graphics card family
Intel
Maximum resolution
7680 x 4320 pixels
On-board graphics card model
Intel® UHD Graphics
Number of displays supported
4
POWER
Power supply type
External AC adapter
