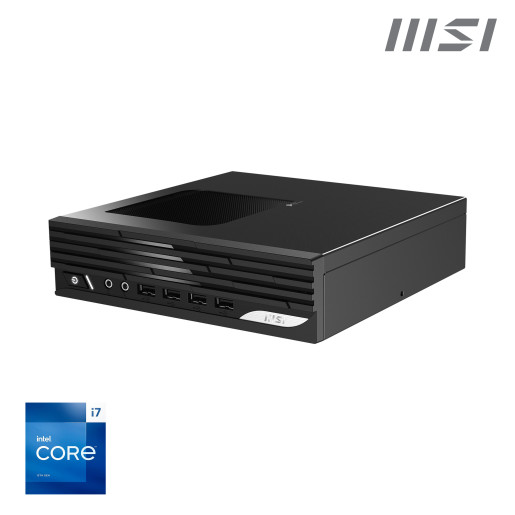

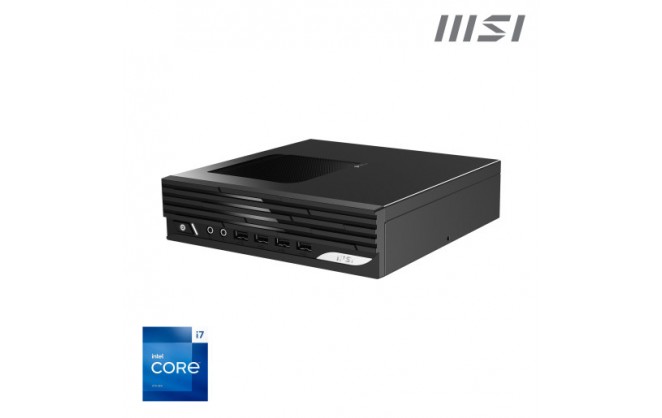

MSI MSI PRO DP21 13M Barebone PC with Integrated Intel Core i7-13700 CPU ES

  • Part Number: PRO DP21 13M I7 13700 BB
  • Manufacturer: MSI
  • Quickfind Code: 225014
  • Stock: In Stock

£446.89 ex. vat
£536.27 inc. vat

Product Features:
  • Condition: New
  • GPU Intel UHD 770
  • Memory Type DDR4 SODIMM
  • Series SFF Barebones PC
  • Cores 16
  • Speed 5.2GHZ
  • CPU Type Intel
  • Kit Type Barebones inc CPU
  • GPU Manufacturer Intel
  • Main Colour Black
+ Read More Information

Share:

Product Description

"MSI PRO DP21 13M Mini PC (SFF): Be Your Window to the World

The MSI PRO DP21 13M is a small yet powerful mini-desktop with a compact 2.3L design suitable for commercial office work or use as home-theatre/entertainment PC (supports UHD/4K 60Hz display output & dual-monitor setups).

The PRO DP21 13M I7 13700 BB barebone system equipped with an Intel 13th Gen Core i7-13700 processor, but does not include required DDR4 memory, storage, or software. Features Intel Wi-Fi 6E & Bluetooth 5.3 connectivity.

The easy-to-upgrade SFF case can house both M.2 (with auto switch) & 2 x 2.5-inch SSD/HDD storage, as well as up to 64 GB of system memory (2 x DDR4 SO-DIMMs), and is VESA-mountable for a cleaner desktop.

Front & rear I/O include Intel 1Gbps ethernet LAN RJ45, Mic-in, Headphones-out, 8 x USB (3.2 Gen 2 Type-A & C, 3.2 Gen 1 Type-A, 2.0 Type-A), and HDMI 2.0 & DP 1.4 ports. The PRO DP21 13M also contains a COM port for connecting to POS devices. Trusted Platform Module 2.0 (dTPM2.0) technology provides security for storing sensitive information."

Technical Specification

MSI MSI PRO DP21 13M Barebone PC with Integrated Intel Core i7-13700 CPU ES

Brand
MSI
SKU
10393283
Manu Part #
PRO DP21 13M I7 13700 BB
EAN
4711377071062
FEATURES
MSI recommends Windows 11 Pro for business
Up to Intel® Core™ i7-13700 Processors
Support 4K UHD Display
Wi-Fi 6 (Optional) puts more emphasis on transmission security with speed up to 2.4Gbps
With a complete array of I/O ports, it can connect all devices that you need and support dual display
Get all the performance benefits from USB 3.2 Gen 2 which combines with the convenience of the reversible USB Type-C connector and a fast USB 3.2 Gen 2 Type-A port
Easy to access and upgrade components to keep the system up to date with the latest hardware
TPM design secures your confidential data with encryption keys
MSI Cloud Center app brings you a private cloud and helps backup files of your mobile devices (Android & iOS)
Customize your own user mode and increase the efficiency with MSI Center app
Supports standard VESA-mount
DESIGN
VESA mounting
Yes
Panel mounting interface
100 x 100 mm
Cooling type
Active
Product colour
Black
Chassis type
2.3L sized PC
Product type
Mini PC barebone
PROCESSOR
Processor lithography
10 nm
Built-in processor
Yes
Processor boost frequency
5.2 GHz
Processor model
i7-13700
Efficient-core boost frequency
4.1 GHz
Processor cores
16
Processor family
Intel® Core™ i7
Processor manufacturer
Intel
Processor threads
24
Processor cache
30 MB
Performance cores
8
Efficient cores
8
Processor frequency
5.2 GHz
L2 cache
24 MB
Processor generation
13th gen Intel® Core™ i7
Performance-core boost frequency
5.1 GHz
WEIGHT & DIMENSIONS
Depth
208 mm
Package depth
382 mm
Package weight
2.75 kg
Package width
275 mm
Height
54.8 mm
Package height
125 mm
Width
204 mm
Weight
1.27 kg
MEMORY
Supported memory clock speeds
2666,3200 MHz
Memory channels
Dual-channel
Memory slots type
SO-DIMM
Maximum internal memory
64 GB
Number of memory slots
2
PORTS & INTERFACES
Ethernet LAN (RJ-45) ports
1
DVI port
No
DisplayPort version
1.4
COM ports quantity
1
HDMI ports quantity
1
HDMI version
2
DC-in jack
Yes
Microphone in
Yes
Headphone outputs
1
DisplayPorts quantity
1
STORAGE
Number of storage drives supported
3
Storage drive interface
M.2, Serial ATA III
SSD form factor
M.2
Supported storage drive types
HDD & SSD
Storage drive sizes supported
2.5,M.2
NVMe
Yes
NETWORK
Bluetooth
Yes
LAN controller
Realtek RTL8111H
Ethernet LAN
Yes
WLAN controller model
Intel Wi-Fi 6E AX211
Wi-Fi
Yes
Bluetooth version
5.3
Wi-Fi standards
Wi-Fi 6E (802.11ax)
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
PACKAGING CONTENT
Mouse included
No
Display included
No
Power cord included
Yes
AC adapter included
Yes
Drivers included
Yes
Quick start guide
Yes
Keyboard included
No
AUDIO
Built-in speaker(s)
No
POWER
Number of power supply units
1
Power supply
120 W
Power supply type
External AC adapter
PERFORMANCE
Number of processors supported
1
Compatible processor series
Intel Core i7 13th Gen
Trusted Platform Module (TPM)
Yes
Operating system installed
No
Motherboard form factor
mini ITX
Motherboard chipset
Intel H610
GRAPHICS
On-board graphics card
Yes
Graphics card family
Intel
On-board graphics card model
Intel® UHD Graphics
Number of displays supported
3
