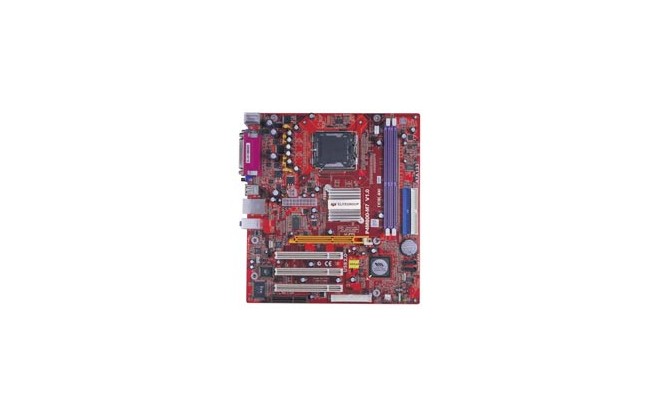

Elite (ECS) P4M800-M Intel Motherboard Socket 478 P4M800 800FSB DDR400 Onboard VGA Sound LAN micro ATX

  • Part Number: P4M800-M
  • Manufacturer: Elite (ECS)
  • Quickfind Code: 445162
  • Stock: Out Stock

Contact for availability

Product Features:
  • Condition: New
  • Legacy Y
  • Socket Type 478
  • Form Factor mATX
  • Memory Type DDR
  • CPU Type Intel
+ Read More Information

Share:

Product Description
Elite (ECS) P4M800-M Intel Motherboard Socket 478 P4M800 800FSB DDR400 Onboard VGA Sound LAN micro ATX Description # Support the Intel Pentium 4 HT Processor 800MHz FSB and DDR400 # High-quality 6-channel audio brings a more vivid sound experience # Support SATA allows you to join several hard drives and increase data transfer by separating data (RAID 0) or by keeping 100% secure data duplication (RAID 1). Specifications General Dimensions Micro-ATX Size, 244mm*220mm Extra Information MEMORY Single-channel DDR memory architecture ? 2 x 184-pin DDR DIMM socket support up to 2 GB ? Support DDR400/333 2.5V DDR SDRAM GRAPHICS Integrated S3 UniChrome Pro 2D/3D Graphics ? Share memory : 64MB INTERNAL I/O CONNECTORS & HEADERS 1 x 20-pin ATX Power Supply Connector & 4-pin 12V Connector ? 1 x FDD connector ? 2 x IDE connectors ? 2 x Serial ATA connectors ? 2 x USB 2.0 headers ? 1 x Speaker header ? 1 x IrDA for SIR header ? 1 x Front panel switch/LED header ? 1 x F
