The ViewSonic TD2230 is a 22” (21.5” viewable) Full HD display with 10-point projected capacitive touch and SuperClear® IPS panel, offering a responsive, intuitive touch experience with high-quality image performance at wide viewing angles for multi-user interactive environments. Users can tap, swipe, slide, pinch and nudge their fingers directly on the touch screen during group activities. This display is ideal for use as an informative kiosk in hospitality, retail, healthcare and corporate sectors, utilising customised applications for simple touch interaction. It is also suitable for group studies at schools, encouraging interactive learning, or for families enjoying multimedia entertainment or gaming at home.
The TD2230 features a durable edge-to-edge, 7H glass treatment and an ergonomic design that allows the display to be adjusted or sit flat on the table, providing durable surface quality and a smooth touch experience.
10-Point Projected Capacitive Touch
Touch screens with projected capacitive touch can recognise up to 10 points of simultaneous contact, allowing for a highly accurate and ultra-responsive touch experience. With smooth and responsive touch capabilities, this touch display is ideal for multi-user interactive environments such as home entertainment, office, education, and commercial use.
SuperClear: Stunning Colour Performance & Wide-angle Viewing
Enjoy accurate and vivid colours with consistent levels of brightness no matter the vantage point. With SuperClear® IPS-type panel technology, this monitor delivers the same image quality whether you are looking at the screen from above, below, the front, or the side.
Frameless Design
Say goodbye to the thick, clunky plastic frames set over the edges of traditional monitors. This monitor features a frameless, edge-to-edge glass faceplate with an ultra-slim bezel beneath the glass. A frameless bezel design makes touch more effortless, perfect for multi-user experiences, encouraging interactive enjoyment with seamless contact.
Full HD 1080p Resolution
This monitor features Full HD 1920x1080 resolution for unbelievable pixel-by-pixel image performance. You’ll experience the most amazing clarity and detail whether while working, gaming, or enjoying the latest in multimedia entertainment.

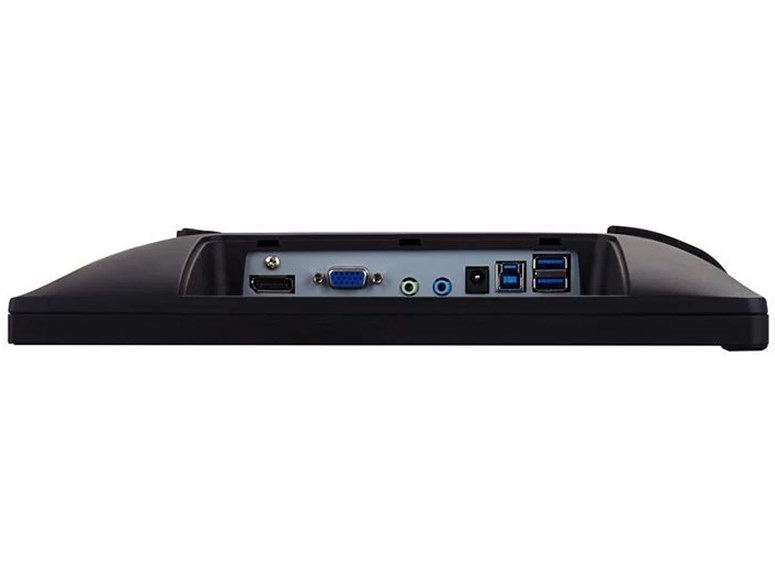

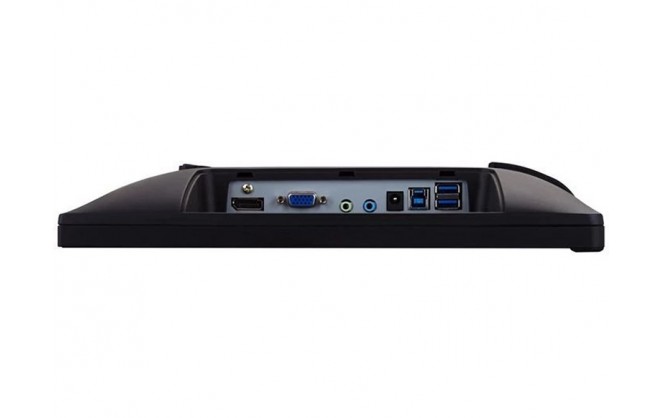

HDMI, DisplayPort and VGA Inputs for Flexible Connectivity
HDMI, DisplayPort and VGA inputs, enable users to connect to game consoles, media players, digital cameras, laptops, satellite boxes, and other high-definition devices.
Cross-platform Compatibility
Cross compatibility with a wide range of operating systems include Windows 10, and certain Android and Linux versions.
*The OS compatibility may vary depending upon the device, the OS modification, the apps and the surrounding user environment. Users are advised to check and confirm compatibility with their devices before making any purchase.
USB 3.0 Port High Speed Connectivity
The TD2230 features a USB 3.0 hub that delivers easy connectivity to a diverse range of storage devices, peripherals, and high-definition electronics. It provides a faster recharge rate, data transfer rate and versatile data transmission capabilities.

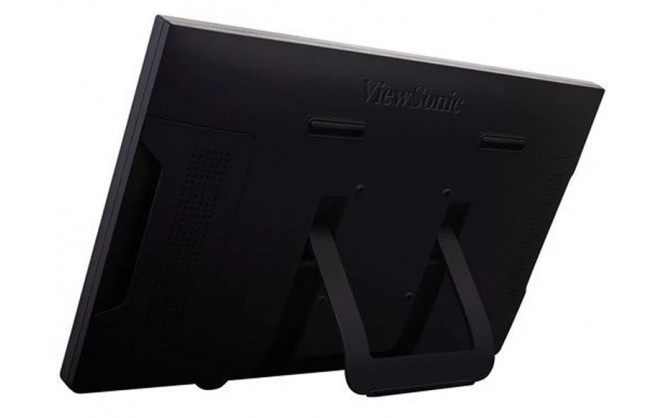

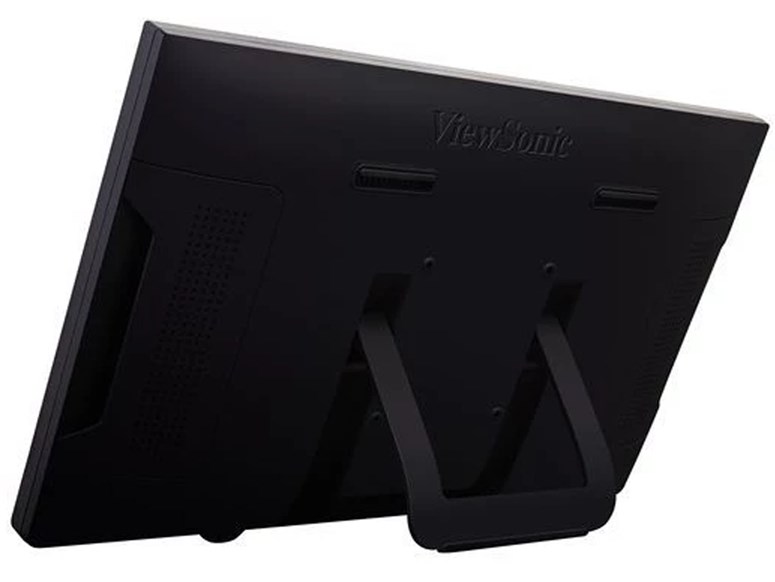

Bookstand Design with Flexible Angle Adjustment and Flat Stand Use
A bookstand design allows the screen to be tilted and adjusted from 20 to 70 degrees, or rest flat on a desk or table.
With a stable design, the monitor is ready to use and can be placed without worry of damage on any surface. This makes it perfectly suited for a variety of scenarios: at home, in school or at the office.
7H Scratch-resistant Surface Hardness
The TD2230 touch display is constructed with a 7H hardness protective glass that provides increased scratch-protection to deliver the safest and most durable touch experience. It prevents any heavy damage caused by fingers, nails, or styluses during touch operations, making it ideal for use in kiosks, educational settings, or other public environments.
Enhanced Viewing Comfort
Flicker-Free and a Blue Light Filter eye care technologies help to eliminate eye strain from extended viewing periods.
ViewMode: Superior Colour Rendering & Intuitive Settings
ViewSonic’s unique ViewMode feature offers “Game,” “Movie,” “Web,” “Text,” and “Mono” presets. These presets enhance gamma curve, colour temperature, contrast, and brightness to deliver an optimised viewing experience for different screen applications.
Dual Integrated Stereo Speakers
Designed with dual integrated speakers, this monitor combines incredible screen performance with stereo sound for an immersive multimedia experience.
VESA-mountable Design
It features a 100 x 100mm VESA-mountable design that allows you to mount the display on a monitor stand or on a wall, depending on your specific needs. With an easily detachable base, it’s easy to mount the display on its new stand or attach it to a wall mount.
ViewSonic TD2230 21.5 inch IPS Touchscreen Monitor
Display
| Screen Aspect Ratio | 16:9 |
| Screen Size | 21.5 in |
| Viewable screen size | 21.5 " |
| Screen Width | 476.64 mm |
| Screen Height | 268.11 mm |
| Screen technology | IPS Panel |
| Screen Construction | 7H |
| Brightness | 250 Lumens |
| View Angle (Horizontal - Max) | 178 ° |
| View Angle (Vertical - Max) | 178 ° |
| Contrast Ratio | 1,000:1 |
| Contrast Ratio - Dynamic | 50,000,000:1 |
| Resolution (Native) | 1920 x 1080 pixels |
| Resolution Type (Native) | Full HD |
| Response time | 5 ms |
| Backlight | Yes |
| HD Support | Yes |
| Aspect Ratio | 16:9 |
| 3D Display | No |
| Horizontal Frequency | Digital: 15 ~ 82 kHz Analog: 24 ~ 82 kHz |
| Vertical Frequency | 50 ~ 76 Hz |
Physical
| Display Type | Touchscreen |
| Form Factor | Monitor |
| Case Colour | Black |
| In The Box | Monitor Power Adapter Power Cable USB Upstream Cable HDMI Cable Audio Cable Quick Start Guide |
| Width | 490 mm |
| Depth | 47 mm |
| Height | 299 mm |
| Weight | 3.58 kg |
Mount
| Wall Mountable | Yes |
| Wall Mount | VESA 100 x 100 mm |
| Tilt (Forward/Backward) | Yes |
| Tilt Range | -20 ~ +70 ° |
| Swivel (Left/Right) | No |
| Height Adjustable | No |
| Pivot (Rotation) | No |
Camera
| Webcam | No |
Warranty
| Warranty | 2 Years |
Sound
| Speakers | Yes |
Interfaces/Ports
| VGA In | 1 x D-Sub |
| USB Ports | 2 x USB 3.0 1 x USB upstream |
| Audio Line In Ports | 1 x 3.5mm Jack |
| Headphone Ports | 1 x 3.5mm Jack |
| HDMI Ports | 1 x HDMI 1.4 |
| DisplayPort In | 1 x DisplayPort 1.2 |
System
| Plug and Play | Yes |
Electrical
| Electrical Power Consumption | 25 W |
| Electrical Power Consumption Standby | 19 W |
| Voltage | 100 ~ 240 V |
| Electrical Frequency | 50 ~ 60 Hz |
| Power Adaptor Type | External |
| Power Supply | Yes |
Compliance
| Certifications | cULus, FCC-B, ICES003, Energy Star 8.0, EPEAT Bronze, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BIS, CCC, China RoHS, China Energy Label, CECP |
Environmental
| Operating Temperature | 0 ~ 40 °C |
| Operating Humidity | 20 ~ 90 $ |
Key Features
| VESA Mountable | Yes |
| Built-in Speakers | Yes |
| Hard Glass Coating | Yes |
| VGA Connection | Yes |
| DVI Connection | No |
| HDMI Connection | Yes |
| Touchscreen | Yes |
| Panel Technology | IPS |
| 3D Ready | No |
| Power Source | Mains Powered |
| LED Backlight | Yes |
| Disk Form Factor | 3.5 |
| Gaming | No |
| Projection Aspect Ratio | 16:9 |
| Display Model in Showroom | No |
| DisplayPort Connection | Yes |
| Screen Type | Full HD (1080p) |
| FreeSync | No |
| Curved Display | No |
| Thunderbolt Connection | No |
| HDR Support | No |
| Built-in USB Hub | USB 3.0 |
| Refresh Rate | 60 Hz |
Graphics Device
| G-Sync | No |
Item Details
| Manufacturer | ViewSonic |
| Manufacturer Code | TD2230 |
| EAN | 766907842418 |
| Condition | New |
