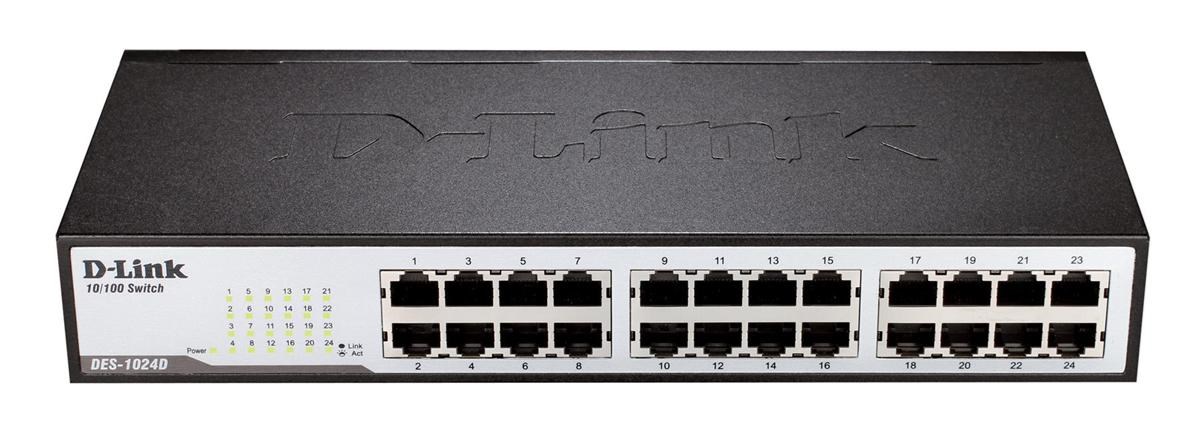

DLink DES-1024D 24-Port Desktop Switch

  • Part Number: DES-1024D/B
  • Manufacturer: D-Link
  • Quickfind Code: 606018
  • Stock: In Stock

£33.99 ex. vat
£40.79 inc. vat

Product Features:
  • Condition: New
  • Connection 10/100
  • Type Unmanaged
  • Number of Ports 24
  • Main Colour Black
+ Read More Information

Share:

Product Description

The DES-1024D is an unmanaged 10/100Mbps switch designed to enhance workgroup performance while providing a high level of flexibility. Powerful yet easy to use, this device allows users to simply plug any port to either a 10Mbps or 100Mbps network to multiply bandwidths, boost response time and satisfy heavy load demands. The switch comes with 24 10/100Mbps ports, allowing a small workgroup to flexibly integrate to Ethernet and Fast Ethernet. These intelligent ports detect the network speed and auto-negotiate between 100BASE-TX and 10BASE-T, as well as between full and half-duplex. All ports support flow control. This function minimizes dropped packets by sending out collision signals when the port's receiving buffer is full.

Main Features

  • 24 10/100Mbps ports
  • Full/half duplex support for each port
  • MDI uplink port for easy expansion
  • Auto-learning of network configuration
  • Flow control in full duplex mode for protection against data loss
  • Back pressure in half duplex mode
  • RAM buffer dynamically allocated for each port



Technical Specification

DLink DES-1024D 24-Port Desktop Switch

Memory

Buffer Memory0.32 MB

Performance

MAC Addresses8,000
Packet Forwarding Rate100 Mbps port: 148,810pps • 10 Mbps port: 14,880 pps
TopologyStar

Interfaces/Ports

Network Speeds Supported10/100 MBps
Full Duplex CapabilitiesHalf or Full on All Ports
Number of Fixed Ports24 port(s)
Fixed Port Speed10/100 Mbps
Fixed Ports/Connectors24 x RJ-45

Compliance

Standards ComplianceIEEE 802.3 10BASE-T Ethernet • IEEE 802.3u 100BASE-TX Fast Ethernet • ANSI/IEEE 802.3 NWay auto-negotiation

System

Management CapabilitiesUnmanaged
CertificationsEmission (EMI): FCC Class A, CE Class A, VCCI Class A • Safety: CUL, CB
Ethernet Switching FeaturesIEEE 802.3 10BASE-T Ethernet; IEEE 802.3u 100BASE-TX FAST Ethernet; IEEE 802.3ab 1000BASE-T Gigabit Ethernet; ANSI/IEEE 802.3 NWay Auto-negotiation; IEEE 802.3x Full Duplex Flow Control (Requires server Adaptor to also support Flow Control, for example DFE-550TX)

System Requirements

System RequirementsFCC Class A; CE Class A; C-Tick; VCCI Class A; BSMI Class A; UL (UL1950); CSA (CSA950); TUV/GS (EN60950)

Electrical

AC Voltage Range100 to 240 V AC
Power Consumption10 W
Electrical Frequency50 to 60 Hz
Power Adaptor TypeInternal

Environmental

Operating Temperature0 to 40 °C
Operating Humidity5 to 90 %

Physical

Form FactorDesktop Unit
Case ColourBlack / Metalic Grey
LED Status IndicatorsPer device: Power • Per port: Link/Activity, 100Mbps speed
Width28.0 cm
Depth18.0 cm
Height4.4 cm
Weight2.8 kg

Key Features

PoE SupportedNo
Main ColourBlack
Switch TypeManaged
Switch Form FactorDesktop
LAN Port(s) Speed10/100
Number of LAN Port(s)24
PoE+ SupportedNo

Warranty

Warranty1 Year

Item Details

ManufacturerDLink
Manufacturer CodeDES-1024D/B
UPC790069246104
ConditionNew
