Dedicated 4-Port PoE Switch (41 W Budget) for Numerous Applications
Compliance with the 802.3af PoE standard supports up to 15.4 W on each PoE port. The total 41 W PoE power budget* for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.
Ideal for IP Surveillance - Up to 250 m Transmissions
With extend mode, the PoE transmission distance reaches up to 250 m**—perfect for IP Camera deployment in large areas.
Priority Video Quality Guaranteed
Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–2 when one-touch Priority Mode is on.
Intelligent Power Management
When total power consumption exceeds 41 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.
Durable Metal Casing
The interior components of TL-SF1008LP are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1008LP delivers switching performance you can depend on.
*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.
**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.

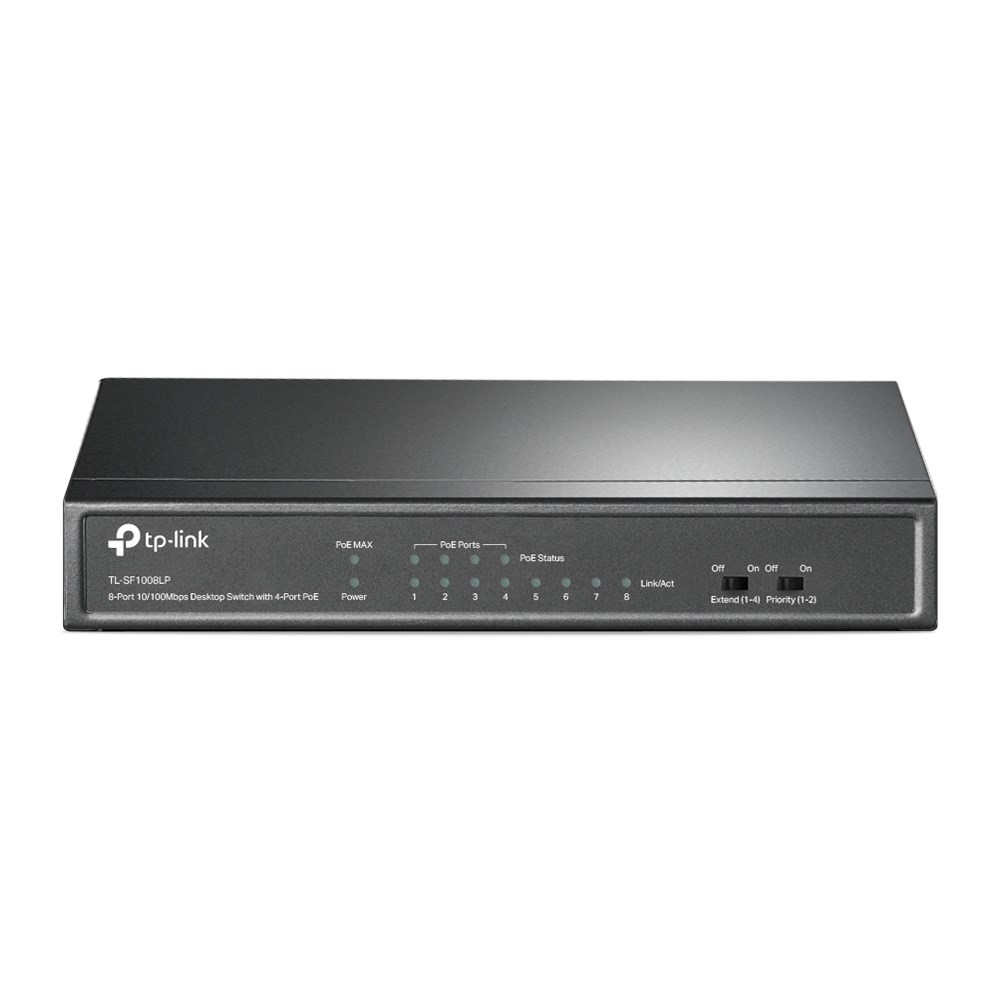

TP-Link TL-SF1008LP 8-Port PoE Desktop Switch
Performance
| MAC Addresses | 2 K |
Interfaces/Ports
| Network Speeds Supported | 10/100 Mbps |
| PoE Supported | Yes |
| Power over Ethernet (PoE) | 41W over ports 1~4 |
| Power over Ethernet (PoE) Standards | 802.3 af compliant |
| Number of Fixed Ports | 8 ports |
| Fixed Port Connector | RJ-45 |
| Fixed Port Speed | 10/100 Mbps |
System
| Certifications | FCC, CE, RoHS |
| Ethernet Switching Features | Compatible With IEEE 802.3af Compliant PDs Extend Mode Button (Ports 1-4) Priority Mode Button (Ports 1-2) Mac Address Auto-Learning and Auto-Aging IEEE802.3x Flow Control for Full-Duplex Mode and Backpressure for Half-Duplex Mode |
Electrical
| Power Adaptor Type | External |
| Power Requirements | 53.5V DC / 0.81A |
| Power Cord | Yes |
Environmental
| Heat Dissipation | 7.5 ~ 160.61 BTU/h |
| Operating Temperature | 0 ~ 40 °C |
| Operating Humidity | 10 ~ 90 % |
Physical
| Form Factor | Switch |
| In The Box | Switch Power Adapter Installation Guide |
| Width | 171 mm |
| Depth | 98 mm |
| Height | 27 mm |
| Weight | 0.35 kg |
Key Features
| Switch Type | Unmanaged |
| Switch Form Factor | Desktop |
| LAN Port(s) Speed | 10/100 |
| Number of LAN Port(s) | 8 |
| Number of PoE Ports | 4 |
| PoE+ Supported | No |
Warranty
| Warranty | 1 Year |
Item Details
| Manufacturer | TP-Link |
| Manufacturer Code | TL-SF1008LP |
| EAN | 6935364052775 |
| Condition | New |
