£25.99 ex. vat
£31.19 inc. vat
Share:
The TL-SF1016DS Fast Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1016DS can save up to 25% of the power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network. The rack-mount size metal case design combined with a safety certified internal power supply make the Switch the most robust product which is very cost-effective for a less than 16 user environment. Featuring non-blocking switching architecture,TL-SF1016DS forwards and filters packets at full wire-speed for maximum throughput. And IEEE 802.3x flow control for Full Duplex mode and back pressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1016DS work reliably.
This TL-SF1016DS Fast Ethernet Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. It also complies with the EU'S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled. The auto features of this fast ethernet switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.

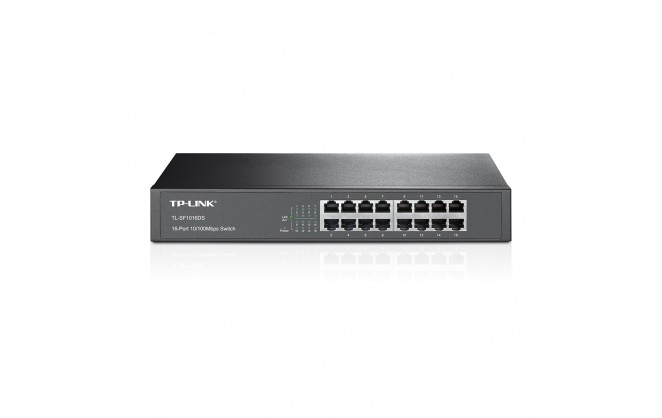

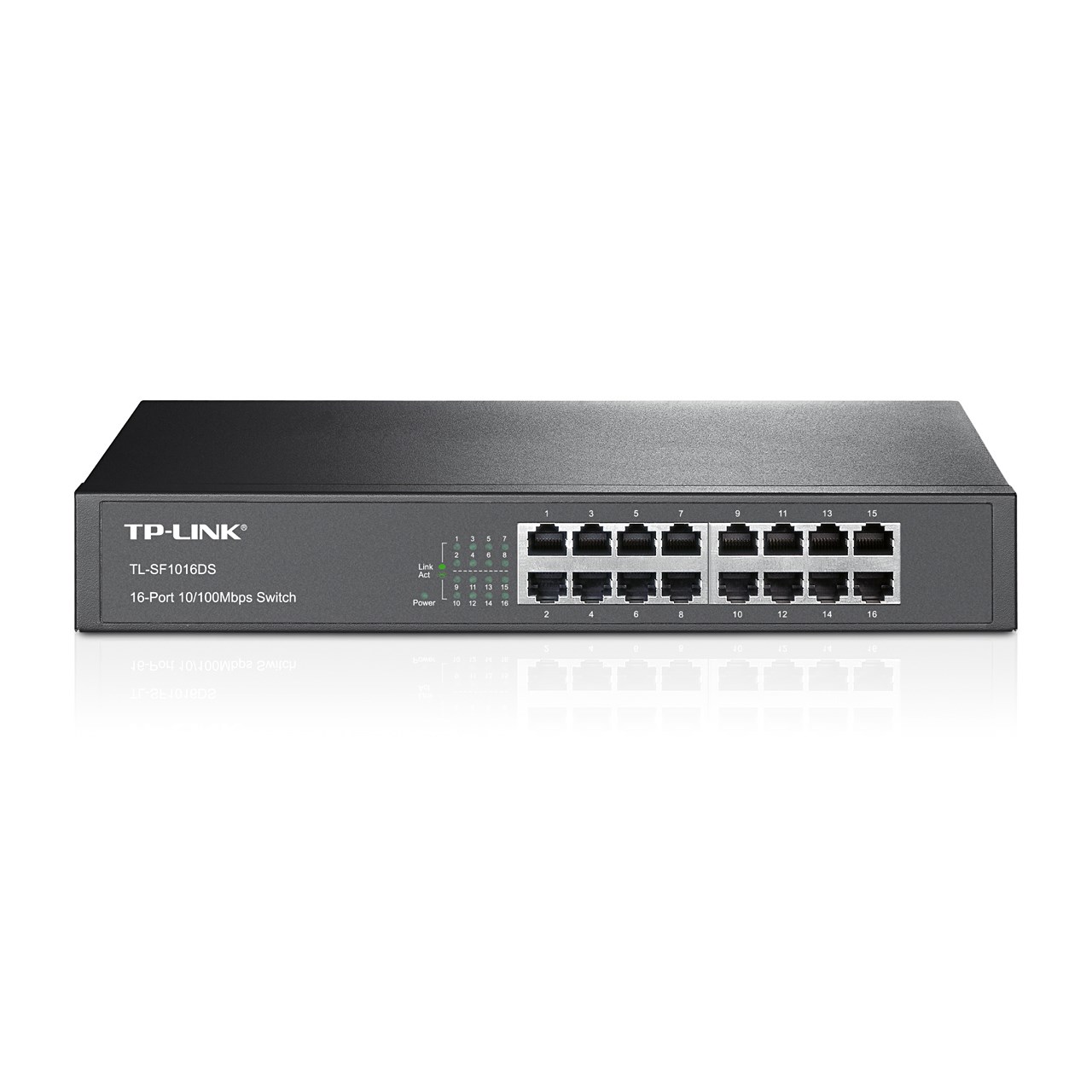

TP-Link TL-SF1016DS 16-Port Desktop Switch
Performance
| Backplane | 3.2 Gbps |
| MAC Addresses | 8,000 |
| Network Latency | 10Base-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ù STP (maximum 100m); 100Base-Tx: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ù STP (maximum 100m) |
| Packet Forwarding Rate | 148,800 pps |
| Port Bandwidth | 10/100 Mbps |
Interfaces/Ports
| Network Speeds Supported | 10/100 MBps |
| Full Duplex Capabilities | All ports via Auto-Negotiation |
| Number of Fixed Ports | 16 port(s) |
| Fixed Port Connector | RJ-45 |
| Fixed Port Speed | 10/100 Mbps |
Compliance
| Standards Compliance | IEEE802.3, 802.3u, 802.3x |
| Emissions | CE |
| Safety | FCC |
Electrical
| AC Voltage Range | 100 to 240 V AC |
| Electrical Frequency | 50 to 60 Hz |
| Power Adaptor Type | AC |
Environmental
| Operating Temperature | 0 to 40 °C |
| Operating Humidity | 10 to 90 % |
Physical
| Form Factor | Rackmount |
| LED Status Indicators | Power, Link/Act, 100Mbps |
| Width | 29.4 cm |
| Depth | 18.0 cm |
| Height | 4.4 cm |
Key Features
| PoE Supported | No |
| Switch Type | Unmanaged |
| Switch Form Factor | Desktop |
| LAN Port(s) Speed | 10/100 |
| Number of LAN Port(s) | 16 |
Warranty
| Warranty | 1 Year |
Item Details
| Manufacturer | TP-Link |
| Manufacturer Code | TL-SF1016DS |
| EAN | 6935364020880 |
| Condition | New |
