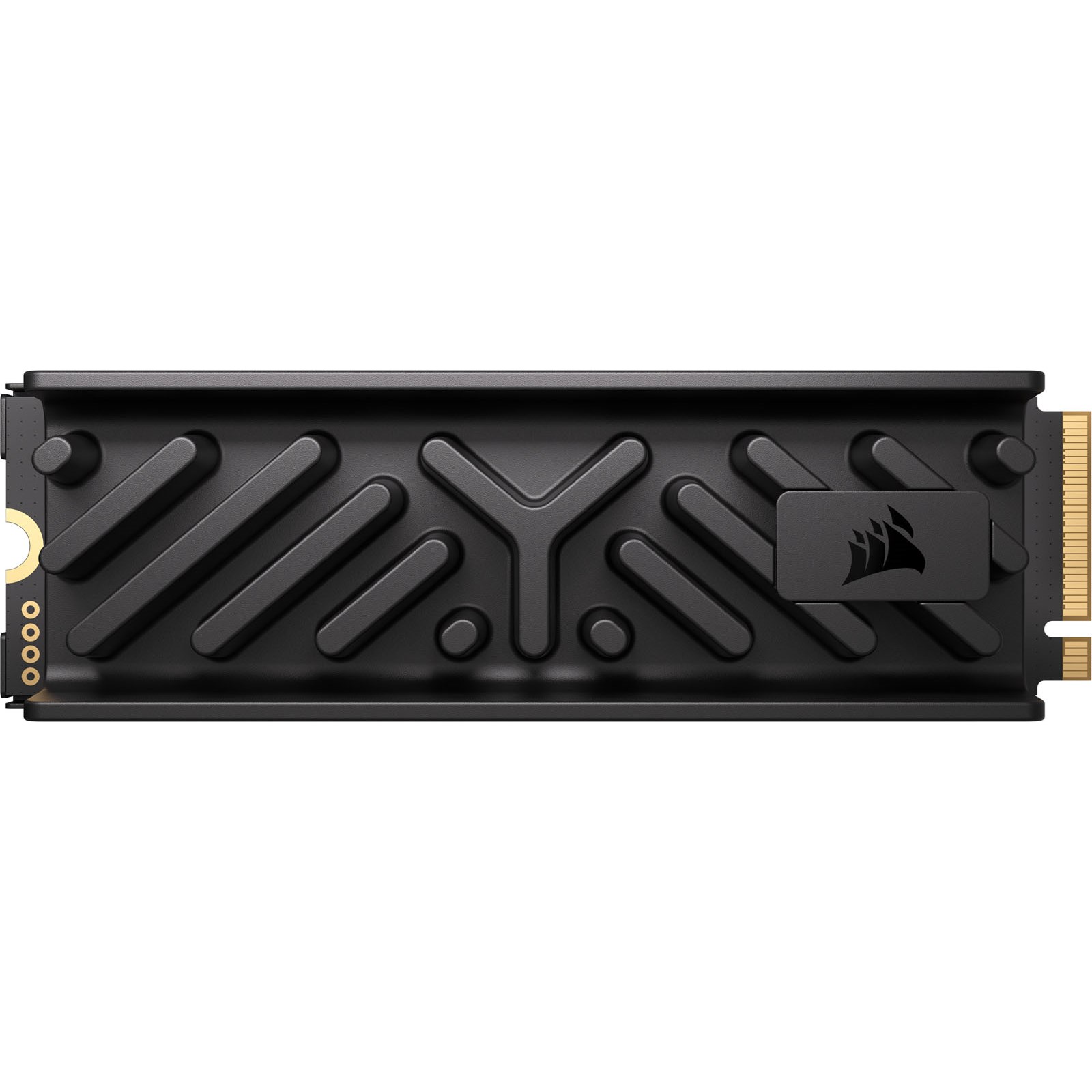

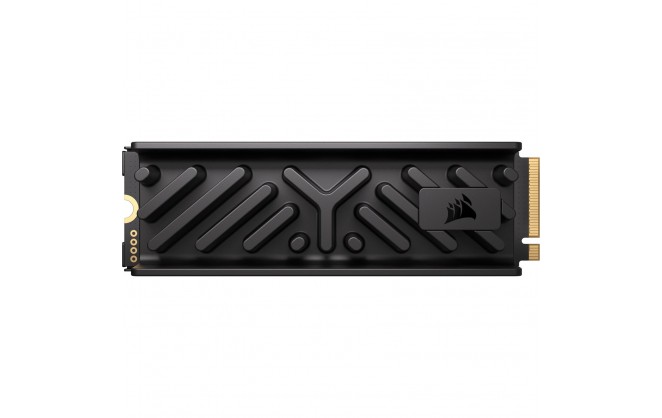

1TB Corsair MP700 Elite with Heatsink M.2 PCIe 5.0 NVMe Solid State Drive

Part Number: CSSD-F1000GBMP700EHS
Manufacturer: Corsair
Quickfind Code: 825497

Stock: In Stock

£118.49 ex. vat
£142.19 inc. vat

Product Features:

Condition: New
Capacity 1TB
Connection m.2
Form Factor PCI Express 5.0 x4 (NVMe)

+ Read More Information

Product Description

Experience the performance of PCIe 5.0 storage in your system with the MP700 ELITE with Heatsink. Offering up to 10,000MB/sec sequential read and up to 8,500MB/sec sequential write speeds*, you’ll see amazingly fast boot, load, and save times as you play the latest games and work with the largest files. The MP700 ELITE is easily and quickly installed directly into your motherboard using the M.2 2280 form factor, with a pre-attached heatsink ensuring optimal performance. Between the massively high-bandwidth NVMe 2.0 interface and high-density 3D TLC NAND flash memory, the MP700 ELITE offers significantly higher performance than possible with previous generation drives.

The MP700 ELITE is exceedingly easy to install, fitting directly into your motherboard thanks to its M.2 2280 form factor. Use your motherboard’s integrated cooler or a third-party M.2 2280 SSD cooler for optimal operation. Manage your drive with CORSAIR SSD Toolbox software, enabling advanced drive controls from your desktop, including secure erase and firmware updates.

When playing compatible games, Microsoft DirectStorage bypasses the CPU so that the MP700 ELITE can communicate directly with your graphics card, resulting in significantly reduced load times. The MP700 ELITE is backward compatible with PCIe 4.0 and PCIe 3.0 platforms, so you can still enjoy impressively fast speeds on a wide variety of systems**. With endurance up to 1,200TBW and a comprehensive five-year warranty, the MP700 ELITE delivers cutting-edge storage performance for years to come.

*Performance and endurance vary by capacity.
**Reduced performance on PCIe Gen 4 and Gen3.

Main Features

High-performance PCIe 5.0 x4 NVMe 2.0 interface
Up to 10,000MB/sec sequential read speeds
Load games, boot windows, open and transfer files, all faster than ever
Microsoft DirectStorage compatible
High-density 3D TLC NAND memory
Strong endurance up to 1,200TB Written
Compact M.2 2280 form factor for desktop and laptop PCs
Pre-installed aluminum heatsink
Backward compatible with PCIe Gen4 and Gen3
CORSAIR SSD Toolbox software
Five-year warranty

Technical Specification

1TB Corsair MP700 Elite with Heatsink M.2 PCIe 5.0 NVMe Solid State Drive

Storage

Solid State Capacity	1 TB
Storage Type	SSD
Drive Size	M.2-2280
Memory Type	3D TLC
Drive Capacity	1 TB

Performance

Read Speed	Up to 10,000 MB/s
Write Speed	Up to 8,500 MB/s
4K Random Read (AS SSD)	Up to 1,300 K IOPS
4K Random Write (AS SSD)	Up to 1,400 K IOPS
Data Storage Life	600 TBW
Mean Time Between Failure (MTBF)	1,600,000 hours

Electrical

Electrical Power Consumption	5.9 W
Electrical Power Consumption Standby	< 50 mW

Environmental

Operating Temperature	0 ~ 70 °C
Storage Temperature	-40 ~ +85 °C
Operating Humidity	90 % RH
Vibration (Non-Operating)	20 ~ 80 Hz
Shock (Non Operating)	1500 G

Physical

Form Factor	Solid State Drive
Enclosure type	Internal
Case Colour	Black
In The Box	1 x 1TB SSD
Width	23 mm
Depth	80 mm
Height	17.5 mm
Weight	47.87 g

Warranty

5 Years

Key Features

Interface Type	PCI Express 5.0 x4 NVMe
Solid State Drive	Yes
Disk Form Factor	M.2 2280
Read IOPS (4K)	1300 k IOPS
Drive Interface Type	PCIe 5.0 x4 NVMe
Write IOPS (4K)	1400 k IOPS
Intended Use	Desktop
Power Requirement (auto)	5 W
PS5 Compatible	No
Create Your Own Gaming PC (CCL)	Yes
