Performance nothing short of exhilarating, the FireCuda® 530 redefines speed — up to 7,300 MB/s catalyses PCIe® Gen4 power. With transfer rates 2x faster than PCIe Gen3 and 12x faster than SATA SSDs, this SSD is built for sustained abuse and accelerated gaming.
FireCuda 530 dominates the SSD lineup, delivering:
Up to 2x faster than PCIe Gen3 NVMe™ SSDs and up to 12x faster than SATA SSDs — the FireCuda 530 redefines speed.
NVMe PCIe Gen4 extreme speeds generate extra heat. That’s why Seagate partnered with EKWB — the leaders in heat management — to develop FireCuda 530’s custom heatsink. Built from a high-grade aluminium block with a finely textured anodized finish to help maximise cooling efficiency, this built-in heatsink helps minimise thermal throttling while maximising peak performance for longer periods of time.
Low-profile heatsink design allows for installation in tighter spaces, and premium dark gunmetal grey anodization creates additional micropores in the material surface to promote cooling properties.
Designed to perform under heavy use and tough enough to go the distance with:
Push your rig to its limit — the FireCuda 530 is built with a Seagate-validated E18 controller and the latest 3D TLC NAND for the most advanced speed and durability.
We’ve Got Your Back
When the unexpected happens — like water damage or natural disaster —Rescue Services help you defend against data loss and retrieval costs, so you can rest easier.1
Seagate makes it easy to add new drives to your computer and monitor their health and performance with the free DiscWizard™ and SeaTools™ software. Easily clone your current drive to your new Seagate drive, create and format partitions, transfer data, and back up data with DiscWizard — and then seamlessly monitor drive health, performance, and firmware updates using SeaTools.

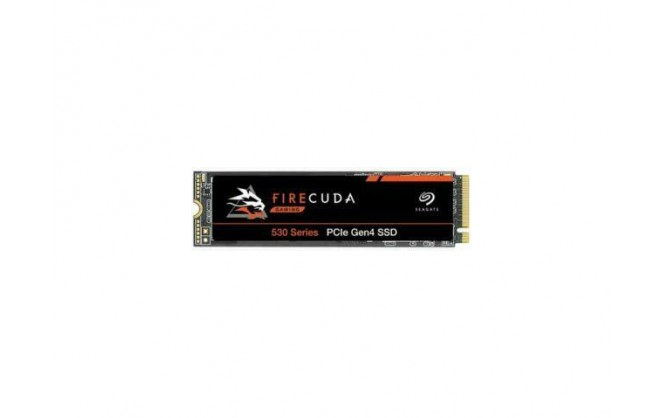

Seagate FireCuda 530 4TB M.2-2280 PCIe 4.0 x4 NVMe
Storage
| Solid State Capacity | 4 TB |
| Drive Size | M.2 2280 |
| Memory Type | SSD |
| Memory Size | 4 TB |
| Memory Package | 3D TLC |
Performance
| Read Speed | Up to 7,300 MB/s |
| Write Speed | Up to 6,900 MB/s |
| 4K Random Read (AS SSD) | Up to 1,000,000 IOPS |
| 4K Random Write (AS SSD) | Up to 1,000,000 IOPS |
| Data Storage Life | 5,100 TBW |
| Mean Time Between Failure (MTBF) | 1,800,000 hours |
Interfaces/Ports
| Interface Type | PCIe Gen4 x4 NVMe |
System Requirements
| System Requirements | M.2 (M key) slot, PCIe G4 ?4 interface (backwards compatible with PCIe G3 interface) |
| Operating Systems Supported | Windows 10 Linux |
Electrical
| Electrical Power Consumption | 8.4 W |
| Electrical Power Consumption Standby | 25 mW |
Environmental
| Operating Temperature | 0 ~ 70 °C |
| Storage Temperature | -40 ~ +85 °C |
| Shock (Non Operating) | 1,500 G |
Physical
| Form Factor | Solid State Drive |
| Enclosure type | Internal |
| Case Colour | Black |
| In The Box | 4TB SSD |
| Width | 22.15 mm |
| Depth | 80.15 mm |
| Height | 3.58 mm |
| Weight | 10.6 g |
Warranty
| Warranty | 5 Years |
Key Features
| Disk Capacity | 4 TB |
| Solid State Drive | Yes |
| Disk Form Factor | M.2 2280 |
Item Details
| Manufacturer | Seagate |
| Manufacturer Code | ZP4000GM3A013 |
| EAN | 8719706420440 |
| UPC | 763649161777 |
| Condition | New |
