General | |
|---|---|
| Device Type | Solid state drive - internal |
| Capacity | 1 TB |
| NAND Flash Memory Type | 3D triple-level cell (TLC) |
| Form Factor | M.2 2280 |
| Interface | PCIe 4.0 x4 (NVMe) |
| Features | 24x7 availability, NVM Express (NVMe) 1.3 |
| Width | 22.15 mm |
| Depth | 80.15 mm |
| Height | 3.58 mm |
| Weight | 8.5 g |
| Bundled with | 3 years Seagate Rescue Data Recovery |
Performance | |
| Drive Writes Per Day (DWPD) | 0.7 |
| SSD Endurance | 1400 TB |
| Internal Data Rate | 5000 MBps (read) / 4400 MBps (write) |
| 4KB Random Read | 760000 IOPS |
| 4KB Random Write | 700000 IOPS |
Reliability | |
| MTBF | 1,800,000 hours |
| 24x7 Operation | Yes |
| Non-Recoverable Errors | 1 per 10^16 |
Expansion & Connectivity | |
| Interfaces | 1 x PCI Express 4.0 x4 (NVMe) - M.2 Card |
| Compatible Bay | M.2 2280 |
Power | |
| Power Consumption | 6.5 Watt (active configurable max) ¦ 20 mW (idle) |
Software & System Requirements | |
| Software Included | IronWolf Health Management |
| OS Required | Linux, Windows 10 |
Miscellaneous | |
| Localisation | Worldwide |
Dimensions & Weight (Shipping) | |
| Shipping Width | 10.9 cm |
| Shipping Depth | 15.5 cm |
| Shipping Height | 2.4 cm |
| Shipping Weight | 63 g |
Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 70 °C |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 85 °C |
| Shock Tolerance (non-operating) | 1500 g @ 0.5 ms |

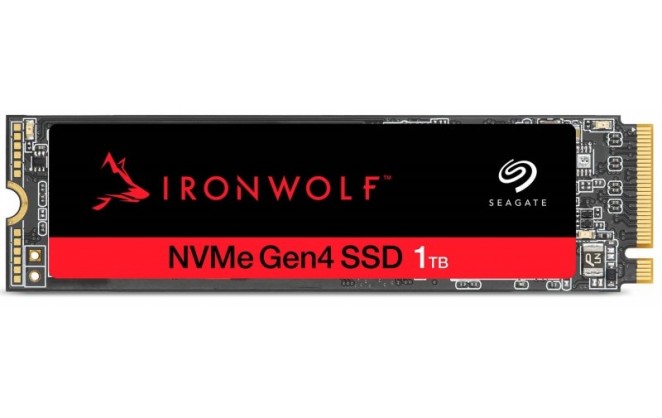

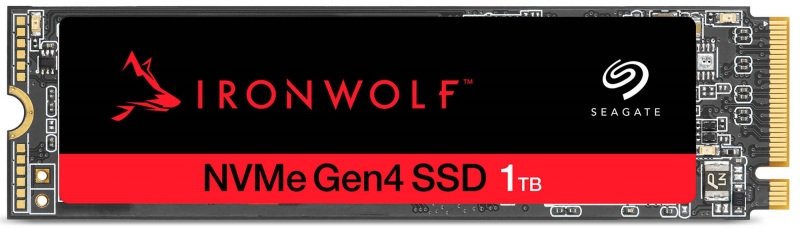

Seagate IronWolf 525 1TB NAS NVMe Gen4 SSD
General | |
|---|---|
| Device Type | Solid state drive - internal |
| Capacity | 1 TB |
| NAND Flash Memory Type | 3D triple-level cell (TLC) |
| Form Factor | M.2 2280 |
| Interface | PCIe 4.0 x4 (NVMe) |
| Features | 24x7 availability, NVM Express (NVMe) 1.3 |
| Width | 22.15 mm |
| Depth | 80.15 mm |
| Height | 3.58 mm |
| Weight | 8.5 g |
| Bundled with | 3 years Seagate Rescue Data Recovery |
Performance | |
| Drive Writes Per Day (DWPD) | 0.7 |
| SSD Endurance | 1400 TB |
| Internal Data Rate | 5000 MBps (read) / 4400 MBps (write) |
| 4KB Random Read | 760000 IOPS |
| 4KB Random Write | 700000 IOPS |
Reliability | |
| MTBF | 1,800,000 hours |
| 24x7 Operation | Yes |
| Non-Recoverable Errors | 1 per 10^16 |
Expansion & Connectivity | |
| Interfaces | 1 x PCI Express 4.0 x4 (NVMe) - M.2 Card |
| Compatible Bay | M.2 2280 |
Power | |
| Power Consumption | 6.5 Watt (active configurable max) ¦ 20 mW (idle) |
Software & System Requirements | |
| Software Included | IronWolf Health Management |
| OS Required | Linux, Windows 10 |
Miscellaneous | |
| Localisation | Worldwide |
Dimensions & Weight (Shipping) | |
| Shipping Width | 10.9 cm |
| Shipping Depth | 15.5 cm |
| Shipping Height | 2.4 cm |
| Shipping Weight | 63 g |
Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 70 °C |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 85 °C |
| Shock Tolerance (non-operating) | 1500 g @ 0.5 ms |
